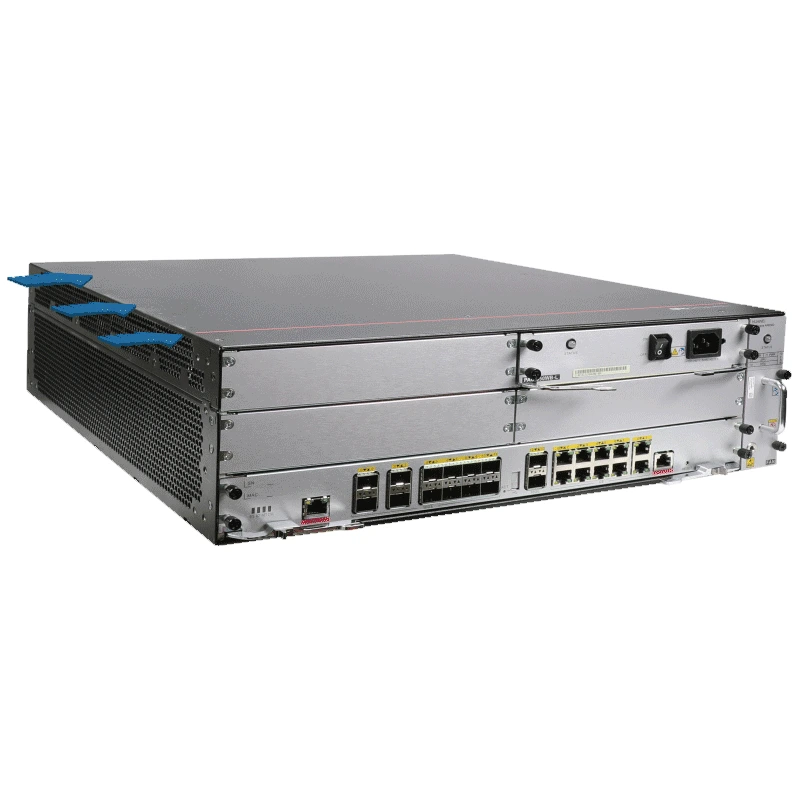

Enterprise Routers AR6300 With 02115640 2*SRU slot, 4*SIC slot
● Model No.:AR6300
● Size: 230 mm x 590 mm x 655 mm
● Manage ports:1×RJ45 Console、1×USB 2.0
● Place of Origin: Guangdong, China
● Core strengths:Dual controller redundancy, 14 × 10GE optical+10 × GE electrical, 4 × SIC+8 × WSIC+6 × XSIC expansion, CPU+NP heterogeneous forwarding, 280Mpps extreme forwarding, ≥ 30Gbps IPSec, dual power redundancy, routing/switching/security/SD-WAN integration
● Warranty: 1years
● MOQ: 1 pieces
Application scenarios
1. Core router for medium-sized enterprises: In medium-sized enterprises with 500-1000 employees, it can serve as a network core router, connecting to the wide area network upwards and aggregating multiple access switches downwards. Its modular design allows enterprises to gradually expand interface cards and processing capabilities according to business development, protecting investments.
2. Core node of SD-WAN networking: Built in SD-WAN function, it can serve as the core node (hub) of enterprise SD-WAN network, realizing intelligent routing and optimized connection between branches and headquarters, and between branches. Supports 20 Gbps SD-WAN forwarding performance (1400 bytes), capable of supporting the traffic aggregation needs of large-scale SD-WAN networking.
3. Multi service convergence node: integrates routing, switching VPN、 Integrating multiple functions such as security, voice, MPLS, etc. Multiple business cards such as 5G/LTE, E1/T1, voice, and firewall can be expanded through 4 SIC slots, 2/6 WSIC slots, and 2/4 XSIC slots to meet the diversified business development needs of enterprises in the future.
4.5000 Terminal Scale Park Exit Gateway: In Huawei's official networking solution, AR6280 is explicitly recommended as the exit gateway device for 5000 terminal scale park networks, connected to S7700/S7730 series switches, providing NAT, DHCP, WAN access and other exit features.
5. Government/finance/large branch aggregation node: In scenarios such as government private networks, financial backbone networks, and large enterprise branches, it can serve as an aggregation node, providing advanced features such as IPsec VPN encryption (7.5 Gbps IPsec performance) and MPLS VPN to ensure data transmission security.
Core functional characteristics
- 1. Routing and Switching
- Supports IPv4/IPv6 dual stack, static routing RIP、OSPF、BGP、IS‑IS
- Support MPLS, L3VPN, VPLS, EVPN, QinQ, VLAN, port aggregation, and stacking
- Support NAT, PAT, port mapping, traffic control (QoS), ACL access control
- 2. VPN and Security
- Supports various VPNs such as IPSec, GRE, L2TP, SSL VPN, EVPN, etc
- Built in firewall, URL filtering, Intrusion Prevention (IPS), AAA authentication, URPF attack prevention
- Support management of plane security, SSH, SNPv3, NETCONF/YANG encryption management
- 3. High reliability and operation and maintenance
- Support dual controller, dual forwarding, dual power redundancy, hot swappable board
- Support high reliability features such as VRRP, BFD, FRR, NSR, GR, etc
- Support ZTP zero configuration, USB opening, iMaster NCE centralized control
- Support multiple operation and maintenance methods such as Web, CLI, SNMP, NETCONF, etc
- 4. Multi WAN and SD-WAN
- Support multi WAN load balancing, intelligent routing, link backup, 5G/4G backup
- Fully supports Huawei SD-WAN solutions, including intelligent traffic scheduling, application recognition, and SLA guarantee
- Compatible with cloud platforms (Huawei Cloud, AWS, Azure, etc.), supporting cloud edge collaboration
Detailed description
| Item | Specification |
|---|---|
| Installation type | Rack |
| Chassis height [U] | 3 U |
| Dimensions without packaging (H x W x D) [mm(in.)] |
|
| Dimensions with packaging (H x W x D) [mm(in.)] | 230 mm x 590 mm x 655 mm (9.06 in. x 23.23 in. x 25.79 in.) |
| Weight with packaging [kg(lb)] | 14.27 kg (31.45 lb) |
| Weight without packaging [kg(lb)] | 11 kg (24.25 lb) |
| Number of service board slots | 10 |
| MIC slots (default/maximum) | 0/0 |
| SIC slots (default/maximum) | 4/4 |
| WSIC slots (default/maximum) | 2/8 |
| XSIC slots (default/maximum) | 4/4 |
| Redundant MPUs | 1:1 |
| RPS input | Not supported |
| PoE | Not supported |
| IP rating | IP20 |
| MTBF [years] | 42.61 years |
| MTTR [hours] | 2 hours |
| Availability | 0.9999962934 |
| Power supply mode | Pluggable AC/HVDC and pluggable DC |
| Number of power modules | 2 |
| Rated input voltage [V] |
|
| Input voltage range [V] |
|
| Maximum input current [A] | Depending on the power modules that is used |
| Maximum output power [W] | Depending on the power modules that is used |
| Redundant power supply |
|
| Types of fans | Pluggable |
| Number of fan modules | 1 |
| Heat dissipation mode | Air cooling |
| Airflow | Left-to-right airflow |
| Noise at normal temperature (acoustic power) [dB(A)] | 66.1 dB(A) |
| Long-term operating temperature [°C(°F)] |
0°C to 45°C (32°F to 113°F) NOTE:
When the altitude is 1800–5000 m (5906–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH, non-condensing |
| Long-term operating altitude [m(ft.)] | < 5000 m (16404.2 ft.) |
| Storage temperature [°C(°F)] | -40°C to +70°C (-40°F to +158°F) |
| Overtemperature alarm | Supported |
