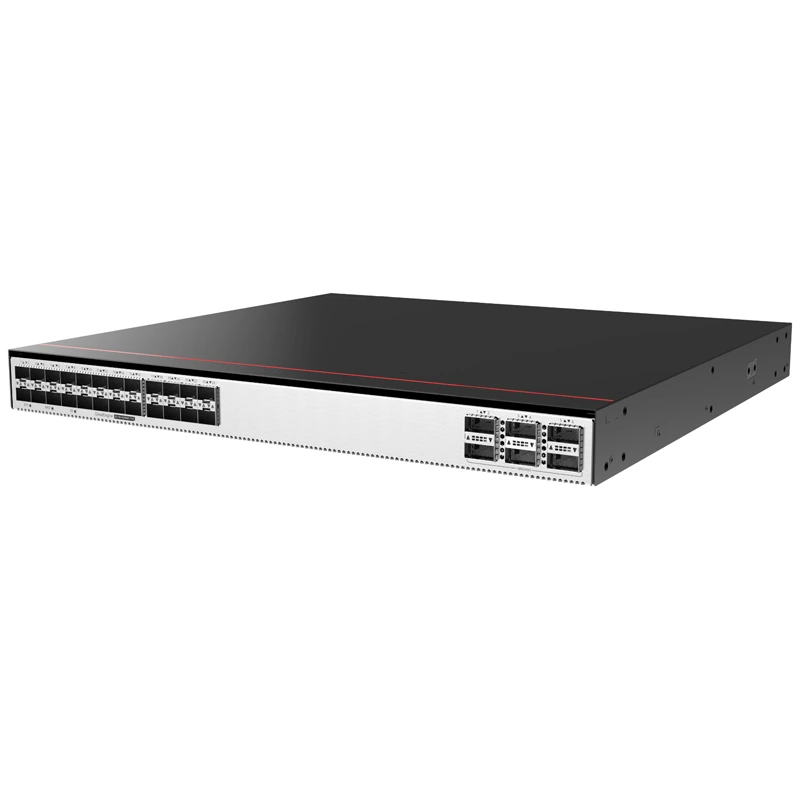

Enterprise Switch S6330-H24X6C Network Ethernet Switch with 6*40ge Qsfp28 Ports
● Model No.: S6330-H24X6C
● size: 442*420*43.6mm
● Port details: 24*10ge SFP+ Ports, 6*40ge Qsfp28 Ports
● Place of use: campus network cores or data center access layers
● Warranty: 1 years
● MOQ: 1 pieces
Application scenarios
Carrier Metropolitan Area Network Aggregation: Serves as an aggregation layer device in a carrier's metropolitan area network, aggregating access layer traffic before uploading it to the core network.
Enterprise Campus Aggregation/Access: Serves as an aggregation layer device in large campus networks such as enterprise campuses, universities, and government facilities, or aggregates traffic from access layer switches before uploading it to the core network.
Small and Medium-Sized Campus Core: Serves directly as a core switch in small and medium-sized campuses, carrying all internal services.
Introduction
Core specifications
Port configuration: 24 10G SFP+optical ports+6 40G QSFP28 optical ports, flexible networking is no problem.
Performance: Supports high throughput and low latency, and is stable in handling large traffic and high concurrency.
Dimensions: 43.6mm high x 442mm wide x 420mm deep (1.72 inches x 17.4 inches x 16.54 inches).
Typical scenarios: Enterprise park network core, data center access layer, high-density access layer.
Brief summary
It belongs to the Huawei S6300-H series, designed specifically for enterprise campus networks, with a focus on high-performance and high-density access, making it a good choice for building stable and efficient networks.
Parameters
| Item | Specification |
| Dimensions without packaging (H x W x D) [mm(in.)] | Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.40 in. x 16.54 in.) |
| Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm | |
| x 442.0 mm x 446.0 mm (1.72 in. x 17.40 in. x 17.56 in.) | |
 Dimensions with packaging (H x W x D) [mm(in.)] |
175 mm x 650 mm x 550 mm (6.89 in. x 25.59 in. x 21.65 in.) |
 Chassis height [U] |
1 U |
 Weight without packaging [kg(lb)] |
5.62 kg (12.39 lb) |
 Weight with packaging [kg(lb)] |
8.9 kg (19.62 lb) |
 Typical power consumption [W] |
149 W |
             Typical heat dissipation [BTU/hour] |
508.4 BTU/hour |
| Maximum power consumption [W] | 254 W |
| Maximum heat dissipation [BTU/hour] | 866.67 BTU/hour |
| MTBF [year] | 62.27 year |
| MTTR [hour] | 2 hour |
| Availability | >0.99999 |
| Noise at normal temperature (acoustic power) [dB(A)] | 65 dB(A) |
| Noise at normal temperature (acoustic pressure) [dB(A)] | 52 dB(A) |
| Number of card slots | 0 |
| Number of power slots | 2 |
| Number of fans modules | 4 |
| Redundant power supply | 1+1 |
| Pluggable AC and DC power modules can be used together in the same switch. | |
| Long-term operating temperature [°C(°F)] | –5°C to +45°C (23°F to 113°F) at an altitude of 0 to 1800 m (0 to 5905.51 ft.) |
| Restriction on the operating temperature variation rate [°C(°F)] | When the altitude is 1800–5000 m (5906–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the |
| altitude increases by 220 m (722 ft.). | |
| Devices cannot start when the temperature is lower than 0°C (32°F). | |
| When the QSFP-100G-ER4 optical module is used, the operating temperature ranges from -5°C to +40°C (23°F to 104°F). | |
| Storage temperature [°C(°F)] | –40°C to +70°C (–40°F to +158°F) |
| Long-term operating relative humidity [RH] | 5% to 95%, noncondensing |
| Long-term operating altitude [m(ft.)] | 0–5000 m (0–16404 ft.) |
| Storage altitude [m(ft.)] | 0–5000 m (0–16404 ft.) |
| Power supply mode | Pluggable power supply |
| Rated input voltage [V] | AC input: 100 V AC to 240 V AC; 50/60 Hz |
| High-voltage DC input: 240 V DC | |
| DC input: –48 V DC to –60 V DC | |
| Input voltage range [V] | AC input: 90–290 V AC; 45–65 Hz |
| High-voltage DC input: 190 V DC to 290 V DC | |
| DC input: -38.4 V DC to -72 V DC | |
| Maximum input current [A] | The current specifications depend on the pluggable power modules in use. For details, see the related power module specifications. |
| Memory | 4 GB |
| Flash memory | The physical space is 2 GB. You can run the display version command to view the actual available space. |
| Console port | RJ45 |
| Eth Management port | RJ45 |
| USB | Supported |
| RTC | Supported |
| RPS input | Not supported |
| Service port surge protection [kV] | - |
| Power supply surge protection [kV] | AC power module configured: ±6 kV in differential mode, ±6 kV in common mode |
| DC power module configured: ±2 kV in differential mode, ±4 kV in common mode | |
| Types of fans | Pluggable |
| Heat dissipation mode | Air cooling and intelligent speed adjustment |
| Airflow direction | Air intake from the front and air exhaust from the rear |
| PoE | Not supported |
