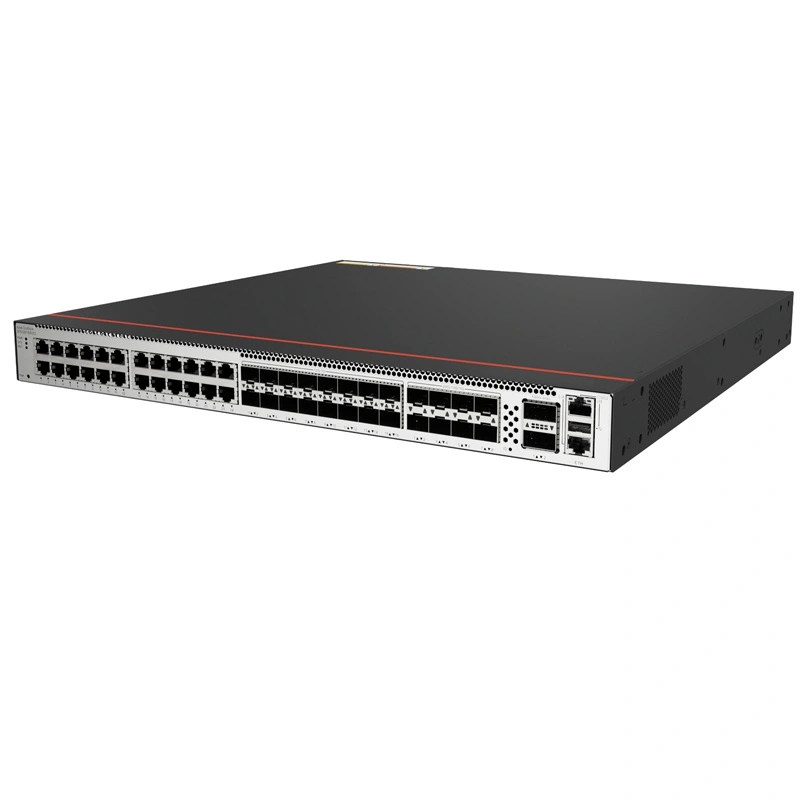

Ethernet Switch S6750-S24T16X8Y2CZ 100G Network Switch with 50 ports
CloudEngine S6750-S24T16X8Y2CZ is a new generation high-performance three-layer box switch launched by Huawei for enterprise park aggregation/core and data center access scenarios. It belongs to the S6750-S series optoelectronic hybrid flagship model. Equipped with a fully programmable chip architecture, it innovatively integrates 24 Gigabit Ethernet ports, 16 10G optical ports, 8 25GE high-speed optical ports, and 2 40/100GE uplink ports, taking into account traditional Gigabit terminal access, 10G/25GE high-speed interconnection, and 100GE backbone expansion capabilities. It supports core features such as VXLAN virtualization, MACsec hardware encryption, and intelligent cloud operation and maintenance, and can meet the full rate access, multi service carrying, and future bandwidth smooth upgrade needs of medium and large industrial parks, cloud data centers, IoT fusion networking and other scenarios. It is suitable for digital networking scenarios in multiple industries such as government, finance, energy, universities, and healthcare
product Information
● Model No.: S6750-S24T16X8Y2CZ
● Size: 442*420*43.6mm
● Port details: 24*10/100/1000BASE-T ports, 16*10GE SFP+ ports, 8*25GE SFP28 ports, 2*100GE QSFP28 ports
● Main features: IPv4/IPv6 dual stack, VXLAN, BGP EVPN, MACsec, Telemetry, IFIT flow detection, fine-grained QoS, OPS open programmability, 802.1X/ACL/VLAN secure isolation
● Application scenarios: Medium to large scale industrial parks, cloud data centers, and IoT integrated networking
● Warranty: 1 years
● MOQ: 1 pieces
Introduction
Optoelectronic hybrid full rate port: 24 x GE electrical port+16 x 10GE+8 x 25GE+2 x 100GE, one-stop compatible with gigabit terminals, 10G/25G high-speed equipment, and 100G backbone, suitable for full field networking.
High performance line speed forwarding: 25.6Tbps switching capacity+1476Mpps packet forwarding rate, all ports are unobstructed, supporting massive terminals and high bandwidth business concurrency.
High reliability redundancy design: dual power supply+hot swappable fan, supports iStack/BFD/VRRP, millisecond level fault switching, ensuring 7 × 24-hour business stability.
Full dimensional security protection: Full port MACsec encryption, combined with 802.1X/ACL/VLAN isolation, meets the high security compliance requirements of finance, government and other industries.
Intelligent cloud based operation and maintenance: supports Telemetry/IFIT real-time detection, visual monitoring+one click upgrade, simplifies operation and maintenance, and reduces costs.
Virtualization multi service hosting: VXLAN+SVF achieves multi tenant isolation, fine QoS and network slicing, and one network hosts multiple services such as office, video, and IoT.
Flexible expansion and upgrade: 2 expansion slots, on-demand expansion of optical ports to protect investment and smoothly cope with future bandwidth growth.
Parameters
| Product Model | CloudEngine S6750-S16X8YZ | CloudEngine S6750-S16X10Y2CZ | CloudEngine S6750-S24T16X8Y2CZ |
| Forwarding Performance | 450 Mpps | 450 Mpps | 450 Mpps |
| Switching Capacity2 | 920 Gbps/2.32 Tbps | 1.42 Tbps/2.32 Tbps | 968 Gbps/2.32 Tbps |
| Fixed Ports | 16 x 10GE SFP+ ports + 8 x 25GE SFP28 ports | 16 x 10GE SFP+ ports + 10 x 25GE SFP28 ports + 2 x 40GE/100GE QSFP28 ports | 24 *10M/100M/1000M Base-T Ethernet ports + 16 x 10GE SFP+ ports + 8 x 25GE SFP28 ports + 2 x 40GE/100GE QSFP28 ports |
| Expansion Slots | Two expansion slots | ||
| Power Supply Type | 1+1 backup | ||
| MAC Features | MAC address auto-learning and aging | ||
| Static, dynamic, and blackhole MAC address entries | |||
| Packet filtering based on source MAC addresses | |||
| MAC address learning limiting based on ports and VLANs | |||
| VXLAN Features | Distributed and centralized VXLAN gateways | ||
| BGP EVPN | |||
| VXLAN configuration through NETCONF | |||
| VXLAN route switching | |||
| iPCA Quality Awareness | Direct marking of service packets to obtain real-time statistics about dropped packets and packet loss rate | ||
| Measurement of the dropped packets and packet loss rate on Layer 2/Layer 3 devices and networks | |||
| QoS | Traffic classification based on information from the link layer to the application layer | ||
| Complete queue scheduling and congestion control algorithms | |||
| Accurate multi-level scheduling for data flows | |||
| Hardware-based low-latency QoS queues for multicast packets | |||
| Interoperability | VBST (compatible with PVST/PVST+/RPVST) | ||
| LNP (similar to DTP) | |||
| VCMP (similar to VTP) | |||
