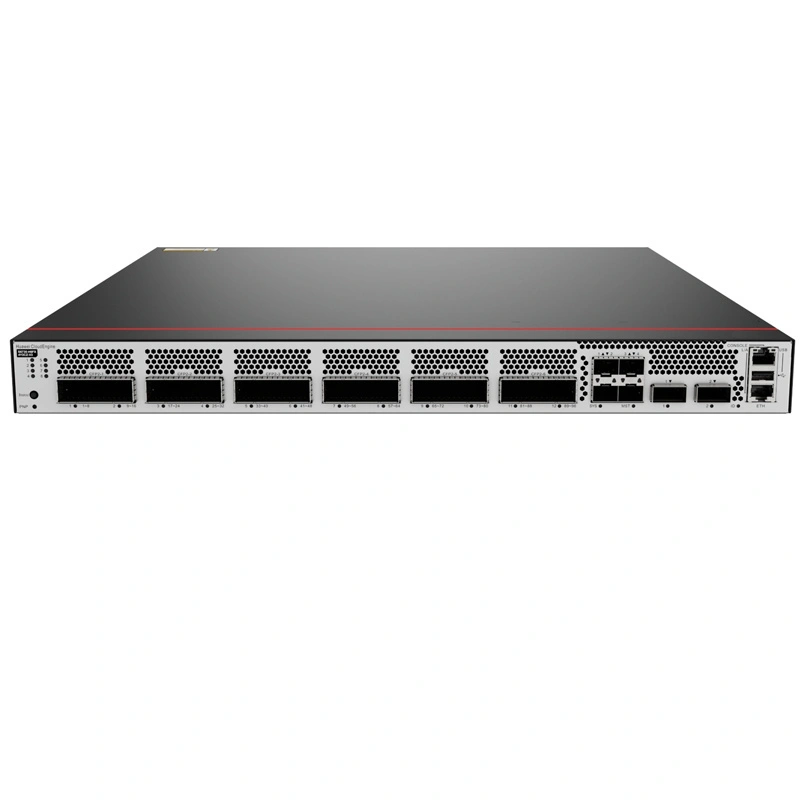

Enterprise Switch S6730-H6FX4Y2CZ-V2 Ethernet Core Switch with 6*CFP2 PEN ports
S6730-H6FX4Y2CZ-V2 is a PEN (passive Ethernet network) central switch for the core/convergence of Ethernet all-optical parks. It focuses on ultra wide passive optical access, 10 gigabit optical fiber access, simple operation and maintenance, and is suitable for colleges and universities, large enterprise parks, medical care and other scenes requiring high-density 10 gigabit+long-distance passive transmission
product Information
● Model No.: S6730-H6FX4Y2CZ-V2
● Size: 442*420*43.6mm
● Port details: 6*CFP2 PEN ports 4*25GE SFP28 ports, 2*100GE QSFP28 ports
● Main features: PEN passive optical architecture, one network multi-purpose, AI energy saving, on-board AC, intelligent operation and maintenance
● Application scenarios: Universities, large enterprise parks, medical treatment, etc
● Warranty: 1 years
● MOQ: 1 pieces
Introduction
6-port PEN ultra wide passive optical downlink: a single CFP2 port of 160G can expand 16 10 gigabit channels, and 96 10 gigabit points can be expanded for 6 ports. The bandwidth does not converge, and the end enjoys exclusive access to 10 gigabit optical fiber.
Minimal deployment of passive optical architecture: no active splitter is required, optical fiber is directly connected to the remote module, the deployment cost is reduced by 40%+, the maintenance points are reduced, and it is suitable for long-distance/multi floor passive coverage.
4 × 25GE+2 × 100GE elastic uplink: 25GE docking convergence/server, 100GE uplink core, bandwidth expansion on demand, adapting to large traffic uplink and future expansion.
Deep integration of wired and wireless: built-in on-board AC manages a large number of APs, supports SVF vertical virtualization, business travel, unified control of wired/wireless/passive optical networks, and simplifies operation and maintenance.
High reliability+full stack security: redundant power supply/fan, supporting ERPS 50ms ring network protection; MACsec encryption, NAC access and ARP defense meet the requirements of equal protection 2.0 compliance.
Green energy saving and cost reduction: the single port power consumption of the remote module is less than 1W. With the AI tidal energy saving algorithm, the energy consumption of the whole network is reduced by 20%+, and the long-term operation and maintenance cost is lower.
Parameters
|
Chassis material
|
Metal
|
|
Height[mm]
|
43.6 mm
|
|
Depth[mm]
|
420.0 mm
|
|
Wide[mm]
|
442.0 mm
|
|
Chassis height[U]
|
1
|
|
Weight with packaging[kg(lb)]
|
9.38 kg (20.68 lb)
|
|
Weight without packaging[kg(lb)]
|
6.66 kg (14.68 lb)
|
|
Maximum power consumption[W]
|
281
|
|
Typical power consumption[W]
|
234
|
|
Heat dissipation mode
|
Air cooling for heat dissipation, intelligent fan speed adjustment
|
|
Maximum heat dissipation[BTU/hour]
|
958.80
|
|
Typical heat dissipation[BTU/hour]
|
798.43
|
|
Power supply mode
|
Pluggable power supply
|
|
Input voltage range[V]
|
- AC input: 90 V AC to 290 V AC; 45–65 Hz
- High-voltage DC input: 190 V DC to 290 V DC - DC input: -38.4 V DC to -72 V DC |
|
Rated input voltage[V]
|
- AC input: 100 V AC to 240 V AC; 50/60 Hz
- High-voltage DC input: 240 V DC - DC input: –48 V DC to –60 V DC |
|
Maximum input current[A]
|
The current specifications are related to the pluggable power module. For details, see Pluggable Power Modules.
|
|
Number of power slots
|
2
|
|
Number of card slots
|
1
|
|
Memory
|
4 GB
|
|
Flash memory
|
Physical space: 2 GB
|
|
Redundant power supply
|
1+1
Pluggable AC and DC power modules can be used together in the same switch. |
|
Types of fans
|
Pluggable
|
|
Noise at normal temperature (acoustic power)[dB(A)]
|
53.5
|
|
Noise at normal temperature (acoustic pressure)[dB(A)]
|
50.5
|
|
Airflow direction
|
Air intake from front, air exhaustion from rear (front-to-rear)
|
|
Storage temperature[°C(°F)]
|
–40°C to +70°C (–40°F to +158°F)
|
|
Long-term operating temperature[°C(°F)]
|
–5°C to +45°C (23°F to 113°F) at an altitude of 0 to 1800 m (0 to 5905.44 ft.)
|
|
Restriction on the operating temperature variation rate[°C(°F)]
|
When the altitude is 1800–5000 m (5906–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
The device cannot start when the temperature is lower than 0°C (32°F). When the QSFP-100G-ER4 or QSFP-100G-LR1 optical module is used, the operating temperature ranges from -5°C to +40°C (23°F to 104°F). |
|
Long-term operating relative humidity[RH]
|
5% RH to 95% RH, non-condensing
|
|
Storage altitude[m(ft.)]
|
0-5000 m (0-16404 ft.)
|
|
Long-term operating altitude[m(ft.)]
|
0–5000 m (0–16404 ft.)
|
|
MTBF[year]
|
51.81
|
|
MTTR[hour]
|
2
|
|
Availability
|
> 0.99999
|
|
Maximum number of physical ports on the entire device
|
12
|
|
Maximum number of 100GE ports
|
2
|
|
Maximum number of 40GE ports
|
2
|
|
Maximum number of 25GE ports
|
4
|
|
Maximum number of 10GE ports
|
4
|
|
Maximum number of GE ports
|
0
|
|
Maximum number of FE ports
|
0
|
|
100G optical interface
|
2
|
|
25G optical interface
|
4
|
|
10GE optical interface
|
16
|
|
USB
|
Supported
|
|
Console port
|
RJ45
|
|
Eth Management port
|
RJ45
|
|
Power supply surge protection
|
- Configured with AC power modules: ±6 kV in differential mode and ±6 kV in common mode
- Configured with DC power modules: ±2 kV in differential mode and ±4 kV in common mode |
|
RPS input
|
Not supported
|
|
PoE
|
Not supported
|
