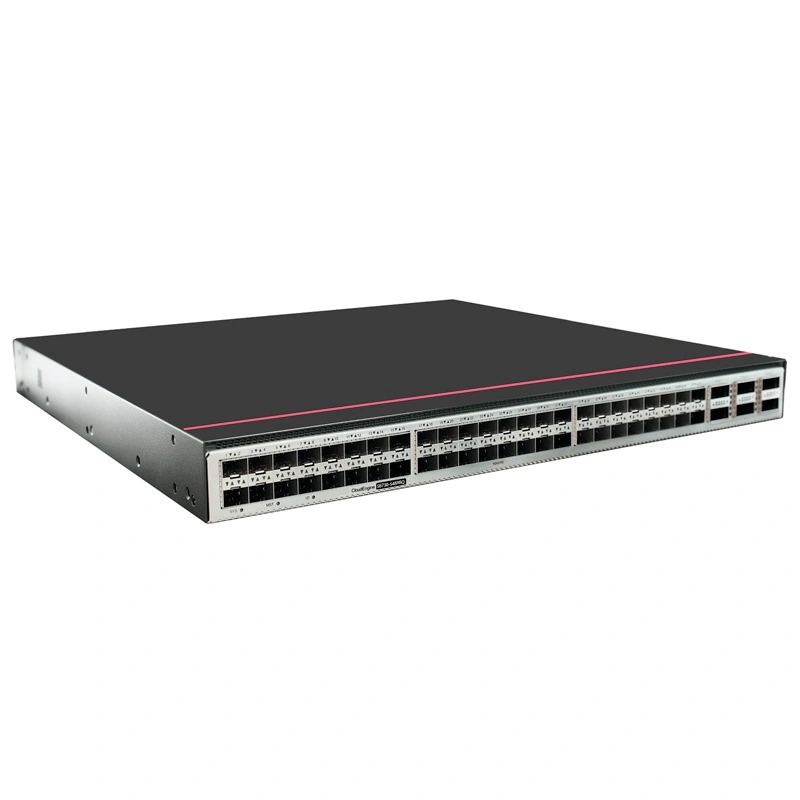

Enterprise Switch S6730-S48X6Q Huawei Core Switch with 48*10GE SFP+ ports
The S6730-S48X6Q Enterprise belongs to the Huawei CloudEngine series, designed specifically for enterprise campuses, data centers, and other scenarios. It provides full line speed 10G access and 40G/100G uplink interfaces, meeting the modern network's demand for high bandwidth and low latency
product Information
● Model No.: S6730-S48X6Q
● Size: 442*420*43.6mm
● Port details: 48*10GE SFP+ ports, 6*40GE QSFP+ ports
● Main features: Support advanced network virtualization technologies such as VXLAN and EVPN,Provide comprehensive QoS capabilities,Support unified user management function
● Application scenarios: Enterprise park, data center
● Warranty: 1 years
● MOQ: 1 pieces
Introduction
High performance forwarding capability
Using Huawei's self-developed ENP chip, it has powerful forwarding capabilities with a packet forwarding rate of up to 2000Mpps and a switching capacity of up to 4.8T/48Tbps, making it easy to cope with traffic pressure in business scenarios such as cloud computing, big data, and AI.
High density port combination
Provide 48 10G SFP+ports and 6 40G/100G QSFP28 ports, supporting high-density 10G access and 40G/100G uplink, to meet the needs of large-scale network expansion.
The QSFP+port can be upgraded to a 100GE interface through RTU license, improving network bandwidth and flexibility.
High reliability design
Support redundant configuration of power and fans (1+1 power backup, 4 independent pluggable fans) to ensure uninterrupted business operation.
Equipped with intelligent fan speed regulation function, it automatically adjusts the fan speed according to the device temperature, reducing operation and maintenance costs.
Rich business features
Support advanced network virtualization technologies such as VXLAN and EVPN, provide comprehensive QoS capabilities, and support unified user management functions
Intelligent operation and maintenance capability
Equipped with iPCA 2.0 network packet conservation algorithm, it can achieve accurate network quality detection and fault location, greatly reducing operation and maintenance complexity.
Energy conservation and environmental protection
By adopting Huawei's innovative energy-saving technologies, such as intelligent fan speed regulation and high-efficiency power modules, energy consumption is reduced while ensuring high performance, which is in line with the development trend of green data centers.
Parameters
| Height [mm] | 43.6 mm |
| Depth [mm] | 420.0 mm |
| Wide [mm] | 442.0 mm |
 Chassis height [U] |
1 |
 Weight without packaging [kg(lb)] |
5.84 (12.87) |
 Weight with packaging [kg(lb)] |
9.2 (20.28) |
 Typical power consumption [W] |
30% traffic under the ATIS standard and dual power modules: 158.3 W |
 Maximum power consumption [W] |
High temperature 45°C (113°F), 100% traffic, and dual power modules: 177.5 W High temperature 45°C (113°F), 100% traffic, long-distance optical module, 100% fan speed, and dual power modules: 259.5 W |
 Maximum heat dissipation [BTU/hour] |
High temperature 45°C (113°F), 100% traffic, and dual power modules: 605.65 High temperature 45°C (113°F), 100% traffic, long-distance optical module, 100% fan speed, and dual power modules: 885.44 |
             Heat dissipation mode |
Air cooling for heat dissipation, intelligent fan speed adjustment |
| Typical heat dissipation [BTU/hour] | 30% traffic under the ATIS standard and dual power modules: 540.14 |
| Power supply mode | Pluggable power supply |
| Input voltage range [V] | - AC input: 90 V AC to 290 V AC; 45–65 Hz - High-voltage DC input: 190 V DC to 290 V DC - DC input: -38.4 V DC to -72 V DC |
| Rated input voltage [V] | - AC input: 100 V AC to 240 V AC; 50/60 Hz - High-voltage DC input: 240 V DC - DC input: –48 V DC to –60 V DC |
| Maximum input current [A] | The current specifications are related to the pluggable power module. For details, see Pluggable Power Modules. |
| Number of power slots | 2 |
| Number of card slots | 0 |
| Memory | 4 GB |
| Flash memory | 2 GB in total. To view the available flash memory size, run the display version command. |
| Redundant power supply | 1+1 Pluggable AC and DC power modules can be used together in the same switch. |
| Types of fans | Pluggable |
| Noise at normal temperature (acoustic power) [dB(A)] | 65 |
| Noise at normal temperature (acoustic pressure) [dB(A)] | 52 |
| Airflow direction | Air intake from front, air exhaustion from rear (front-to-rear) |
| Long-term operating temperature [°C(°F)] | –5°C to +45°C (23°F to 113°F) at an altitude of 0 to 1800 m (0 to 5905.44 ft.) |
| Storage temperature [°C(°F)] | –40°C to +70°C (–40°F to +158°F) |
| Restriction on the operating temperature variation rate [°C(°F)] | When the altitude is 1800–5000 m (5906–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). Devices cannot start when the temperature is lower than 0°C (32°F). When the QSFP-100G-ER4 optical module is used, the operating temperature ranges from -5°C to +40°C (23°F to 104°F). |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH (non-condensing) |
| Long-term operating altitude [m(ft.)] | 0–5000 m (0–16404 ft.) |
| Storage altitude [m(ft.)] | 0-5000 m (0-16404 ft.) |
| MTBF [year] | 56.87 |
| MTTR [hour] | 2 |
| Availability | > 0.99999 |
| 40G optical interface | 6 |
| 10GE optical interface | 48 |
| USB | Supported |
| Console port | RJ45 |
| Eth Management port | RJ45 |
| Service port surge protection [kV] | - |
| Power supply surge protection | - Configured with AC power modules: ±6 kV in differential mode and ±6 kV in common mode - Configured with DC power modules: ±2 kV in differential mode and ±4 kV in common mode |
| RPS input | Not supported |
| PoE | Not supported |
