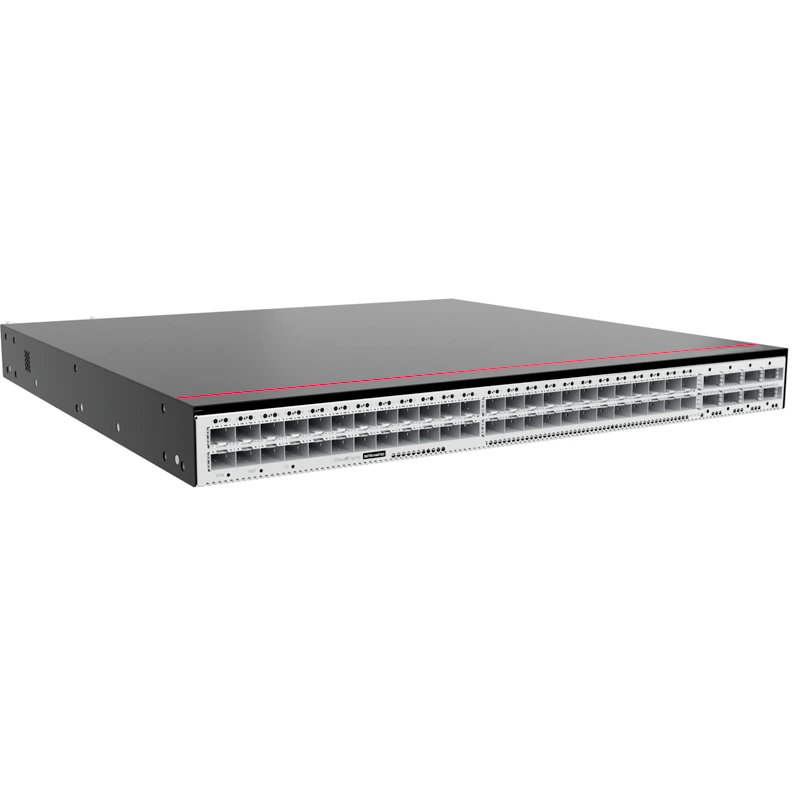

Enterprise Switch S6750-H48Y8C Core Switch with 8*100GE QSFP28 ports
● Model No.: S6750-H48Y8C
● Size: 442*420*43.6mm
● Port details: 48 × 1/10/25GE SFP28+8 × 40/100GE QSFP28 (can be split into 4 × 10GE/25GE), flexible combination of speed
● Main features: VXLAN、EVPN、BGP-EVPN、MACsec、iPCA、Telemetry， Support L2/L3VPN, HQoS
● Application scenarios: Large park convergence, small and medium-sized park core, data center access, cloud network integration bearing
● Warranty: 1 years
● MOQ: 1 pieces
Application scenarios
Large-scale campus aggregation/Small-to-medium-sized campus core: In large-scale campus networks in industries such as transportation, manufacturing, and education, it acts as an aggregation layer device, aggregating traffic from access layer switches and uploading it to the core network; or in small-to-medium-sized campuses, it directly functions as a core switch, carrying all internal services.
25GE High-Bandwidth Access Scenarios: For scenarios requiring 25GE access (such as high-performance computing, multimedia production, scientific data transmission, and 4K/8K video surveillance backhaul), the switch's 48 25GE ports provide high-bandwidth access capabilities.
High-Security Scenarios: Full-port MACsec support makes it suitable for industries with strict data security requirements, such as government, finance, and energy, enabling end-to-end data encryption from access to the core.
Multi-Service Convergence Scenarios: Leveraging its powerful VXLAN virtualization capabilities, it is suitable for scenarios requiring the isolation of multiple services (such as office networks, production networks, and monitoring networks) on a single physical network, achieving "one network, multiple uses."
Introduction
High density multi rate port: 1U integrated 48 × 25GE+8 × 100GE, uplink QSFP28 can be split into 10GE/25GE, adapting to different rate access and interconnection, saving room space.
Cloud network integration capability: native support for VXLAN+EVPN, flexible deployment of distributed/centralized gateways, BGP-EVPN to realize network virtualization, and adapt to the interconnection of cloud parks and data centers.
High reliability and security: 1+1 power redundancy, support for MACsec end-to-end encryption, iPCA real-time quality monitoring, Telemetry fault rapid location, and ensure business stability and security.
High performance and low latency: 4Tbps switching+1200Mpps forwarding, to meet the high bandwidth and low latency scenarios, and to adapt to video, cloud computing and other multi service concurrency.
Intelligent operation and maintenance: support Netconf automatic configuration, Telemetry real-time monitoring, iPCA quality analysis, simplify operation and maintenance, and reduce management costs
Parameters
| Chassis material | Metal |
| Height[mm] | 43.6 mm |
| Depth[mm] | 420.0 mm |
| Wide[mm] | 442.0 mm |
| Chassis height[U] | 1 |
| Weight with packaging[kg(lb)] | 11.23 kg (24.76 lb) |
| Weight without packaging[kg(lb)] | 6.96 kg (15.34 lb) |
| Maximum power consumption[W] | 100% traffic under the ATIS standard and dual power modules: 244 W |
| High temperature 45°C (113°F), 100% traffic, and dual power modules: 342 W | |
| Typical power consumption[W] | 30% traffic under the ATIS standard and dual power modules: 223 W |
| Heat dissipation mode | Air cooling for heat dissipation, intelligent fan speed adjustment |
| Maximum heat dissipation[BTU/hour] | 100% traffic under the ATIS standard and dual power modules: 832.55 |
| High temperature 45°C (113°F), 100% traffic, and dual power modules: 1166.94 | |
| Typical heat dissipation[BTU/hour] | 30% traffic under the ATIS standard and dual power modules: 760.90 |
| Power supply mode | Pluggable power supply |
| Input voltage range[V] | - AC input: 90 V AC to 290 V AC; 45–65 Hz |
| - High-voltage DC input: 190 V DC to 290 V DC | |
| - DC input: -38.4 V DC to -72 V DC | |
| Rated input voltage[V] | - AC input: 100 V AC to 240 V AC; 50/60 Hz |
| - High-voltage DC input: 240 V DC | |
| - DC input: –48 V DC to –60 V DC | |
| Maximum input current[A] | The current specifications are related to the pluggable power module. For details, see Pluggable Power Modules. |
| Number of power slots | 2 |
| Number of card slots | 0 |
| Memory | 8 GB |
| Flash memory | Physical space: 4 GB |
| Redundant power supply | 1+1 |
| Pluggable AC and DC power modules can be used together in the same switch. | |
| Types of fans | Pluggable |
| Noise at normal temperature (acoustic power)[dB(A)] | 58.4 |
| Noise at normal temperature (acoustic pressure)[dB(A)] | 57.2 |
| Airflow direction | Air intake from front, air exhaustion from rear (front-to-rear) |
| Storage temperature[°C(°F)] | –40°C to +70°C (–40°F to +158°F) |
| Long-term operating temperature[°C(°F)] | –5°C to +45°C (23°F to 113°F) at an altitude of 0 to 1800 m (0 to 5905.44 ft.) |
| Restriction on the operating temperature variation rate[°C(°F)] | When the altitude is 1800–5000 m (5906–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). |
| Devices cannot start when the temperature is lower than 0°C (32°F). | |
| When the QSFP-100G-ER4 optical module is used, the operating temperature ranges from -5°C to +40°C (23°F to 104°F). | |
| Long-term operating relative humidity[RH] | 5% RH to 95% RH, non-condensing |
| Storage altitude[m(ft.)] | 0-5000 m (0-16404 ft.) |
| Long-term operating altitude[m(ft.)] | 0–5000 m (0–16404 ft.) |
| MTBF[year] | 35.18 |
| MTTR[hour] | 2 |
| Availability | > 0.99999 |
| Maximum number of physical ports on the entire device | 56 |
| Maximum number of 100GE ports | 8 |
| Maximum number of 40GE ports | 8 |
| Maximum number of 25GE ports | 48 |
| Maximum number of 10GE ports | 48 |
| Maximum number of GE ports | 48 |
| Maximum number of FE ports | 0 |
| USB | Supported |
| Console port | RJ45 |
| Eth Management port | RJ45 |
| Service port surge protection[kV] | - |
| Power supply surge protection | - Configured with AC power modules: ±6 kV in differential mode and ±6 kV in common mode |
| - Configured with DC power modules: ±2 kV in differential mode and ±4 kV in common mode | |
| RPS input | Not supported |
| PoE | Not supported |
