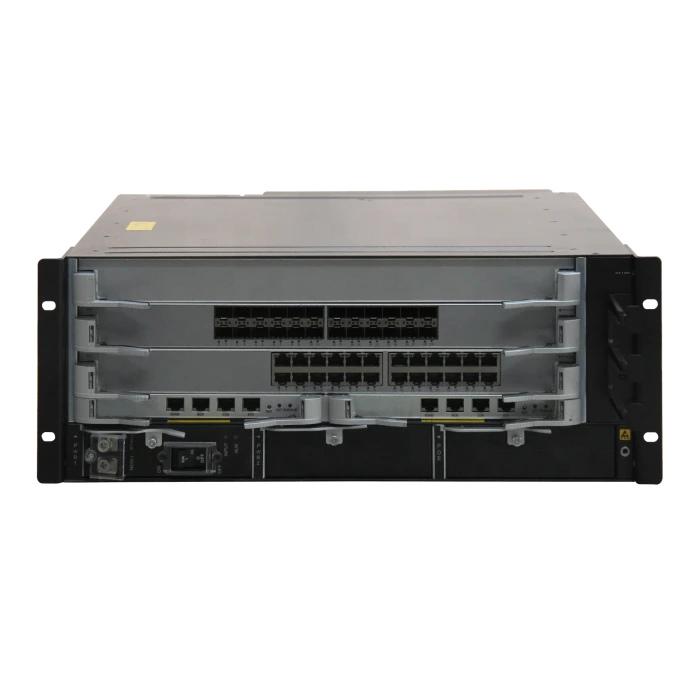

Enterprise Switch S7703 S7703 PoE 02113304 Ethernet Switch 1

Enterprise Switch S7703 S7703 PoE 02113304 Ethernet Switch 2

Enterprise Switch S7703 S7703 PoE 02113304 Ethernet Switch 3

Enterprise Switch S7703 S7703 PoE 02113304 Ethernet Switch

The Huawei S7703 is a high-end core/aggregation layer routing and switching device designed for medium and large enterprise networks. It features a modular design, high backplane bandwidth, and robust Layer 3 routing capabilities, along with comprehensive network security and management features

● Model No.: S7703

● Product Type: Enterprise-grade routers and Layer 3 switches

● switching capacity: 1.2 Tbps

● Packet forwarding rate: 540 Mpps / 1440 Mpps / 14400 Mpps

● Warranty: 1years

● MOQ: 1 pieces

Inquiry

Write a Review

Application scenarios

1. Typical location: Typically used as a core or aggregation layer switch in a network, connecting servers, firewalls, and underlying access switches.

2. Key configuration: During configuration, it is usually necessary to create a VLAN and configure its gateway IP (Vlanif interface), then set the ports connected to the subordinate switches to Trunk mode and release the corresponding VLAN, and finally configure the default route to point to the egress gateway

Key selling points

1. Flexible VLAN function: Supports multiple VLAN interface types such as Access, Trunk, Hybrid, etc., as well as QinQ (dual layer VLAN tagging) and dynamic VLAN allocation based on MAC addresses, which can flexibly isolate and partition network users.

2. Powerful QoS capability: It can finely classify traffic based on message information and use various queue scheduling techniques such as PQ and WRR to ensure that important traffic such as video conferencing and critical business data passes through first.

3. Comprehensive security mechanism: Supports multiple user authentication methods such as 802.1x and Portal, and can effectively prevent network attacks such as DoS attacks and TCP SYN Flood, protecting network security.

4. Rich management methods: Supports Console, Telnet, SSH command-line login, and also supports graphical management through SNMP protocol for easy daily maintenance

Detailed description

Item	Description
LPU slots	3
MPU slots	2
Fan slots	1
System power supply slots	2
PoE power supply slots	1
Maximum port density	V100R006C00: 144xFE, 144xGE, 36x10GE V200R001C00: 144xFE, 144xGE, 120x10GE V200R002C00 to V200R007C00: 144xFE, 144xGE, 120x10GE, 6x40GE V200R008C00 to V200R009C00: 144xFE, 144xGE, 120x10GE, 6x40GE, 6x100GE V200R010C00 to V200R019C00: 144xFE, 144xGE, 144x10GE, 24x40GE, 12x100GE V200R019C00 to V200R020C10: 144xFE, 144xGE, 144x10GE, 24x40GE, 18x100GE V200R021C00 and later versions: 144xFE, 144xGE, 144x10GE, 36x40GE, 18x100GE
Installation	In an N66E or N68E cabinet
CSS	Not supported
PoE	Power input: Versions earlier than V200R006C00 support only AC power supply. V200R006C00 and later versions support both AC power supply and DC power supply (only 2200 W DC power modules). V200R012C00 and later versions support 3000 W AC power supply PoE power module backup: no backup Maximum output power: 3000 W
Maximum power consumption (fully configured, no PoE power supply) NOTE: The heat dissipation value of a chassis equals the current power consumption of the chassis.	1000 W
Power specifications	DC input voltage Rated voltage: -48 V DC/-60 V DC Maximum voltage range: 1600 W DC power module: -38.4 V DC to -72 V DC 2200 W DC power module: -40 V DC to -72 V DC AC input voltage Rated voltage: 110 V AC/220 V AC, 50/60 Hz Maximum voltage range: 90 V AC to 290 V AC; 47 Hz to 63 Hz (The output power reduces to half of the maximum output when the input voltage is in the range of 90 V AC to 175 V AC.) HVDC input voltage (3000 W AC) Rated voltage: 240 V DC Maximum voltage range: 190 V DC to 290 V DC
Dimensions (H x W x D, without rack-mounting brackets)	With cable management frames (4 U high): 175 mm x 442 mm x 585 mm (6.9 in. x 17.4 in. x 23.0 in.) Without cable management frames (4 U high): 175 mm x 442 mm x 517.4 mm (6.9 in. x 17.4 in. x 20.37 in.)
Weight (empty/fully configured)	10 kg/31.6 kg (22.0 lb/69.7 lb)
Reliability and availability	Mean time between failures (MTBF): 33.8 years Availability: 0.9999964 NOTE: The preceding values are calculated based on the typical configuration of the product. The actual values will vary depending on the modules installed on the product.
Environment specifications	Operating temperature and altitude: -60 m to +1800 m (-197 ft. to 5906 ft.): 0°C to 45°C (32°F to 113°F) 1800 m to 4000 m (5906 ft. to 13123 ft.): Operating temperature decreases by 1°C (1.8°F) every time the altitude increases 220 m (722 ft.). 4000 m (13123 ft.): 0°C to 35°C (32°F to 95°F) Relative humidity: 5% RH to 95% RH (noncondensing) Storage temperature: -40°C to +70°C (-40°F to +158°F) Storage altitude: < 5000 m (16404 ft.)
Noise at normal temperature (acoustic power)	≤ 72 dB(A)
Certification	EMC certification Safety certification Manufacturing certification
Part number	Integrated S7703 chassis: 02113304 S7703 chassis, FCC certified: 02113959
