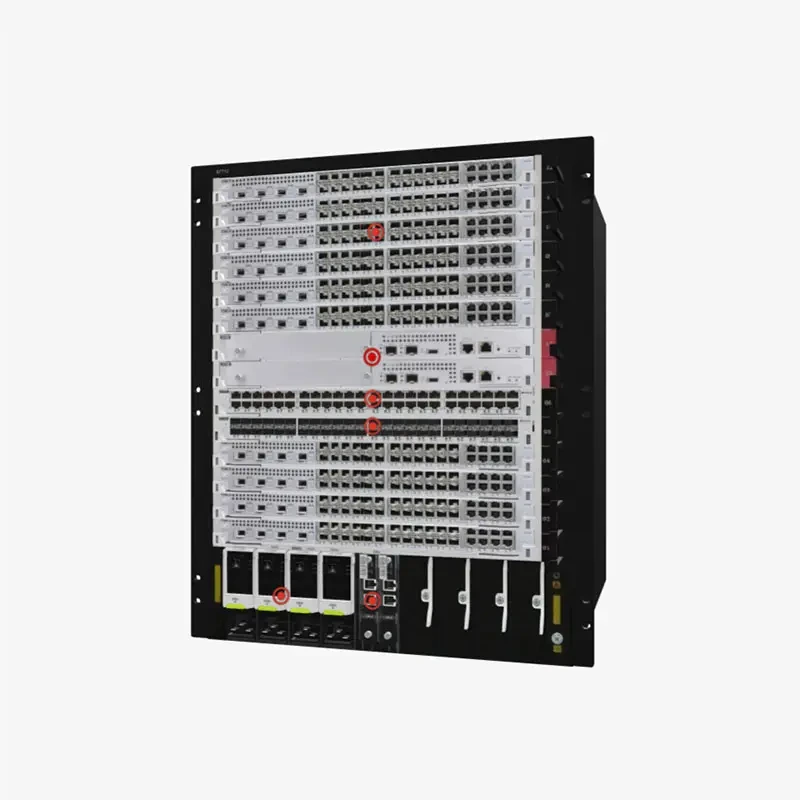

Enterprise Switch S7712 02113306 S7700 Series Ethernet Switch 1

Enterprise Switch S7712 02113306 S7700 Series Ethernet Switch 2

Enterprise Switch S7712 02113306 S7700 Series Ethernet Switch 3

Enterprise Switch S7712 02113306 S7700 Series Ethernet Switch 4

Enterprise Switch S7712 02113306 S7700 Series Ethernet Switch 5

Enterprise Switch S7712 02113306 S7700 Series Ethernet Switch

The Huawei S7712 is the flagship model in the S7700 series, with 12 business slots, making it the most scalable and high-performance core switch in the entire series. It is usually deployed in the network core of large campus networks or core nodes of large data centers, specifically designed to meet the requirements of ultra large scale networks and high-density business forwarding.

● Model No.: S7712

● switching capacity: 204.8 / 806.4 Tbps

● Packet forwarding rate: Up to 115200 Mpps

● Warranty: 1years

● MOQ: 1 pieces

Inquiry

Write a Review

Application scenarios

1. Typical location: Typically used as a core or aggregation layer switch in a network, connecting servers, firewalls, and underlying access switches.

2. Key configuration: During configuration, it is usually necessary to create a VLAN and configure its gateway IP (Vlanif interface), then set the ports connected to the subordinate switches to Trunk mode and release the corresponding VLAN, and finally configure the default route to point to the egress gateway

Key selling points

1. Powerful scalability: S7706 is equipped with 6 business board slots, which can accommodate various types of interface boards (such as 48 port gigabit electrical interface board, 48 port 10G optical interface board, etc.), meeting high-density access and high bandwidth uplink requirements.

2. Cluster and Virtualization (CSS): Supports virtualizing two S7706s into one logical switch through CSS (Cluster Switch System) technology, simplifying network topology and management while exponentially improving reliability and forwarding performance.

3. Deep integration of wired and wireless: When paired with the X series interface board, it supports on-board AC function and can directly manage APs without the need to purchase a separate wireless controller, simplifying the wireless network architecture.

4. Comprehensive network virtualization: Supports modern data center technologies such as VXLAN, which can adapt well to the needs of network virtualization and cloud services.

5. Rich security and management features: Supports SSH secure login, port mirroring, and other functions, facilitating network operation and troubleshooting

Detailed description

Item	Description
LPU slots	12
MPU slots	2
Fan slots	4
System power supply slots	4
PoE power supply slots	4
Maximum port density	V100R006C00: 576xFE, 576xGE, 144x10GE V200R001C00: 576xFE, 576xGE, 480x10GE V200R002C00 to V200R007C00: 576xFE, 576xGE, 480x10GE, 24x40GE V200R008C00 to V200R009C00: 576xFE, 576xGE, 480x10GE, 24x40GE, 24x100GE V200R010C00 to V200R019C00: 576xFE, 576xGE, 576x10GE, 96x40GE, 48x100GE V200R019C00 to V200R020C10: 576xFE, 576xGE, 576x10GE, 96x40GE, 72x100GE V200R021C00 and later versions: 576xFE, 576xGE, 576x10GE, 144x40GE, 72x100GE
Installation	In an N66E or N68E cabinet, one cabinet for one chassis
CSS	CSS card or service port clustering
PoE	Power input: Versions earlier than V200R006C00 support only AC power supply. V200R006C00 and later versions support both AC power supply and DC power supply (only 2200 W DC power modules). V200R012C00 and later versions support 3000 W AC power supply PoE power module backup: no backup, 3+1 backup, or 2+2 backup Maximum output power: 9000 W
Maximum power consumption (fully configured, no PoE power supply) NOTE: The heat dissipation value of a chassis equals the current power consumption of the chassis.	4200 W
Power specifications	DC input voltage Rated voltage: -48 V DC/-60 V DC Maximum voltage range: 1600 W DC power module: -38.4 V DC to -72 V DC 2200 W DC power module: -40 V DC to -72 V DC AC input voltage Rated voltage: 110 V AC/220 V AC, 50/60 Hz Maximum voltage range: 90 V AC to 290 V AC; 47 Hz to 63 Hz (The output power reduces to half of the maximum output when the input voltage is in the range of 90 V AC to 175 V AC.) HVDC input voltage (3000 W AC) Rated voltage: 240 V DC Maximum voltage range: 190 V DC to 290 V DC
Dimensions (H x W x D, without rack-mounting brackets)	With cable management frames (15 U high): 663.9 mm x 442 mm x 585 mm (26.1 in. x 17.4 in. x 23.0 in.) Without cable management frames (15 U high): 663.9 mm x 442 mm x 517.4 mm (26.1 in. x 17.4 in. x 20.37 in.)
Weight (empty/fully configured)	25 kg/97 kg (55.1 lb/213.8 lb)
Reliability and availability	MTBF: 24.1 years Availability: 0.9999959 NOTE: The preceding values are calculated based on the typical configuration of the product. The actual values will vary depending on the modules installed on the product.
Environment specifications	Operating temperature and altitude: -60 m to +1800 m (-197 ft. to 5906 ft.): 0°C to 45°C (32°F to 113°F) 1800 m to 4000 m (5906 ft. to 13123 ft.): Operating temperature decreases by 1°C (1.8°F) every time the altitude increases 220 m (722 ft.). 4000 m (13123 ft.): 0°C to 35°C (32°F to 95°F) Relative humidity: 5% RH to 95% RH (noncondensing) Storage temperature: -40°C to +70°C (-40°F to +158°F) Storage altitude: < 5000 m (16404 ft.)
Noise at normal temperature (acoustic power)	≤ 72 dB(A)
Certification	EMC certification Safety certification Manufacturing certification
Part number	S7712 chassis: 02113306 S7712 chassis, PoE supported: 02113308 S7712 chassis, FCC certified: 02113961 S7712 chassis, PoE supported, FCC certified: 02113963
