CR5B0BKP0373 02350FMK Ne40e-x3a Integrated Dc Chassis Components,Including Dual Dc Power For H W
5.0
Muestras:
$1000.0/pieza | Mín. orden : 1 pieza
Envío:
Apoyo transporte marítimo
Lugar de origen:
Porcelana
Pagos:
L/C... D/A... D/P... T/T... Western Union... MoneyGram... OA
Tiempo de entrega:
1-10 (piezas): 3 (días), 11-100 (piezas): 7 (días), 101-500 (piezas): 15 (días),> 500 (piezas): para ser negociado (días)
Personalización:
Logotipo personalizado (Min. Pedido: 10000 juegos), embalaje personalizado (mín. Pedido: 10000 juegos), personalización gráfica (mín. Pedido: 10000 juegos)
Marca:
¿Cómo?
Número de modelo:
CR5B0BKP0373
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Complete el siguiente formulario para solicitar una cotización o solicitar más información sobre nosotros. Por favor, sea lo más detallado posible en su mensaje, y le responderemos lo antes posible con una respuesta. Estamos listos para comenzar a trabajar en su nuevo proyecto, contáctenos ahora para comenzar.
Disyuntor/fusible
63 A
Diámetro de cable de entrada máximo
35 mm²
Mttr [hora]
0.5 hora
MTBF [año]
22.85 Año
Corriente de entrada máxima
63 A/solo módulo
Dimensiones sin empaquetado (H x W x D)
264 mm x 442 mm x 710 mm
Temperatura de almacenamiento
-40 ° C a 70 ° C (-40 ° F a 158 ° F)
Temperatura de funcionamiento a largo plazo
0 ° C a 45 ° C (32 ° F a 113 ° F)
Altura del chasis
6 U
Número de pieza
02350FMK
Uso
Otros
Lugar de origen
Guangdong... China
Tipo
Chasis
Descrição do produto
NE40E-X3A
Overview
Table 1
Basic information about the NE40E-X3A
| Descrição | Part Number | Modelo | First Supported Version | Remarks |
|---|---|---|---|---|
| NE40E-X3A Integrated DC Chassis Components, Including Dual DC Power | 02350FMK | CR5B0BKP0373 | V800R007C00 | - |
Appearance

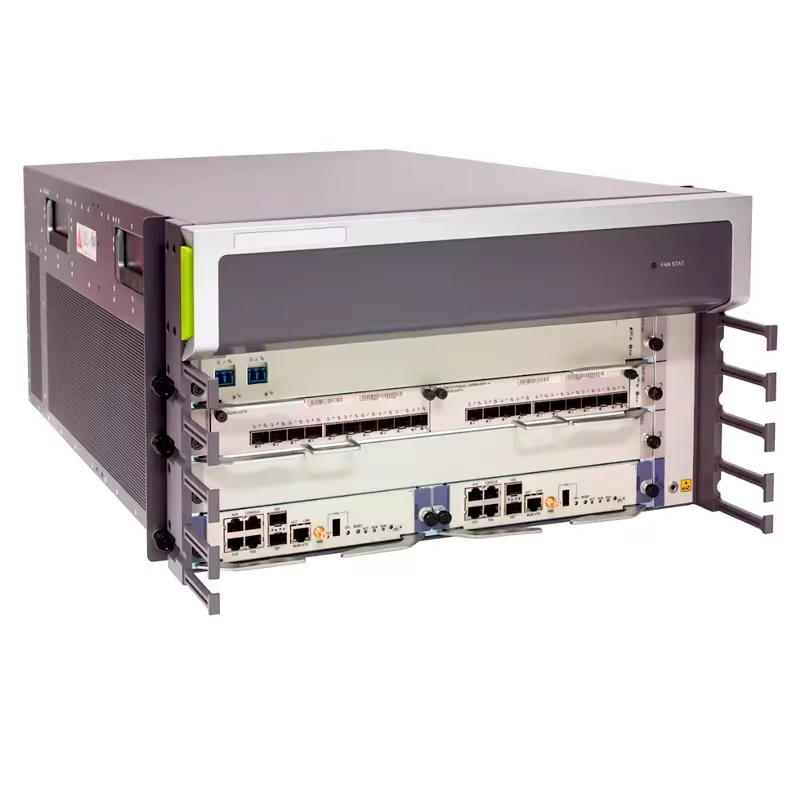

Figure 1
Appearance of the NE40E-X3A
Table 2
Technical specifications
| Item | Specification |
|---|---|
| Cabinet installation standards | Can be installed in a standard 19" 800 mm-deep cabinet. A 2.2 m-high N68E cabinet is used by default. |
| Dimensions without packaging (H x W x D) [mm(in.)] | 264 mm x 442 mm x 710 mm (10.39 in. x 17.40 in. x 27.95 in.) (Chassis main body) 264 mm x 442 mm x 758 mm (10.39 in. x 17.40 in. x 29.84 in.) (Dimensions of the chassis body together with cable trays and front and back attachments) |
| Chassis height [U] | 6 U |
| Weight without packaging (base configuration) [kg(lb)] | 34.4 kg (75.85 lb) |
| Weight without packaging (full configuration) [kg(lb)] | 72.1 kg (158.98 lb) |
| Typical power consumption [W] | 1120 W (fully configured with LPUF-200s) |
| Typical heat dissipation [BTU/hour] | 3633.8 BTU/hour (fully configured with LPUF-200s) |
| MTBF [year] | 22.85 year |
| MTTR [hour] | 0.5 hour |
| Availability | 0.999997502 |
| Power supply mode | DC built-in |
| Maximum number of power chassis inputs | (1 channel/PEM)*2 PEM=2 channels |
| Rated input voltage [V] | –48 V/ –60 V |
| Input voltage range [V] | –40 V to –72 V |
| Maximum input current [A] | 63 A/single-module |
| Maximum input cable diameter [mm²] | 35 milímetros² |
| Front-end circuit breaker/fuse [A] | 63 A |
| Noise at normal temperature (acoustic power) [dB(A)] | NEBS-compliance (< 78 dBA @ 27°C (80.6°F)) |
| Number of slots | 5 |
| Number of service board slots | 3 |
| Switching capacity | 2.76 tbps |
| Redundant MPUs | 1:1 |
| Redundant power supply | 1+1 |
| Redundant fans | Support for proper fan operation in case of a single fan failure for a short period at 40°C (104°F) |
| Long-term operating temperature [°C(°F)] | 0°C to 45°C (32°F to 113°F) |
| Short-term operating temperature [°C(°F)] | -5°C to 55°C (23°F to 131°F) |
| Restriction on the operating temperature variation rate [°C(°F)] | <000000>le; 30°C/hour (86°F/hour) |
| Storage temperature [°C(°F)] | -40°C to 70°C (-40°F to 158°F) |
| Long-term operating relative humidity [RH] | 5% RH to 85% RH, non-condensing |
| Short-term operating relative humidity [RH] | 5% RH to 95% RH, non-condensing |
| Storage relative humidity [RH] | 5% RH to 95% RH, non-condensing |
| Long-term operating altitude [m(ft.)] | <000000>le; 4000 m (13123.2 ft.) (For the altitude in the range of 1800 m to 4000 m [5905.44 ft. to 13123.2 ft.], the operating temperature of the device must decrease by 1°C [1.8°F] for every 220 m [721.78 ft.].) |
| Storage altitude [m(ft.)] | Less than 5000 m (16404 ft.) |
