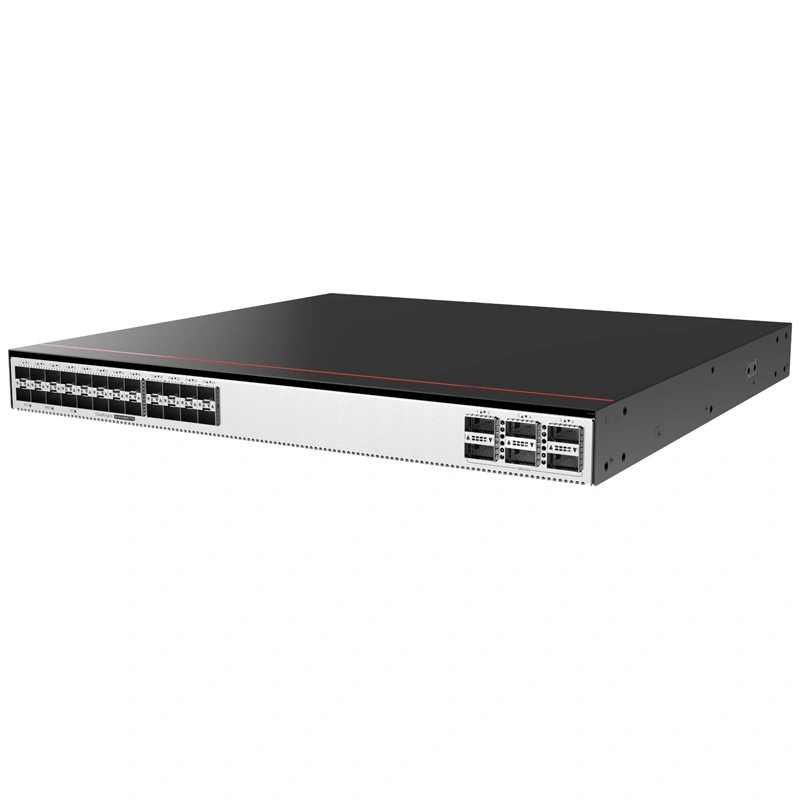

Ethernet Switch S6730-H24X6C-V2 Enterprise Core Switch with 6*40ge Qsfp28 Ports
CloudEngine S6730-H24X6C-V2 is a 10GbE Ethernet switch, which can provide high-speed data forwarding, network virtualization, intelligent operation and maintenance and other functions. It is suitable for large park convergence, access or small and medium-sized park core and other scenarios
product Information
● Model No.: S6730-H24X6C-V2
● Size: 442*420*43.6mm
● Port details: 24 *10 Gigabit SFP+ports and 6 *40/100GE QSFP28 ports. The default uplink port is 40GE, which can be flexibly upgraded to 100GE through RTU License
● Main features:Elastic port combination, high-performance forwarding, wired wireless integration, cloud based intelligent operation and maintenance, high reliability and redundancy
● Application scenarios: Scenarios such as large park convergence, access or small and medium-sized park core
● Warranty: 1 years
● MOQ: 1 pieces
Introduction
High density 10 Gigabit+elastic uplink: 24 × 10GE SFP++6 × 40/100GE QSFP28, RTU license can be upgraded to 100GE, and both access and uplink are considered.
High performance non blocking: the switching capacity is 4.8/48Tbps, and the packet forwarding rate is 1620Mpps, meeting the requirements of large bandwidth and high concurrency services.
Wired and wireless integration: built-in onboard AC, which can manage 1024 APs, support business travel, and simplify Wi Fi 6 networking.
Cloud based intelligent operation and maintenance: support iPCA 2.0, Telemetry, SVF virtualization, quick troubleshooting, and more efficient batch deployment.
Telecom class high reliability: 1+1 redundant power supply, hot swappable fan, support of SEP/ERPS ring network, 50ms fast switching.
Full stack security protection: support MACsec encryption, NAC access, ARP/DoS defense, and meet the equal protection 2.0 requirements.
Green compact design: 1U rack, wide temperature operation, intelligent speed regulation, low power consumption, low noise, suitable for a variety of scenarios.
Parameters
| Chassis material | Metal |
| Height[mm] | 43.6 mm |
| Depth[mm] | 420.0 mm |
| Wide[mm] | 442.0 mm |
| Chassis height[U] | 1 |
| Weight with packaging[kg(lb)] | 8.9 (19.62) |
| Weight without packaging[kg(lb)] | 5.62 (12.39) |
| Maximum power consumption[W] | High temperature 45°C (113°F), 100% traffic, and dual power modules: 181 W |
| High temperature 45°C (113°F), 100% traffic, long-distance optical module, 100% fan speed, and dual power modules: 254 W | |
| Typical power consumption[W] | 149 |
| Heat dissipation mode | Heat dissipation with fan, intelligent fan speed adjustment |
| Maximum heat dissipation[BTU/hour] | High temperature 45°C (113°F), 100% traffic, and dual power modules: 617.59 |
| High temperature 45°C (113°F), 100% traffic, long-distance optical module, 100% fan speed, and dual power modules: 866.67 | |
| Typical heat dissipation[BTU/hour] | 508.4 |
| Power supply mode | Pluggable power supply |
| Input voltage range[V] | - AC input: 90–290 V AC; 45–65 Hz |
| - High-voltage DC input: 190 V DC to 290 V DC | |
| - DC input: -38.4 V DC to -72 V DC | |
| Rated input voltage[V] | - AC input: 100 V AC to 240 V AC; 50/60 Hz |
| - High-voltage DC input: 240 V DC | |
| - DC input: –48 V DC to –60 V DC | |
| Maximum input current[A] | The current specifications depend on the pluggable power modules in use. For details, see the related power module specifications. |
| Number of power slots | 2 |
| Number of card slots | 0 |
| Memory | 4 GB |
| Flash memory | Physical space: 2 GB |
| Redundant power supply | 1+1 |
| Pluggable AC and DC power modules can be used together in the same switch. | |
| Types of fans | Pluggable |
| Noise at normal temperature (acoustic power)[dB(A)] | 65 |
| Noise at normal temperature (acoustic pressure)[dB(A)] | 52 |
| Airflow direction | Air intake from front, air exhaustion from rear (front-to-rear) |
| Storage temperature[°C(°F)] | -40°C to +70°C (-40°F to +158°F) |
| Long-term operating temperature[°C(°F)] | -5°C to +45°C (23°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.) |
| Restriction on the operating temperature variation rate[°C(°F)] | When the altitude is 1800–5000 m (5906–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). |
| Devices cannot start when the temperature is lower than 0°C (32°F). | |
| When the QSFP-100G-ER4 optical module is used, the operating temperature ranges from -5°C to +40°C (23°F to 104°F). | |
| Long-term operating relative humidity[RH] | 5% RH to 95% RH, non-condensing |
| Storage altitude[m(ft.)] | 0-5000 m (0-16404 ft.) |
| Long-term operating altitude[m(ft.)] | 0-5000 m (0-16404 ft.) |
| MTBF[year] | 62.27 |
| MTTR[hour] | 2 |
| Availability | > 0.99999 |
| Maximum number of physical ports on the entire device | 30 |
| Maximum number of 100GE ports | 6 (with a license activated) |
| Maximum number of 40GE ports | 6 |
| Maximum number of 25GE ports | 0 |
| Maximum number of 10GE ports | 24 |
| Maximum number of GE ports | 24 |
| Maximum number of FE ports | 0 |
| 100G optical interface | 6 |
| 40G optical interface | 6 |
| 10GE optical interface | 24 |
| USB | Supported |
| Console port | RJ45 |
| Eth Management port | RJ45 |
| Service port surge protection[kV] | - |
| Power supply surge protection | - AC power module configured: ±6 kV in differential mode, ±6 kV in common mode |
| - DC power module configured: ±2 kV in differential mode, ±4 kV in common mode | |
| RPS input | Not supported |
