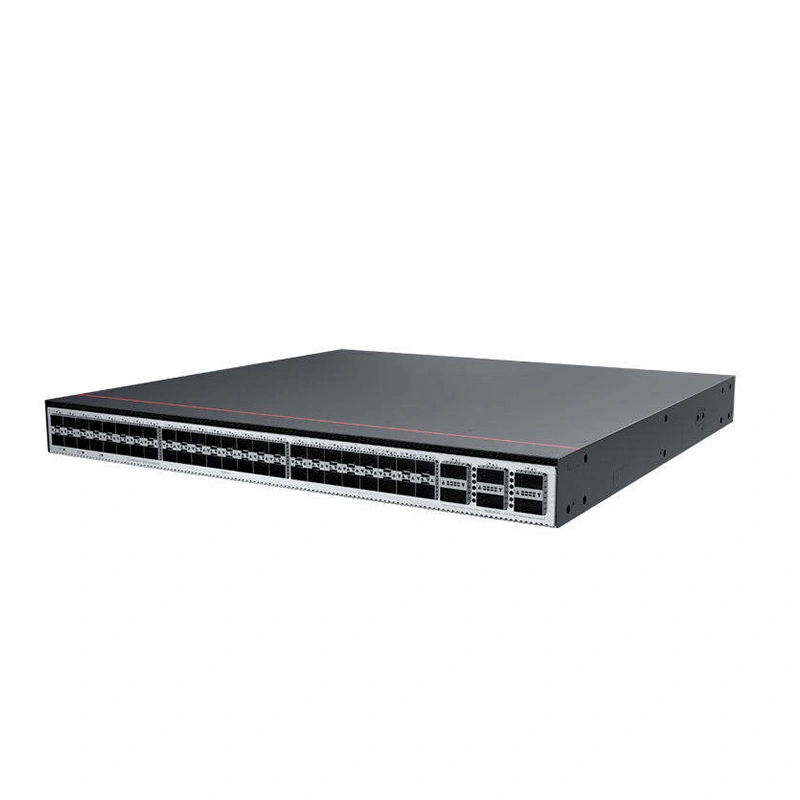

Ethernet Switch S6730-H48X6C Desktop Enterprise Switch with 48 port
The Huawei S6730-H48X6C is an enterprise level 10 Gigabit Ethernet switch launched by Huawei, belonging to the CloudEngine S6730 series. It is designed specifically for the core or aggregation layer of small and medium-sized campus networks, providing 48 10 Gigabit SFP+ports and 6 40/100G QSFP28 expansion ports, supporting high-speed data transmission and intelligent management.
The Huawei S6730-H48X6C is an enterprise level 10 Gigabit Ethernet switch launched by Huawei, belonging to the CloudEngine S6730 series. It is designed specifically for the core or aggregation layer of small and medium-sized campus networks, providing 48 10 Gigabit SFP+ports and 6 40/100G QSFP28 expansion ports, supporting high-speed data transmission and intelligent management.
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Trade Information
● Model No.: S6730-H48X6C
● size: Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.4 in. x 16.5 in.)
Maximum dimensions (the depth is the distance from ports on the front panel to the handle on the rear panel): 43.6 mm x 442.0 mm x 446.0 mm (1.72 in. x 17.4 in. x 17.6 in.)
● Switching capacity: 2.56T/25.6T
● packet forwarding rate: 1620Mpps
● Place of use: LACP, QoS, SNMP, Stackable, VLAN Support
● Warranty: 1years
● MOQ: 1 pieces
Key specification parameters
Performance indicators
packet forwarding rate of 1620Mpps, backplane bandwidth of 2.56Tbps (expandable to 25.6Tbps).
Port configuration
48 10G SFP+optical ports (supporting 10/100/1000/1000Mbps adaptive) and 6 QSFP28 ports (default 40G, can be upgraded to 100G through license).
Physical characteristics
Size 442 × 420 × 43.6mm (1U height), typical power consumption of 165W, maximum power consumption of 600W, operating temperature -5 ℃~45 ℃ (altitude 0-1800m)
Core functions and technical features
Network virtualization and expansion
Support VXLAN network virtualization and BGP-EVPN protocol to achieve unified management of cross device logic. Implementing link aggregation through iStack stacking technology to improve reliability (requires dedicated stacking cables).
Security and management capabilities
Built in security probe, supporting abnormal traffic detection, MACsec encryption, and threat analysis. Integrated onboard AC function, capable of managing up to 1000 wireless APs Supports 4K VLAN partitioning, Telemetry real-time monitoring, and iPCA quality awareness.
Advanced protocol support
QoS strategy
Supports 8-queue scheduling (DRR/SP/WRED), L2-L4 packet filtering, and port speed limiting.
Multicast protocol
compatible with IGMP, optimized for video streaming transmission efficiency.
Detailed description
|
Item |
Description |
| Memory (RAM) | 4 GB |
| Flash | 2 GB in total. To view the available flash memory size, run the display version command. |
| Mean time between failures (MTBF) | 62.27 years |
| Availability | > 0.99999 |
| Service port surge protection | N/A |
| Power supply surge protection |
|
| Dimensions (H x W x D) |
|
| Weight (with packaging) | 8.9 kg (19.62 lb) |
| Stack ports |
|
| RTC | Supported |
| RPS | Not supported |
| PoE | Not supported |
| Rated voltage range |
|
| Maximum voltage range |
|
| Maximum power consumption (100% throughput, full speed of fans) | 254 W |
| Typical power consumption (30% of traffic load, tested according to ATIS standard) | 149 W |
| Operating temperature | -5°C to +45°C (23°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.) Note: When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). The switch cannot be started when the ambient temperature is lower than 0°C (32°F). The operating temperature of the switch is -5°C to 40°C (23°F to 104°F) when it uses QSFP-100G-ER4 optical module. |
| Storage temperature | -40°C to +70°C (-40°F to +158°F) |
| Noise under normal temperature (27°C, sound power) | < 65 dB(A) |
| Relative humidity | 5% to 95%, noncondensing |
| Operating altitude | 0-5000 m (0-16404 ft.) |
| Certification |
|
| Part number | 02352FSG 02352FSG-001 02352FSG-005 02352FSG-007 02352FSG-009 02353GFC 02353GFC-001 02353GFC-003 02353GFC-004 |
