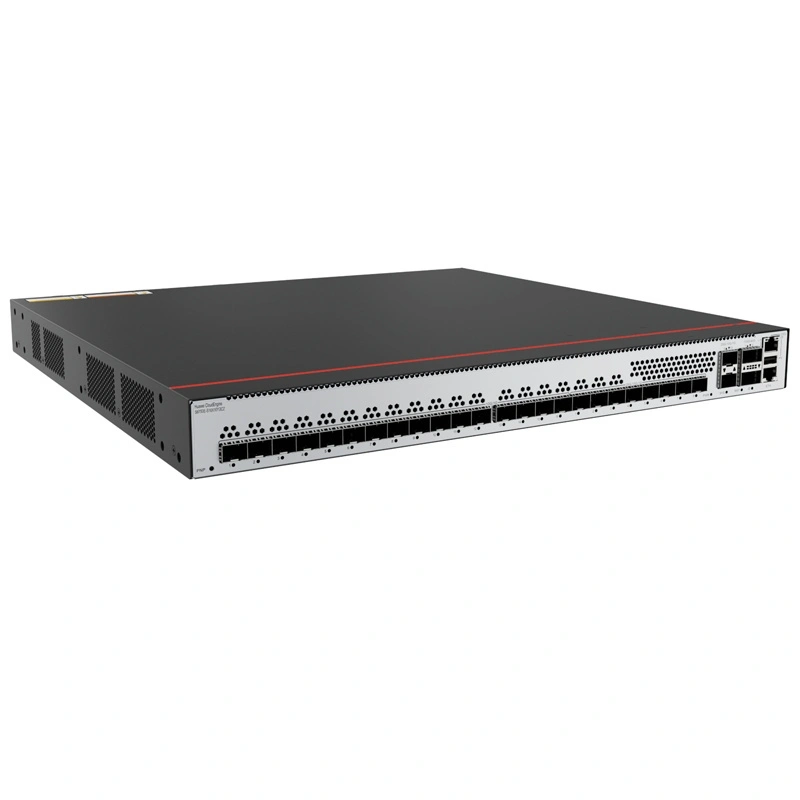

Ethernet Switch S6750E-S16X10Y2CZ Core Network Switch with 16*10GE SFP+ ports
● Model No.: S6750E-S16X10Y2CZ
● Size: 442*420*43.6mm
● Port details: 16 × FE/1/2.5/10GE SFP++10 × 1/2.5/10/25GE SFP28+2 × 40/100GE QSFP28, rate adaptive
● Main features: 160Tbps super capacity, full rate port adaptation, cloud network integration and high reliability
● Application scenarios: Convergence layer of medium and large enterprises/universities/hospital parks
Core node of small and medium-sized parks, Wi Fi 7 AP uplink and IoT integration bearing
Key business networks in the teaching and medical industry need loop protection and visual operation and maintenance scenarios
● Warranty: 1 years
● MOQ: 1 pieces
Application scenarios
All-Optical Campus Aggregator/Core: In universities, this all-optical campus network aggregation switch connects remote modules or access points in teaching buildings and dormitories via fiber optic cables, providing high-bandwidth support for multimedia classrooms, online teaching, AR/VR interactive services, and more.
Smart Hospital Network Construction: In large hospitals, this all-optical aggregation switch connects remote devices in clinics, wards, and medical technology departments via fiber optic cables, providing stable, low-latency network support for critical services such as electronic medical records, PACS image transmission, and remote consultations.
25GE High-Bandwidth Access Scenarios: For scenarios requiring 25GE access (such as high-performance computing, multimedia production, scientific data transmission, and 4K/8K video surveillance backhaul), the switch's 10 25GE ports provide high-bandwidth access capabilities.
High-Security Scenarios: With full-port MACsec support, it is suitable for industries with strict data security requirements, such as government, finance, and energy, enabling end-to-end data encryption from access to the core.
Introduction
Flexible adaptation of multi rate ports: 16 × 10GE+10 × 25GE downlink+2 × 100GE uplink, adaptation of multi rate terminals and uplink, expansion slot support function expansion and investment protection.
Enhancement of teaching and medical scene: add ERPS/STP loop protection visualization, ensure the continuity of HIS, educational administration system and other key businesses, and adapt to the high reliability requirements of education and medical care.
Cloud network integration and intelligent operation and maintenance: native VXLAN+EVPN, support network virtualization and multi service integration, Telemetry real-time monitoring+iPCA quality analysis, simplify operation and maintenance.
High reliability and flexible expansion: 1+1 power redundancy+stacking, support N+1 backup and rapid convergence, and meet the stable operation of 7 × 24 business.
Parameters
| Chassis material | Metal |
| Height[mm] | 43.6 mm |
| Depth[mm] | 420.0 mm |
| Wide[mm] | 442.0 mm |
| Chassis height[U] | 1 |
| Weight with packaging[kg(lb)] | 7.65 (16.87) |
| Weight without packaging[kg(lb)] | 5.20 kg (11.46 lb) |
| Maximum power consumption[W] | 100% traffic under the ATIS standard and dual power modules: |
| - 130 W (with two 180 W AC power modules) | |
| - 118 W (with two 240 W DC power modules) | |
| Typical power consumption[W] | 30% traffic under the ATIS standard and dual power modules: |
| - 120 W (with two 180 W AC power modules) | |
| - 109 W (with two 240 W DC power modules) | |
| Heat dissipation mode | Air cooling for heat dissipation, intelligent fan speed adjustment |
| Maximum heat dissipation[BTU/hour] | 100% traffic under the ATIS standard and dual power modules: |
| - 444 (with two 180 W AC power modules) | |
| - 403 (with two 240 W DC power modules) | |
| Typical heat dissipation[BTU/hour] | 30% traffic under the ATIS standard and dual power modules: |
| - 409 (with two 180 W AC power modules) | |
| - 372 (with two 240 W DC power modules) | |
| Power supply mode | Pluggable power supply |
| Input voltage range[V] | - AC input: 90 V AC to 290 V AC; 45 Hz to 66 Hz |
| - High-voltage DC input: 190 V DC to 290 V DC | |
| - DC input: -38.4 V DC to -72 V DC | |
| Rated input voltage[V] | - AC input: 100 V AC to 130 V AC, 200 V AC to 240 V AC; 50/60 Hz |
| - High-voltage DC input: 240 V DC | |
| - DC input: –48 V DC to –60 V DC | |
| Maximum input current[A] | The current specifications are related to the pluggable power module. For details, see Pluggable Power Modules. |
| Number of power slots | 2 |
| Number of card slots | 1 |
| Memory | 4 GB |
| Flash memory | Physical space: 2 GB |
| Redundant power supply | 1+1 |
| Pluggable AC and DC power modules can be used together on the same device. | |
| Note: | |
| Power modules with fans and power modules without fans cannot be installed on the same device. | |
| Types of fans | Pluggable |
| Noise at normal temperature (acoustic power)[dB(A)] | 54.2 dBA |
| Noise at normal temperature (acoustic pressure)[dB(A)] | 41.2 dBA |
| Airflow direction | Air intake from front and right and air exhaust from rear |
| Storage temperature[°C(°F)] | –40°C to +70°C (–40°F to +158°F) |
| Short-term operating temperature[°C(°F)] | -5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5905.44 ft.) |
| Long-term operating temperature[°C(°F)] | –5°C to +45°C (23°F to 113°F) at an altitude of 0 to 1800 m (0 to 5905.44 ft.) |
| Restriction on the operating temperature variation rate[°C(°F)] | When the altitude is 1800–5000 m (5906–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). |
| The device can work for a short period of time when the operating temperature is beyond the normal range, but the following conditions must be met: | |
| Long-term operating relative humidity[RH] | 5% RH to 95% RH, non-condensing |
| Storage altitude[m(ft.)] | 0-5000 m (0-16404 ft.) |
| Long-term operating altitude[m(ft.)] | 0–5000 m (0–16404 ft.) |
| MTBF[year] | 69.1 |
| MTTR[hour] | 2 |
| Availability | > 0.99999 |
| Maximum number of physical ports on the entire device | 28 |
| Maximum number of 100GE ports | 2 |
| Maximum number of 40GE ports | 2 |
| Maximum number of 25GE ports | 10 |
| Maximum number of 10GE ports | 26 |
| Maximum number of GE ports | 26 |
| Maximum number of FE ports | 16 |
| 100G optical interface | 2 |
| 25G optical interface | 10 |
| 10GE optical interface | 16 |
| USB | Supported |
| Console port | RJ45 |
| Eth Management port | RJ45 |
| Power supply surge protection | - Configured with AC power modules: ±6 kV in differential mode and ±6 kV in common mode |
| - Configured with DC power modules: ±2 kV in differential mode and ±4 kV in common mode | |
| RPS input | Not supported |
