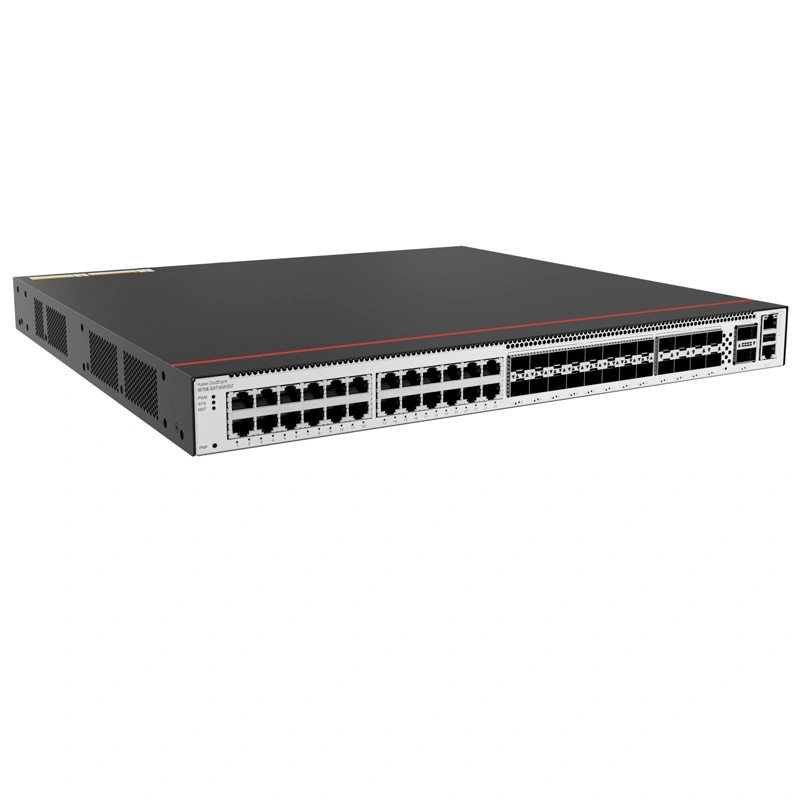

Ethernet Switch S6750E-S24T16X8Y2CZ Core Network Switch with 2*100GE QSFP28 ports
● Model No.: S6750E-S24T16X8Y2CZ
● Size: 442*420*43.6mm
● Port details: 24*1000BASE-T ports, 16*10GE SFP+ ports, 8*25GE SFP28 ports, 2*100GE QSFP28 ports
● Main features: Medical education enhancement (ERPS/STP loop protection visualization), VXLAN+EVPN，MACsec，iPCA，Telemetry， Support L2/L3VPN, HQoS
● Application scenarios: Convergence of educational and medical parks, core of small and medium-sized parks, Wi Fi 7 AP uplink, IoT integrated access, cloud network integrated bearing
● Warranty: 1 years
● MOQ: 1 pieces
Application scenarios
Smart Campus Aggregator/Core: In universities and K-12 schools, it serves as a large-scale campus aggregation switch, connecting access switches in various teaching buildings and dormitories, providing stable and reliable network support for multimedia classrooms, online teaching, video surveillance, and other services.
Smart Hospital Network Construction: In large hospitals, it serves as an aggregation layer switch, connecting access devices in various clinics, wards, and medical technology departments, providing high-bandwidth, low-latency network assurance for critical services such as electronic medical records, PACS image transmission, and remote consultations.
Large-Scale Campus Aggregator/Small-to-Medium-Sized Campus Core: In large-scale campus networks in industries such as transportation, manufacturing, and education, it serves as an aggregation layer device, aggregating traffic from access layer switches and uploading it to the core network; or in small-to-medium-sized campuses, it directly serves as a core switch, carrying all internal services.
High-Security Requirement Scenarios: Full-port MACsec support, suitable for industries with strict data security requirements, such as government, finance, and energy, enabling end-to-end data encryption from access to the core.
Introduction
Full rate port adaptation: 24 × 1GE electric port covers terminal, 16 × 10GE+8 × 25GE adapts multi rate access, 2 × 100GE uplink guarantees bandwidth, and expansion slot supports function expansion and investment protection.
Enhancement of teaching and medical scene: ERPS/STP loop protection visualization, real-time monitoring of link status, rapid positioning of the loop, and guarantee uninterrupted HIS, educational administration and other key services.
Cloud network integration and intelligent operation and maintenance: native VXLAN+EVPN, supporting network virtualization and multi service integration; Telemetry real-time monitoring+iPCA quality analysis, Netconf automatic configuration, simplify operation and maintenance.
High reliability and security: 1+1 power redundancy, full port support for MACsec end-to-end encryption, iPCA real-time quality monitoring, to ensure business stability and security
Parameters
| Chassis material | Metal |
| Height[mm] | 43.6 mm |
| Depth[mm] | 420.0 mm |
| Wide[mm] | 442.0 mm |
| Chassis height[U] | 1 |
| Weight with packaging[kg(lb)] | 7.96 (17.55) |
| Weight without packaging[kg(lb)] | 5.52 kg (12.17 lb) |
| Maximum power consumption[W] | 100% traffic under the ATIS standard and dual power modules: |
| - 127 W (with two 180 W AC power modules) | |
| - 123 W (with two 240 W DC power modules) | |
| Typical power consumption[W] | 30% traffic under the ATIS standard and dual power modules: |
| - 122 W (with two 180 W AC power modules) | |
| - 118 W (with two 240 W DC power modules) | |
| Heat dissipation mode | Air cooling for heat dissipation, intelligent fan speed adjustment |
| Maximum heat dissipation[BTU/hour] | 100% traffic under the ATIS standard and dual power modules: |
| - 433.32 (with two 180 W AC power modules) | |
| - 419.67 (with two 240 W DC power modules) | |
| Typical heat dissipation[BTU/hour] | 30% traffic under the ATIS standard and dual power modules: |
| - 416.26 (with two 180 W AC power modules) | |
| - 402.61 (with two 240 W DC power modules) | |
| Power supply mode | Pluggable power supply |
| Input voltage range[V] | - AC input: 90 V AC to 290 V AC; 45 Hz to 66 Hz |
| - High-voltage DC input: 190 V DC to 290 V DC | |
| - DC input: -38.4 V DC to -72 V DC | |
| Rated input voltage[V] | - AC input: 100 V AC to 130 V AC, 200 V AC to 240 V AC; 50/60 Hz |
| - High-voltage DC input: 240 V DC | |
| - DC input: –48 V DC to –60 V DC | |
| Maximum input current[A] | The current specifications are related to the pluggable power module. For details, see Pluggable Power Modules. |
| Number of power slots | 2 |
| Number of card slots | 1 |
| Memory | 4 GB |
| Flash memory | Physical space: 2 GB |
| Redundant power supply | 1+1 |
| Pluggable AC and DC power modules can be used together on the same device. | |
| Note: | |
| Power modules with fans and power modules without fans cannot be installed on the same device. | |
| Types of fans | Pluggable |
| Noise at normal temperature (acoustic power)[dB(A)] | 54.2 dBA |
| Noise at normal temperature (acoustic pressure)[dB(A)] | 41.2 dBA |
| Airflow direction | Air intake from front and right and air exhaust from rear |
| Storage temperature[°C(°F)] | –40°C to +70°C (–40°F to +158°F) |
| Short-term operating temperature[°C(°F)] | -5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5905.44 ft.) |
| Long-term operating temperature[°C(°F)] | –5°C to +45°C (23°F to 113°F) at an altitude of 0 to 1800 m (0 to 5905.44 ft.) |
| Restriction on the operating temperature variation rate[°C(°F)] | When the altitude is 1800–5000 m (5906–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). |
| The device can work for a short period of time when the operating temperature is beyond the normal range, but the following conditions must be met: | |
| - The operating temperature exceeds 45°C (113°F) for no more than 96 consecutive hours in a year. | |
| Long-term operating relative humidity[RH] | 5% RH to 95% RH, non-condensing |
| Storage altitude[m(ft.)] | 0-5000 m (0-16404 ft.) |
| Long-term operating altitude[m(ft.)] | 0–5000 m (0–16404 ft.) |
| MTBF[year] | 47.17 |
| MTTR[hour] | 2 |
| Availability | > 0.99999 |
| Maximum number of physical ports on the entire device | 50 |
| Maximum number of 100GE ports | 2 |
| Maximum number of 40GE ports | 2 |
| Maximum number of 25GE ports | 8 |
| Maximum number of 10GE ports | 24 |
| Maximum number of GE ports | 48 |
| Maximum number of FE ports | 40 |
| 100G optical interface | 2 |
| 25G optical interface | 8 |
| 10GE optical interface | 16 |
| 1000M electrical interface | 24 |
| USB | Supported |
| Console port | RJ45 |
| Eth Management port | RJ45 |
