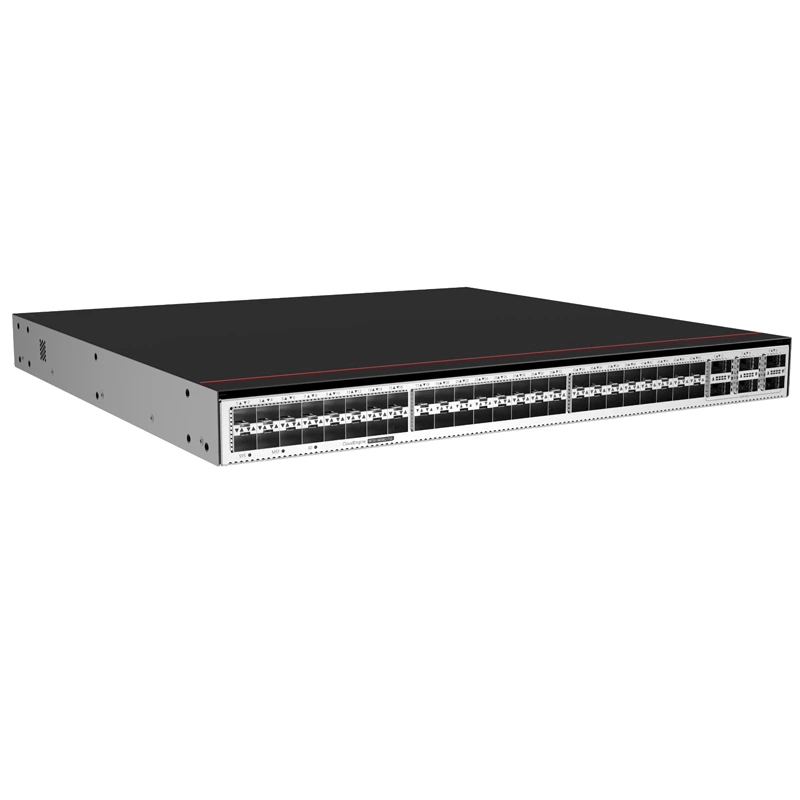

Huawei Switch S6330-H48X6C Network Ethernet Switch with 6*100GE Ports 1

Huawei Switch S6330-H48X6C Network Ethernet Switch with 6*100GE Ports 2

Huawei Switch S6330-H48X6C Network Ethernet Switch with 6*100GE Ports

S6330-H48X6C is a 10 Gigabit Layer 3 core switch from Huawei CloudEngine S6730 series, featuring high-density ports and high performance, suitable for deployment in campus network cores or data center access layers.

Inquiry

Write a Review

product Information

● Model No.: S6330-H48X6C

● size: 442*420*43.6mm

● Maximum power consumption [W]: 291

● Place of use: campus network cores or data center access layers

● Warranty: 1 years

● MOQ: 1 pieces

Introduction

Port configuration: 48 10G SFP+ports+6 40/100G QSFP28 expansion ports

Forwarding performance: packet forwarding rate of 1620Mpps, backplane bandwidth of 2.56/25.6Tbps

Main features: Supports VLAN, QoS, MAC address table 128K, supports multi rate transmission

Parameters

Height [mm]	43.6 mm
Depth [mm]	420.0 mm
Wide [mm]	442.0 mm
Chassis height [U]	1
Weight with packaging	9.2 (20.28)
Weight without packaging	5.84 (12.87)
Maximum power consumption [W]	291
Typical power consumption [W]	165
Maximum heat dissipation [BTU/h]	992.92
Heat dissipation mode	Air cooling and intelligent speed adjustment
Typical heat dissipation [BTU/h]	563
Power supply mode	Pluggable power supply
Input voltage range [V]	- AC input: 90–290 V AC; 45–65 Hz - High-voltage DC input: 190 V DC to 290 V DC - DC input: -38.4 V DC to -72 V DC
Rated input voltage [V]	- AC input: 100 V AC to 240 V AC; 50/60 Hz - High-voltage DC input: 240 V DC - DC input: –48 V DC to –60 V DC
Maximum input current [A]	The current specifications depend on the pluggable power modules in use. For details, see the related power module specifications.
Number of power slots	2
Number of card slots	0
Memory	4 GB
Flash memory	The physical space is 2 GB. You can run the display version command to view the actual available space.
Redundant power supply	1+1 Pluggable AC and DC power modules can be used together in the same switch.
Types of fans	Pluggable
Noise at normal temperature (acoustic pressure)	52
Noise at normal temperature (acoustic power)	65
Airflow direction	Air intake from the front and air exhaust from the rear
Restriction on the operating temperature variation rate	When the altitude is 1800–5000 m (5906–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). Devices cannot start when the temperature is lower than 0°C (32°F). When the QSFP-100G-ER4 optical module is used, the operating temperature ranges from -5°C to +40°C (23°F to 104°F).
Long-term operating temperature	–5°C to +45°C (23°F to 113°F) at an altitude of 0 to 1800 m (0 to 5905.51 ft.)
Storage temperature	–40°C to +70°C (–40°F to +158°F)
Long-term operating relative humidity [RH]	5% to 95%, noncondensing
Storage altitude	0–5000 m (0–16404 ft.)
Long-term operating altitude	0–5000 m (0–16404 ft.)
MTBF [year]	56.87
MTTR [h]	2
Availability	>0.99999
Maximum number of physical ports on the entire device	54
Maximum number of 100GE ports	6 (license required)
Maximum number of 40GE ports	6
Maximum number of 25GE ports	0
Maximum number of 10GE ports	48
Maximum number of GE ports	48
Maximum number of FE ports	0
USB	Supported
Console port	RJ45
Eth Management port	RJ45
Service port surge protection	-
Power supply surge protection	- AC power module configured: ±6 kV in differential mode, ±6 kV in common mode - DC power module configured: ±2 kV in differential mode, ±4 kV in common mode
RPS input	Not supported
PoE	Not supported
