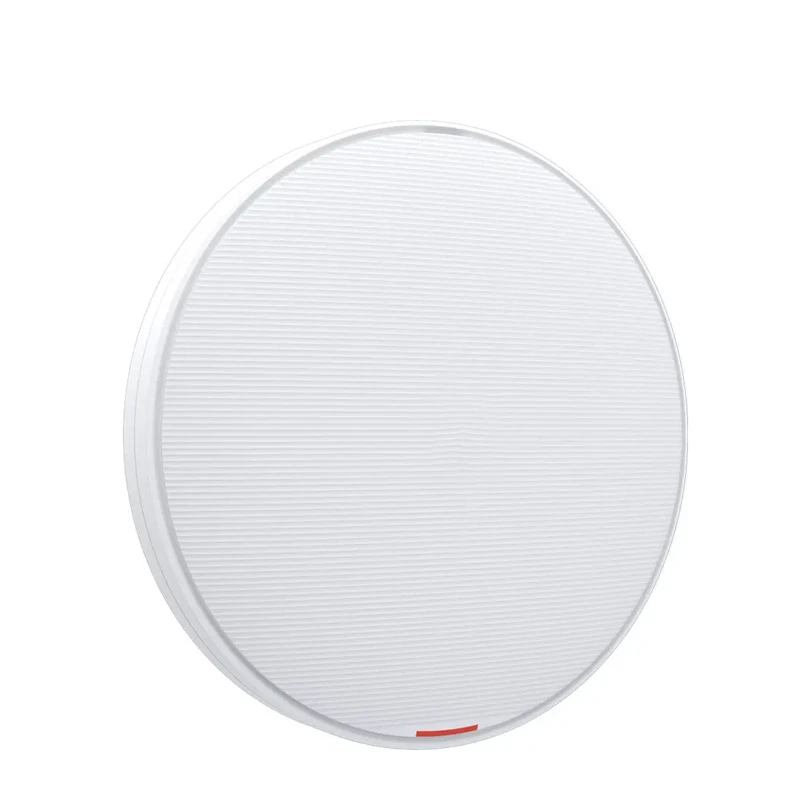

Indoor Access Point AirEngine 6761-21T Wireless AP with 1×2.5GE port
● Model No.: AirEngine 6761-21T
● Port details: 1×2.5GE Ethernet port + 1×10GE SFP port + optical port (co-optical combined)
● Application scenarios: Corporate offices, educational institutions, venues, and shopping malls
● Feature: Triple-RF concurrency, 6.575Gbps speed, built-in smart antenna, 2.5GE uplink
● Warranty: 1years
● MOQ: 1 pieces
Application scenarios
Large and Medium-Sized Enterprise Office Areas: Open-plan offices, large conference rooms, training centers; ultra-high-density access, high speed and stability, seamless roaming.
Universities/Educational Parks: Teaching buildings, libraries, dormitories, gymnasiums; tens of thousands of concurrent terminals; support for online learning and smart classrooms.
Commercial Complexes/Shopping Malls/Hotels: Multi-story buildings with high foot traffic; integrated customer wireless internet access, merchant management, and customer flow analysis.
Large Venues/Exhibition Halls: Concert halls, exhibition halls, sports venues; instantaneous high concurrency; guaranteed high-speed and stable access.
Medical Parks/Top-Tier Hospitals: Outpatient clinics, inpatient wards, operating rooms; guaranteed stable access for mobile ward rounds, medical data, and IoT devices.
Key selling points
Tri-band Concurrency: 2.4G + Dual 5G operate simultaneously, increasing concurrent users by 50%, with a single AP supporting over 1500 terminals.
High Speed: 6.575Gbps overall, meeting the needs of high-bandwidth services such as 4K/8K video, VR/AR, and cloud desktops.
Intelligent Traffic Offloading: 2.4G supports IoT/low-speed devices, 5G-1 supports mobile terminals, and 5G-2 supports high-bandwidth services, maximizing network efficiency.
Dynamic Beamforming: Automatically adjusts coverage direction and signal strength, increasing coverage radius by 20% and signal strength by 100%.
Strong Anti-interference: Intelligently suppresses co-channel interference, adaptable to high-density, high-interference scenarios (such as classrooms and conference rooms).
Easy Deployment: Ceiling-mounted installation, no additional wiring required, plug and play.
2.5GE + GE Dual Uplink: Meets 10 Gigabit bandwidth requirements, compatible with existing Gigabit networks, allowing for smooth upgrades.
PoE + Power Supply: 802.3at standard, single-port power supply, flexible deployment, and reduced construction costs.
Detailed description
| parameter item | Specifications |
| Device Model | AirEngine 6761‑21T |
| Wireless standards | Wi‑Fi 6（802.11ax）， Compatible with 802.11a/b/g/n/ac |
| operating frequency band | 2.4GHz+5GHz (dual 5G, triple RF) |
| RF specifications | 2.4GHz：2×2:2 MIMO； 5GHz‑1：2×2:2 MIMO； 5GHz‑2：4×4:4 MIMO |
| Machine speed | 6.575Gbps (2.4G 0.575Gbps+5G-1 1.2Gbps+5G-2 4.8Gbps) |
| Maximum concurrent user | ≤ 1536 (three RF) |
| Upstream Interface | 1 × 2.5GE electrical port+1 × GE electrical port (dual GE version: 02353XBR) |
| Antenna type | Built in smart antenna (dual band common interface) |
| power supply method | 802.3at PoE+/DC 12V |
| Maximum Power Consumption | 21.2W (excluding USB) |
| Operating Temperature | -10 ℃ to+50 ℃ |
| Size (diameter x height) | a diameter of 220mm × 50mm |
| weight | About 1.1kg |
| extended interface | 1 x USB+built-in Bluetooth (BLE) |
| management model | Fit AP (AC management) Fat AP、 Cloud Management (iMaster NCE) |
| Part Number | 02354VQJ (2.5GE+GE), 02353XBR (Dual GE) |
