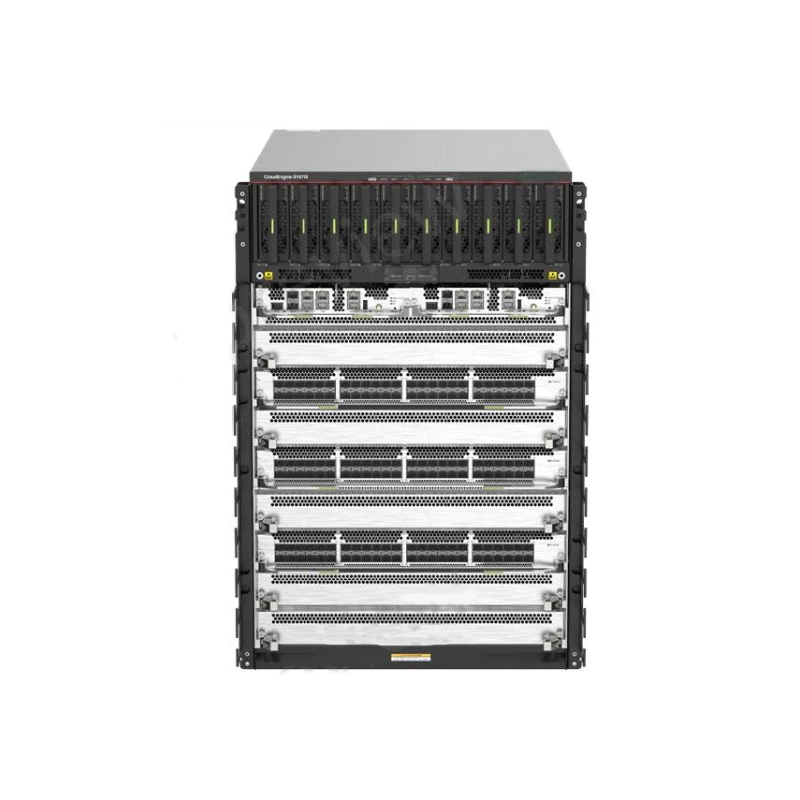

Industrial Switch S16700-4 AC/HVDC CloudEngine S16700 Series Assembly Chassis Switch
● Model No.: S16700-4
● switching capacity: 230,400 Mpps
● Packet forwarding rate: 952 / 2,876 Tbps
● Warranty: 1years
● MOQ: 1 pieces
Application scenarios
1. Core of large-scale park network: the core layer of park network in industries such as government, finance, energy, universities, and tertiary hospitals
2. Wired and wireless fusion deployment: Wi Fi 6 fully wireless campus construction, simplified architecture with on-board AC function
3. Data center aggregation: the aggregation layer of small and medium-sized data centers or enterprise self built data centers
4. High density access scenario: Large networks requiring high-density 100GE/40GE/10GE ports
Key selling points
1. Large capacity: 1 device supports 100000 terminals
2. Ultra fast forwarding: 14.4T bandwidth per slot, 4 times the industry average
3. Ultra high reliability: The park introduces M-LAG for the first time, achieving 99.9999% reliability
Detailed description
| Item | Specification |
|---|---|
| Dimensions without packaging (H x W x D) [mm(in.)] |
|
| Dimensions with packaging (H x W x D) [mm(in.)] | 730 mm x 770 mm x 1150 mm (28.74 in. x 30.31 in. x 45.28 in.) |
| Chassis height [U] | 9.8 U |
| Cabinet installation standards |
|
| Chassis material | Metal |
| Weight without packaging [kg(lb)] |
|
| Weight without packaging (full configuration) [kg(lb)] |
|
| Weight with packaging [kg(lb)] |
|
| Maximum power consumption [W] | 4664 W |
| Maximum heat dissipation [BTU/hour] | 15914 BTU/hour |
| MTBF [years] | 34.93 years |
| Availability | 0.9999971695 |
| Number of MPU slots | 2 |
| Number of SFU slots | 9 |
| Number of service board slots | 4 |
| Number of power slots | 6 |
| Number of fans modules | 3 |
| LPU slot direction | Horizontal |
| Redundant MPUs | 1:1 |
| Redundant Switch fabrics | N+M |
| Redundant power supply |
Dual-input power supply is recommended to ensure reliability. |
| Redundant fans | Fan modules work in hot standby mode. At the normal temperature range, the system can operate properly for a short time after a single fan module fails. You are advised to replace the faulty fan module immediately. |
| Long-term operating temperature [°C(°F)] | 0°C to 40°C (32°F to 104°F) |
| Restriction on the operating temperature variation rate [°C(°F)] | When the altitude is 1800 m to 5000 m (5905.44 ft. to 16404.00 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). |
| Storage temperature [°C(°F)] | –40°C to +70°C (–40°F to +158°F) |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH, non-condensing |
| Long-term operating altitude [m(ft.)] | ≤ 5000 m (16404 ft.) |
| Storage altitude [m(ft.)] | ≤ 5000 m (16404 ft.) |
| Storage environment |
ETSI EN 300 019-1-1 Class 1.2 NOTE:
|
| Rated input voltage [V] |
|
| Input voltage range [V] |
|
| Heat dissipation mode | Drawing air for heat dissipation |
| Airflow direction | Front-to-rear airflow |
| PoE | Not supported |
| Maximum power output capability [W] |
|
| Certification |
EMC certification Safety certification Manufacturing certification |
