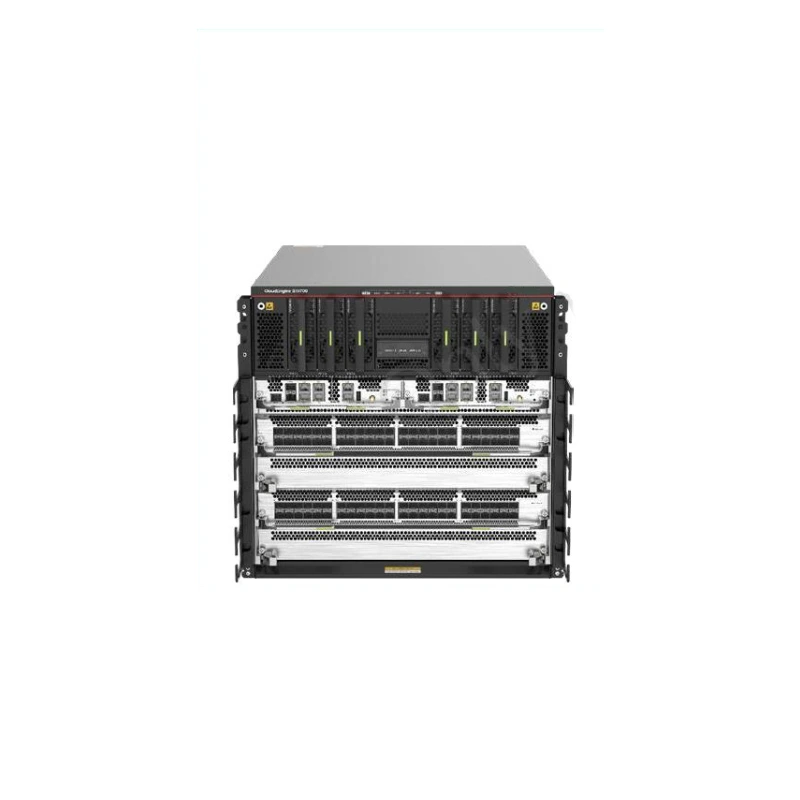

Industrial Switch S16700-8 AC/HVDC CloudEngine S16700 Series Assembly Chassis Switch
CloudEngine S16700-8 is a peak performance core switch launched by Huawei for high-quality 10G campus networks, belonging to the main 8-slot model in the S16700 series. It continues the core advantages of the S16700 series, such as ultra large capacity, ultra fast forwarding, and ultra-high reliability, providing industry-leading core switching capabilities for ultra large campus networks.
● Model No.: S16700-8
● switching capacity:460800 Mpps or 489600 Mpps
● Packet forwarding rate: 2,170 / 6,988 Tbps
● Warranty: 1years
● MOQ: 1 pieces
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Application scenarios
1.Core of super large park network: 985/211 university main campus, provincial government park, large tertiary hospital, large enterprise headquarters
2.Provincial education/government metropolitan area network core: carrying network access for educational institutions or government units in multiple regions
3.Large data center core/aggregation: high-performance data centers that require 400G port support
4.400G Park Network Construction: Network Planning with Forward looking Requirements for Port Speed
Key selling points
1. Large capacity: 1 device supports 100000 terminals
2. Ultra fast forwarding: 14.4T bandwidth per slot, 4 times the industry average
3. Ultra high reliability: The park introduces M-LAG for the first time, achieving 99.9999% reliability
Detailed description
| Item | Specification |
|---|---|
| Dimensions without packaging (H x W x D) [mm(in.)] |
|
| Dimensions with packaging (H x W x D) [mm(in.)] | 990 mm x 770 mm x 1150 mm (38.98 in. x 30.31 in. x 45.28 in.) |
| Chassis height [U] | 15.8 U |
| Cabinet installation standards |
|
| Chassis material | Metal |
| Weight without packaging [kg(lb)] |
|
| Weight without packaging (full configuration) [kg(lb)] |
|
| Weight with packaging [kg(lb)] |
|
| Maximum power consumption [W] | 8260 W |
| Maximum heat dissipation [BTU/hour] | 28183 BTU/hour |
| MTBF [years] | 34.55 years |
| Availability | 0.9999971582 |
| Number of MPU slots | 2 |
| Number of SFU slots | 9 |
| Number of service board slots | 8 |
| Number of power slots | 10 |
| Number of fans modules | 3 |
| LPU slot direction | Horizontal |
| Redundant MPUs | 1:1 |
| Redundant Switch fabrics | N+M |
| Redundant power supply |
Dual-input power supply is recommended to ensure reliability. |
| Redundant fans | Fan modules work in hot standby mode. At the normal temperature range, the system can operate properly for a short time after a single fan module fails. You are advised to replace the faulty fan module immediately. |
| Long-term operating temperature [°C(°F)] | 0°C to 40°C (32°F to 104°F) |
| Restriction on the operating temperature variation rate [°C(°F)] | When the altitude is 1800 m to 5000 m (5905.44 ft. to 16404.00 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). |
| Storage temperature [°C(°F)] | –40°C to +70°C (–40°F to +158°F) |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH, non-condensing |
| Long-term operating altitude [m(ft.)] | ≤ 5000 m (16404 ft.) |
| Storage altitude [m(ft.)] | ≤ 5000 m (16404 ft.) |
| Storage environment |
ETSI EN 300 019-1-1 Class 1.2 NOTE:
|
| Rated input voltage [V] |
|
| Input voltage range [V] |
|
| Heat dissipation mode | Drawing air for heat dissipation |
| Airflow direction | Front-to-rear airflow |
| PoE | Not supported |
| Maximum power output capability [W] |
|
| Certification |
EMC certification Safety certification Manufacturing certification |
