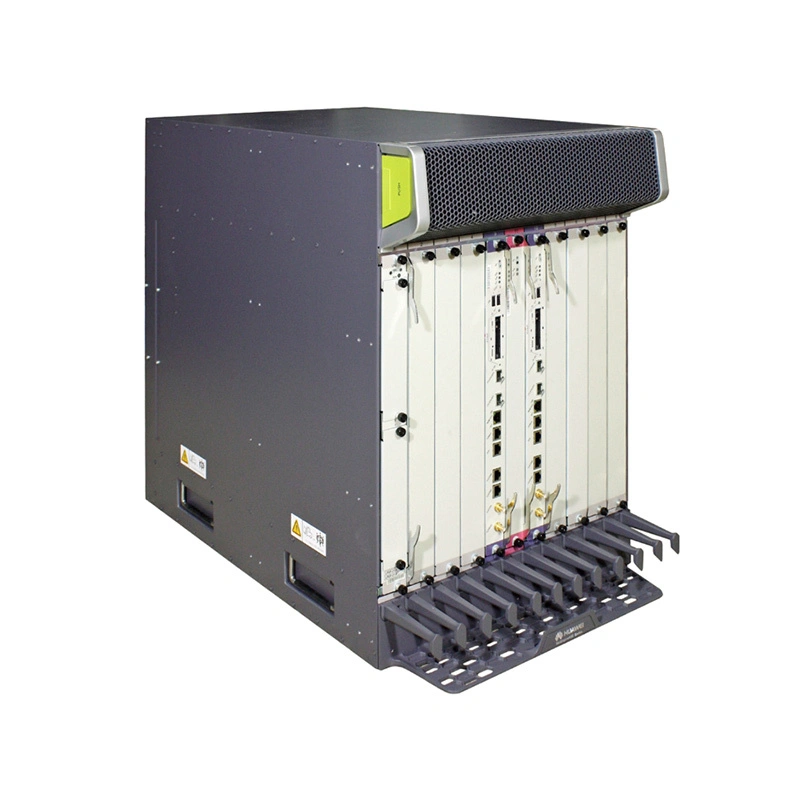

NE40E-X3 Huawei service router 100GE/40GE/10GE 2 MPU Slots enterprise router
Trade Information
● Model No.: NE40E-X3
● size: 220*650*442mm
● Place of Origin: Guangdong, China
● Place of use: Operators, core layers of large enterprises, and data centers
● Warranty: 1 years
● MOQ: 1 pieces
Introduction
The Huawei NE40E-X3 is an enterprise-grade all-service router introduced by Huawei, belonging to the NE40E series of network equipment. It is primarily designed for operator backbone networks, large enterprise core layers, and data center interconnection scenarios. Featuring a modular architecture, it includes five expansion slots (3 service cards + 2 main control cards), supports high-density port extensions such as 100GE/40GE/10GE, boasts a switching capacity of Tbps level, and delivers a forwarding performance of up to 960Mpps.
This model is equipped with self-developed chips, supports IPv4/IPv6 dual-stack and MPLS VPN technologies, integrates security mechanisms such as ACL filtering and URPF, and enables network slicing and QoS traffic scheduling. The device features redundant power supplies and hot-swappable design
Parameters
| Feature | Parameter Description |
| Product positioning | High performance compact multi service router, suitable for enterprise core/data center export/operator edge. |
| Form | Compact box type device, supporting front/rear air vents, easy to deploy in cabinets. |
| Chassis Specifications | 3U high (can be installed in a standard 19 inch cabinet). |
| Port side depth: approximately 395mm | |
| • Power side depth: approximately 440mm | |
| Switching Capacity | ≥ 4 Tbps (non blocking switching capacity of the entire machine). |
| Packet Forwarding Rate | ≥1600 Mpps. |
| Master Control Unit | Redundant main control (1+1 backup), supporting hot swapping. |
| Exchange Network Board | Redundant switching network board (1+1 or N+1 backup, depending on the specific model), supporting hot plugging. |
| Power Module | Redundant power supply (1+1 or 2+2 backup), supports AC/DC, and supports hot swapping. |
| Cooling System | Intelligent speed regulating fan frame, supporting front and rear ventilation design. |
| Business Slot | Provide 6 business slots and support flexible combinations of business cards. |
| Common Business Cards | 10GE/25GE optical interface board |
| 40GE/100GE optical interface board | |
| 400GE optical interface board | |
| 10GE/40GE/100GE cluster line card | |
| POS/POS interface board | |
| E1/STM-1 interface board | |
| Ethernet electrical interface board | |
| Routing Protocol | IPv4/IPv6 dual stack: static routing, RIP, OSPF, IS-IS, BGP, etc |
| • Multicast: PIM-SM/DM/SSM, IGMP, MSDP | |
| • MPLS： LDP、RSVP-TE、MPLS VPN（L2/L3）、SR-MPLS、SRv6 | |
| Features and Functions | • High reliability: NSR/NSF, FRR (IP/MPLS Fast Rerouting) Eth-OAM/BFD |
| • Service quality: Comprehensive HQQoS, supporting hierarchical scheduling and congestion management | |
| Security: ACL, firewall URPF、CPCAR、IPSec VPN | |
| SDN and Automation: Supports NETCONF/YANG, Telemetry, and can be integrated into iMaster NCE (Huawei Autonomous Driving Network Management System) | |
| Clock synchronization: Supports 1588v2 (PTP) and synchronous Ethernet | |
| Typical Applications | Large enterprise/park network core router |
| • Data center exit/boundary router | |
| • Operating mall domain network/IP bearer network edge access/aggregation node | |
| Key industry backbone nodes such as finance, government, and energy |
