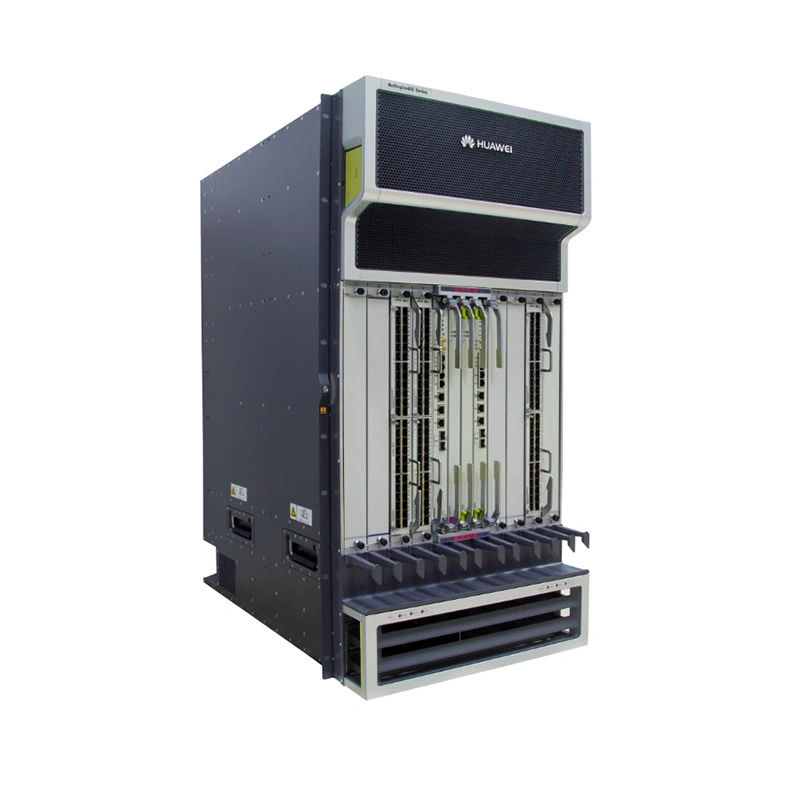

NE40E-X8A Huawei WAN router 115.71 Tbps 24000 Mpps enterprise router 2 MPU Slots
The Huawei NE40E-X8A is a high-end enterprise grade full-service router launched by Huawei, mainly aimed at operators and large enterprise network scenarios. This device adopts a modular architecture, supports multi service board expansion, has large capacity data forwarding capability, and is suitable for complex network environments such as IP backbone networks and metropolitan area network edges.
Trade Information
● Model No.: NE40E-X8A
● size: 930*650*442mm
● Place of Origin: Guangdong, China
● Place of use: Operators, core layers of large enterprises, and data centers
● Warranty: 1 years
● MOQ: 1 pieces
Introduction
The device is equipped with 12 expansion slots, with a maximum packet forwarding rate of 800Mpps. It supports routing protocols such as RIP/OSPF/BGP-4 and MPLS VPN function, complies with RFC2547bis standard, and achieves cross domain business integration. Adopting a distributed forwarding architecture, the main control board is designed with 1:1 redundancy and 2+2 redundancy for power supply, providing a switching capacity of 48.41Tbps, a typical power consumption of 4100W, and a working temperature range covering -5 ℃ to 55 ℃. Built in HQQoS mechanism, supporting service quality assurance technologies such as DiffServ/MPLS TE tunnels, compatible with IPv4/IPv6 dual stack protocols.
Parameters
| Feature | Parameter Description |
| Product Positioning | High end cluster router, used for national/provincial backbone network core and ultra large scale network core nodes. |
| Form | Distributed multi rack cluster system. The basic unit is an 8-slot line card machine frame, which is cascaded with multiple frames through cluster backboards or cluster line cards. |
| Frame Specifications | 21U high (mainframe), designed for standard cabinet installation. |
| System Architecture | Distributed forwarding, separated main control, switching network board, and business board. All key components (main control, switching network, power supply, fans) are fully redundant. |
| Single Shelf Exchange Capacity | ≥80 Tbps |
| Single Frame Packet Forwarding Rate | ≥ 30 Bpps (billions of packets per second). |
| Cluster Capability | Maximum support for multi frame clusters (such as combinations of 2+4, 4+8, etc., with the first digit representing the number of control frames and the last digit representing the number of line card frames). |
| The total capacity after clustering can reach hundreds of Tbps or even exceed 1Pbps, achieving smooth expansion. | |
| Master Control Unit | Independent Control Unit (SRU) with N+1 redundancy, responsible for overall routing calculation and management. |
| Exchange Network Board | Independent lossless switching network board (SFU), N+M redundancy (such as 4+1), providing huge intra rack and cluster interconnection bandwidth. |
| Power System | Redundant power module, supporting multiple inputs including High Voltage Direct Current (HVDC), AC, and DC, with N+M backup. |
| Cooling System | Multi fan tray, supporting front and rear ventilation, intelligent speed regulation. |
| Business Slot | The single rack provides 8 business slots (for installing various high-speed line cards). |
| Interface Type and Density | Supports the most comprehensive and high-speed interface cards in the industry, including: |
| High density 100GE/200GE/400GE interface board | |
| 2-port/4-port 800GE interface board (depending on software and hardware versions) | |
| 10GE/25GE/40GE interface board | |
| • POS/CPOS, E1 and other traditional interface boards | |
| Routing Protocol | Fully support large-scale network routing protocols: |
| IPv4/IPv6: Full range of IGP/EGP (OSPF, IS-IS, BGP), supporting massive routing table entries. | |
| • Multicast: Large scale multicast routing. | |
| MPLS/SR: Complete MPLS (L2/L3 VPN, TE) and Segment Routing (SR-MPLS, SRv6), supporting smooth evolution. | |
| Core Features | Telecom grade reliability: 99.999% availability, fully redundant main control/network board/power supply, NSR/NSF、GR、FRR。 |
| • Large capacity buffer: for Internet traffic model optimization, it is equipped with massive packet buffer to deal with sudden traffic. | |
| Refined QoS: Supports hierarchical HQQoS, enabling precise scheduling and management of massive users and businesses. | |
| Advanced security: integrates ACL, firewall, attack prevention, IPSec VPN and other functions. | |
| • Intelligence and Visualization: Supports real-time telemetry data collection, integrates with iMaster NCE, and achieves intelligent operation and optimization. | |
| Typical Applications | National level IP backbone network core node |
| • Core of inter provincial/metropolitan area networks for large telecom operators | |
| • Internet international exports, national hubs | |
| • Core/Interconnection Nodes (DCI) of Very Large Scale Cloud Service Providers (CSP) Data Centers | |
| National strategic engineering network hubs such as "East Calculation and West Calculation" |
