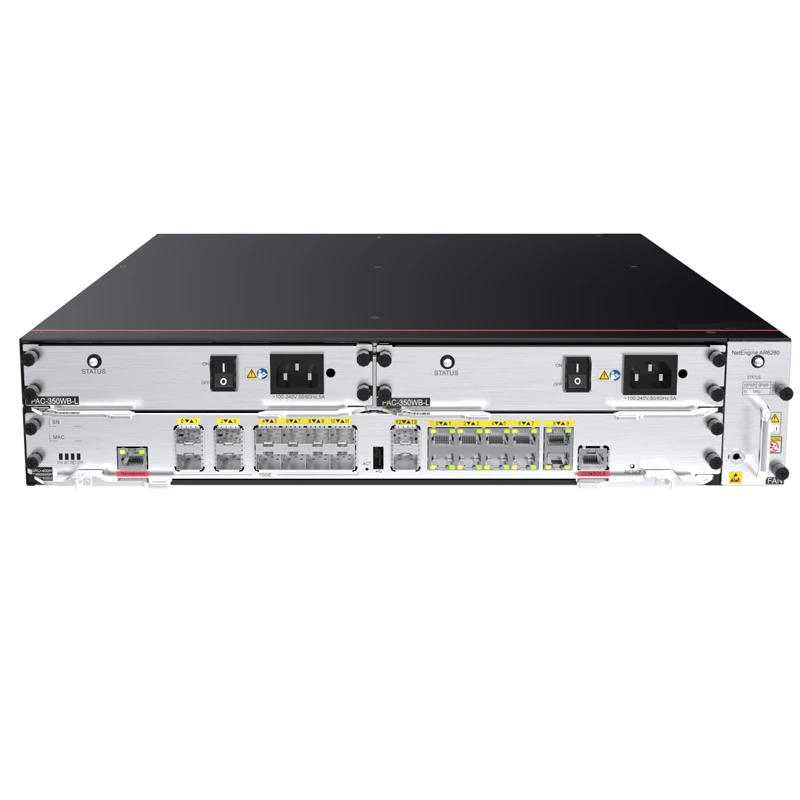

Network Access Routers Netengine AR6280 With 1*SRU slot, 4*SIC slot, 2*WSIC slot
● Model No.:AR6280
● Size: 185 mm x 585 mm x 740 mm
● Manage ports:1×RJ45 Console、1×USB 2.0
● Place of Origin: Guangdong, China
● Core strengths: 14 × 10GE optical+10 × GE electrical, 4 × SIC+6 × WSIC+4 × XSIC expansion, 16 core ARM, ultra-high forwarding, strong IPSec, dual power redundancy, routing/switching/security/SD-WAN integration
● Warranty: 1years
● MOQ: 1 pieces
Application scenarios
1. Export gateway for large enterprise headquarters: This is its most core application scenario. In the headquarters of large enterprises, it is necessary to connect multiple high-speed links (such as 10GE special line, Internet) and provide Internet services for thousands of employees. The AR6280's 14 10GE optical ports, 10 GE electrical ports, and 12 Gbps NAT forwarding performance can support high bandwidth traffic such as daily office work, high-definition video conferencing, and cloud applications for all employees.
2. Core router for medium-sized enterprises: In medium-sized enterprises with 500-1000 employees, it can serve as a network core router, connecting to the wide area network upwards and aggregating multiple access switches downwards. Its modular design allows enterprises to gradually expand interface cards and processing capabilities according to business development, protecting investments.
3. Core node of SD-WAN networking: Built in SD-WAN function, it can serve as the core node (hub) of enterprise SD-WAN network, realizing intelligent routing and optimized connection between branches and headquarters, and between branches. Supports 20 Gbps SD-WAN forwarding performance (1400 bytes), capable of supporting the traffic aggregation needs of large-scale SD-WAN networking.
4. Multi service convergence node: integrates routing, switching VPN、 Integrating multiple functions such as security, voice, MPLS, etc. Multiple business cards such as 5G/LTE, E1/T1, voice, and firewall can be expanded through 4 SIC slots, 2/6 WSIC slots, and 2/4 XSIC slots to meet the diversified business development needs of enterprises in the future.
Core functional characteristics
- 1. Routing and Switching
- Supports IPv4/IPv6 dual stack, static routing RIP、OSPF、BGP、IS‑IS
- Support MPLS, L3VPN, VPLS, EVPN, QinQ, VLAN, port aggregation, and stacking
- Support NAT, PAT, port mapping, traffic control (QoS), ACL access control
- 2. VPN and Security
- Supports various VPNs such as IPSec, GRE, L2TP, SSL VPN, EVPN, etc
- Built in firewall, URL filtering, Intrusion Prevention (IPS), AAA authentication, URPF attack prevention
- Support management of plane security, SSH, SNPv3, NETCONF/YANG encryption management
- 3. High reliability and operation and maintenance
- Support high reliability features such as VRRP, BFD, FRR, NSR, GR, etc
- Support ZTP zero configuration, USB opening, iMaster NCE centralized control
- Support multiple operation and maintenance methods such as Web, CLI, SNMP, NETCONF, etc
- 4. Multi WAN and SD-WAN
- Support multi WAN load balancing, intelligent routing, link backup, 5G/4G backup
- Fully supports Huawei SD-WAN solutions, including intelligent traffic scheduling, application recognition, and SLA guarantee
- Compatible with cloud platforms (Huawei Cloud, AWS, Azure, etc.), supporting cloud edge collaboration
Detailed description
| Item | Specification |
|---|---|
| Installation type | Rack |
| Chassis height [U] | 2 U |
| Dimensions without packaging (H x W x D) [mm(in.)] |
|
| Dimensions with packaging (H x W x D) [mm(in.)] | 185 mm x 585 mm x 740 mm (7.28 in. x 23.03 in. x 29.13 in.) |
| Weight with packaging [kg(lb)] | 12 kg (26.45 lb) |
| Weight without packaging [kg(lb)] | 8.85 (19.51) |
| Number of service board slots | 8 |
| MIC slots (default/maximum) | 0/0 |
| SIC slots (default/maximum) | 4/4 |
| WSIC slots (default/maximum) | 2/6 |
| XSIC slots (default/maximum) | 2/2 |
| RPS input | Not supported |
| PoE | Not supported |
| IP rating | IP20 |
| MTBF [years] | 27.55 years |
| MTTR [hours] | 2 hours |
| Availability | 0.9999929422 |
| Power supply mode | Pluggable AC/HVDC and pluggable DC |
| Number of power modules | 2 |
| Rated input voltage [V] |
|
| Input voltage range [V] |
|
| Maximum input current [A] | Depending on the power modules that is used |
| Maximum output power [W] | Depending on the power modules that is used |
| Redundant power supply |
|
| Types of fans | Pluggable |
| Number of fan modules | 1 |
| Heat dissipation mode | Air cooling |
| Airflow | Left-to-right airflow |
| Noise at normal temperature (acoustic power) [dB(A)] | 54.2 dB(A) |
| Long-term operating temperature [°C(°F)] |
0°C to 45°C (32°F to 113°F) NOTE:
When the altitude is 1800–5000 m (5906–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH, non-condensing |
| Long-term operating altitude [m(ft.)] | < 5000 m (16404.2 ft.) |
| Storage temperature [°C(°F)] | -40°C to +70°C (-40°F to +158°F) |
| Overtemperature alarm | Supported |
