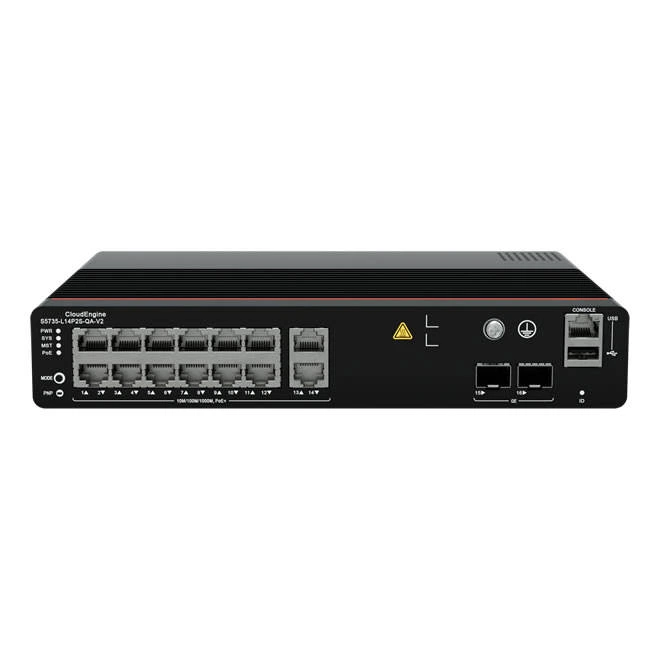

Network Switch S5735-L14P2S-QA-V2 Desktop Enterprise Switch with 2*GE SFP ports
● Model No.: S5735-L14P2S-QA-V2
● Size:110 mm x 300 mm x 355 mm
● Port details: 14*10/100/1000BASE-T ports, 2*GE SFP ports, PoE+, 247 W PoE, built-in AC power, Fanless
● Place of Origin: Guangdong, China
● Place of use: LACP, QoS, SNMP, Stackable, VLAN Support
● PoE: supported
● Warranty: 1years
● MOQ: 1 pieces
Application scenarios
1. Wireless network deployment: Used in conjunction with Wi Fi 6/7 APs, powered by PoE, eliminating the need for separate power sockets for APs and simplifying wiring.
2. IP video surveillance: provides data and power for high-definition/4K network cameras, suitable for retail, park, building and other scenarios.
3. IP voice communication: Provides power for IP phones, ensures voice quality, and supports Voice VLAN functionality.
4. Silent environment: For noise sensitive scenarios such as healthcare, education, and offices, the fanless design ensures complete silence
Introduction
1. Limited upstream bandwidth: With only 2 Gigabit SFP optical ports, the aggregation bandwidth capability is weaker compared to the 10 Gigabit upstream model. If high bandwidth uplink is required, please consider other models.
2. Fixed PoE power budget: The total power of 247W needs to be allocated reasonably. If high-power devices (such as PTZ cameras and high specification APs) need to be connected, the number of ports needs to be calculated - up to 8 ports can be fully supplied under 802.3at (30W).
3. Does not support redundant power supply: Built in single power supply, unable to achieve 1+1 backup of power supply, and does not support RPS input
Detailed description
| Item | Specification |
|---|---|
| Dimensions without packaging (H x W x D) [mm(in.)] | Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 250.0 mm x 245.0 mm (1.72 in. x 9.84 in. x 9.65 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 250.0 mm x 250.0 mm (1.72 in. x 9.84 in. x 9.84 in.) |
| Dimensions with packaging (H x W x D) [mm(in.)] | 110 mm x 300 mm x 355 mm (4.33 in. x 11.81 in. x 13.98 in.) |
| Chassis height [U] | 1 U |
| Chassis material | Metal |
| Weight without packaging [kg(lb)] | 2.58 kg (5.69 lb) |
| Weight with packaging [kg(lb)] | 3.2 kg (7.05 lb) |
| Typical power consumption [W] | 21.67 W |
| Typical heat dissipation [BTU/hour] | 73.94 BTU/hour |
| Maximum power consumption [W] |
|
| Maximum heat dissipation [BTU/hour] |
|
| Static power consumption [W] | 14.88 W |
| MTBF [years] | 59.25 years |
| Availability | > 0.99999 |
| Noise at normal temperature (acoustic power) [dB(A)] | Noise-free (no fans) |
| Noise at normal temperature (acoustic pressure) [dB(A)] | Noise-free (no fans) |
| Number of card slots | 0 |
| Number of power slots | 0 |
| Number of fans modules | 0 |
| Redundant power supply | Not supported |
| Long-term operating temperature [°C(°F)] | –5°C to +45°C (23°F to 113°F) at an altitude of 0 to 1800 m (0 to 5905.44 ft.) |
| Restriction on the operating temperature variation rate [°C(°F)] | When the altitude is 1800–5000 m (5906–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). Devices cannot start when the temperature is lower than 0°C (32°F). |
| Storage temperature [°C(°F)] | –40°C to +70°C (–40°F to +158°F) |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH, non-condensing |
| Long-term operating altitude [m(ft.)] | 0–5000 m (0–16404 ft.) |
| Storage altitude [m(ft.)] | 0-5000 m (0-16404 ft.) |
| Power supply mode | AC built-in |
| Rated input voltage [V] |
|
| Input voltage range [V] |
|
| Maximum input current [A] | 6 A |
| Memory | 2 GB |
| Flash memory | Physical space: 1 GB |
| Console port | RJ45 |
| Eth Management port | Not supported |
| USB | Supported |
| RTC | Not supported |
| RPS input | Not supported |
| Service port surge protection [kV] | Common mode: ±6 kV |
| Power supply surge protection [kV] | Differential mode: ±6 kV; common mode: ±6 kV |
| Ingress protection level (dustproof/waterproof) | IP30 |
| Types of fans | None |
| Heat dissipation mode | Natural heat dissipation |
| Airflow direction | - |
| PoE | Supported |
| Certification | EMC certification Safety certification Manufacturing certification |
