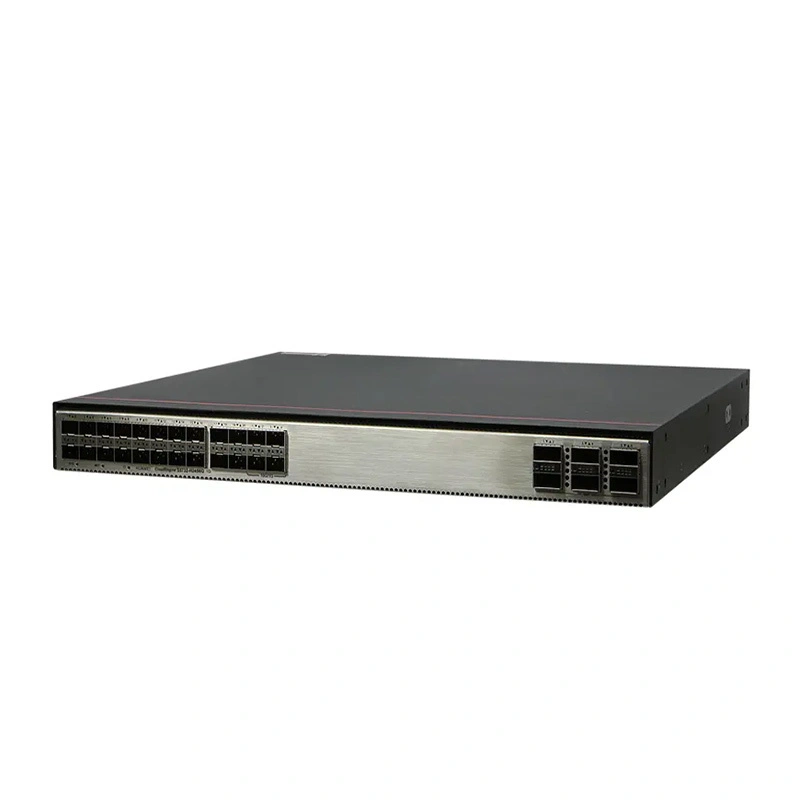

Network Switch S6730-H24X6C Desktop Enterprise Switch with 24 port
The Huawei CloudEngine S6730 series switch is a new generation of 10 Gigabit box type switch, which features high performance, high reliability, and intelligent operation and maintenance.
S6730-H series: It is a high-density 10GE access switch that provides 10GE downlink and 100GE uplink connections for enterprise parks, operators, etc. It integrates WLAN AC function, can manage up to 1024 APs, supports VXLAN virtual networks, and can also achieve intelligent operation and maintenance through Telemetry technology.
The Huawei CloudEngine S6730 series switch is a new generation of 10 Gigabit box type switch, which features high performance, high reliability, and intelligent operation and maintenance.
S6730-H series: It is a high-density 10GE access switch that provides 10GE downlink and 100GE uplink connections for enterprise parks, operators, etc. It integrates WLAN AC function, can manage up to 1024 APs, supports VXLAN virtual networks, and can also achieve intelligent operation and maintenance through Telemetry technology.
S6730-H series: It is a high-density 10GE access switch that provides 10GE downlink and 100GE uplink connections for enterprise parks, operators, etc. It integrates WLAN AC function, can manage up to 1024 APs, supports VXLAN virtual networks, and can also achieve intelligent operation and maintenance through Telemetry technology.
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Trade Information
● Model No.: S6730-H24X6C
● Chair size: Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.4 in. x 16.5 in.)
Maximum dimensions (the depth is the distance from ports on the front panel to the handle on the rear panel): 43.6 mm x 442.0 mm x 446.0 mm (1.72 in. x 17.4 in. x 17.6 in.)
● Material: metal plastic
● Place of Origin: Guangdong, China
● Place of use: LACP, QoS, SNMP, Stackable, VLAN Support
● Frame color: black
● Warranty: 1years
● MOQ: 1 pieces
Introduction
Typical application scenarios
Park network core/aggregation layer: suitable for industries such as education and manufacturing, providing high-density 10G access (such as server clusters). Data center access: Low latency forwarding is achieved through 40GE/100GE uplink, supporting cloud management.
Multi industry deployment
In scenarios such as transportation and healthcare, relying on their security features (such as anti DDoS attacks) and wide temperature operation capabilities.
Detailed description
|
Item |
Description |
| Memory (RAM) | 4 GB |
| Flash | 2 GB in total. To view the available flash memory size, run the display version command. |
| Mean time between failures (MTBF) | 62.27 years |
| Availability | > 0.99999 |
| Service port surge protection | N/A |
| Power supply surge protection |
|
| Dimensions (H x W x D) |
|
| Weight (with packaging) | 8.9 kg (19.62 lb) |
| Stack ports |
|
| RTC | Supported |
| RPS | Not supported |
| PoE | Not supported |
| Rated voltage range |
|
| Maximum voltage range |
|
| Maximum power consumption (100% throughput, full speed of fans) | 254 W |
| Typical power consumption (30% of traffic load, tested according to ATIS standard) | 149 W |
| Operating temperature | -5°C to +45°C (23°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.) Note: When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). The switch cannot be started when the ambient temperature is lower than 0°C (32°F). The operating temperature of the switch is -5°C to 40°C (23°F to 104°F) when it uses QSFP-100G-ER4 optical module. |
| Storage temperature | -40°C to +70°C (-40°F to +158°F) |
| Noise under normal temperature (27°C, sound power) | < 65 dB(A) |
| Relative humidity | 5% to 95%, noncondensing |
| Operating altitude | 0-5000 m (0-16404 ft.) |
| Certification |
|
| Part number | 02352FSG 02352FSG-001 02352FSG-005 02352FSG-007 02352FSG-009 02353GFC 02353GFC-001 02353GFC-003 02353GFC-004 |
