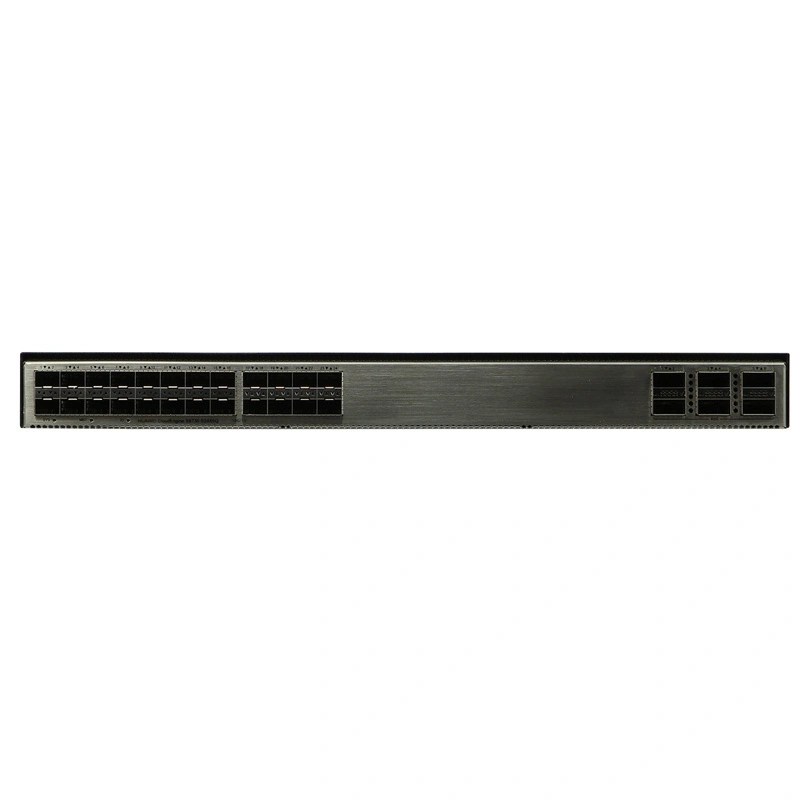

Network Switch S6730-S24X6Q-V2 Enterprise Core Switch with 6*40GE QSFP28 ports
S6730-S24X6Q-V2 is an enhanced box type 10 Gigabit access switch in the Huawei CloudEngine S6730-H/S series, designed specifically for small and medium-sized data centers and high-performance campus networks, with high-density 10 Gigabit access, low latency forwarding, and future smooth upgrade capabilities.
interface configuration
24 10G SFP+optical ports: supporting 10G/2.5G/1G adaptive, meeting high-density terminal access requirements (such as servers, cameras, wireless APs, etc.).
6 40G/100G QSFP28 upstream ports: default support for 40G, can be upgraded to 100G through RTU License to meet future bandwidth expansion needs
product Information
● Model No.: S6730-S24X6Q-V2
● Size: 442*420*43.6mm
● Port details: 24 10GE SFP+ports, 6 40GE QSFP28 ports (can be upgraded to 100GE through RTU license)
● Main features:VLAN support，QoS function，Link aggregation，Generative Tree Protocol，Stacking function，VXLAN support，Support MACsec function
● Application scenarios: Large scale park aggregation/access, core of small and medium-sized parks, edge access of data centers
● Warranty: 1 years
● MOQ: 1 pieces
Introduction
Key Features
High performance forwarding: 24 × 10GE high-density access+6 × 40GE/100GE high-speed uplink, meeting the requirements of non blocking forwarding for high traffic services, compatible with Wi Fi 6/6E and IoT terminal access.
Intelligent operation and cloud management: Supports real-time data collection from Telemetry, visualization of CampusInsight experience, business portability (unified user identity across the entire network, access location does not affect permissions and experience), and supports full lifecycle cloud management.
Network virtualization and simplified operation and maintenance: supports VxLAN L2/L3 gateways, centralized/distributed gateways BGP-EVPN， One network with multiple uses to improve utilization rate; Support SVF as the parent node to manage access switches and APs, achieving minimalist operation and maintenance of the 2-layer AS architecture.
High reliability and safety: Power/fan redundancy ensures uninterrupted business operations; Built in security probe, supports iPCA quality perception (real-time statistics of packet loss quantity and rate), Netconf configuration, and enhances network stability and security.
Typical application scenarios
Large scale park aggregation/access: 24 ports of 10GE are compatible with high-density terminal access, and 6 ports of high-speed uplink meet the aggregation and forwarding needs.
Core of small and medium-sized parks: responsible for forwarding network traffic, supporting VXLAN and BGP-EVPN to achieve business isolation and flexible expansion.
Data center edge access: compatible with 10GE server access and cross rack 40GE/100GE high-speed interconnection, supporting network virtualization and cloud management
Parameters
| Specific parameters | Detailed description |
| Product Type | Enterprise level 10 Gigabit Ethernet switch (box type) |
| Application Layer | Layer 2/3 (supporting IPv4/IPv6 dual stack) |
| backplane bandwidth | 4.8Tbps (full duplex) |
| Packet forwarding rate | 1620Mpps (line speed forwarding) |
| switching capacity | 4.8Tbps (supports future upgrades to higher bandwidth) |
| MAC Address Table | Supports up to 128K MAC entries |
| VLAN function | Supports 4K VLANs, Guest VLAN, Voice VLAN, GVRP protocol, MUX VLAN, etc |
| Fixed port | 24 10G SFP+optical ports, 6 40G/100G QSFP28 upstream ports |
| Port speed | 10G/2.5G/1G adaptive (SFP+optical port), 40G/100G (QSFP28 upstream port, requires RTU license upgrade to 100G) |
| Port description | 24 10G SFP+Ethernet optical interfaces are mainly used for receiving and transmitting GE/2.5GE/10GE services; 6 40G/100G QSFP28 Ethernet optical interfaces default to 40GE interfaces, supporting the use of 100GE RTU License to upgrade interfaces to 100GE interfaces |
| management interface | 1 Console interface (RJ45), 1 ETH management interface (RJ45), 1 USB interface (USB 2.0 Type A) |
| Stacking support | Support stacking multiple devices, simplify management, and enhance network scalability |
| VXLAN support | Support distributed gateway and centralized gateway, achieve dynamic tunnel establishment through BGP-EVPN, and meet the requirements of network virtualization |
| QoS strategy | Support stream classification based on Layer 2 to Layer 4, support ACL, CAR, Remark, Schedule and other actions, as well as queue scheduling algorithms such as PQ, DRR, PQ+DRR, etc |
| multicast management | Support IGMP v1/v2/v3 Snooping, PIM-SM/DM/SSM, MSDP, and multicast VPN |
| Redundant design | Support 1+1 power redundancy backup, optional 600W AC/DC power module or 1000W DC power module; Supports 4 pluggable fan modules and intelligent speed regulation |
| security features | Support MACsec encrypted communication to prevent data eavesdropping; Support 802.1x authentication, AAA authentication, and RADIOUS/HWTACACS authentication; Support port isolation, port security, Sticky MAC, and NAC functions; Support anti DOS/ARP attacks, ICMP attacks, and IP/MAC/port/VLAN binding; Support encrypted communication analysis (ECA) and threat trapping technology (Deception) |
| Cloud management support | Realize full lifecycle cloud management, including planning, deployment, monitoring, fault repair, and network optimization |
| Intelligent Operations | Support Telemetry and iPCA quality perception, real-time collection of network data and precise fault location; Support NetStream traffic statistics and Virtual Cable Test; Provide web network management interface and mobile app management to simplify configuration and monitoring processes |
| environmental adaptability | Working temperature: -5 ° C to+45 ° C (altitude 0m to 1800m), with a maximum temperature decrease of 1 ° C for every 220m increase; Storage temperature: -40 ° C to+70 ° C; Relative humidity: 5% to 95% (non condensing); Noise: The sound pressure level at room temperature is 52dB (A), suitable for deployment in open office areas |
| Dimensions (width x depth x height) | Basic dimensions: 442mm × 420mm × 43.6mm (excluding packaging materials); Maximum size: 442mm × 446mm × 43.6mm (including protruding structural components); Dimensions including packaging materials: 650mm × 550mm × 175mm |
| Chassis height | 1U |
| material | metal case |
| weight | Excluding packaging materials: 5.62kg; including packaging materials: 8.9kg |
