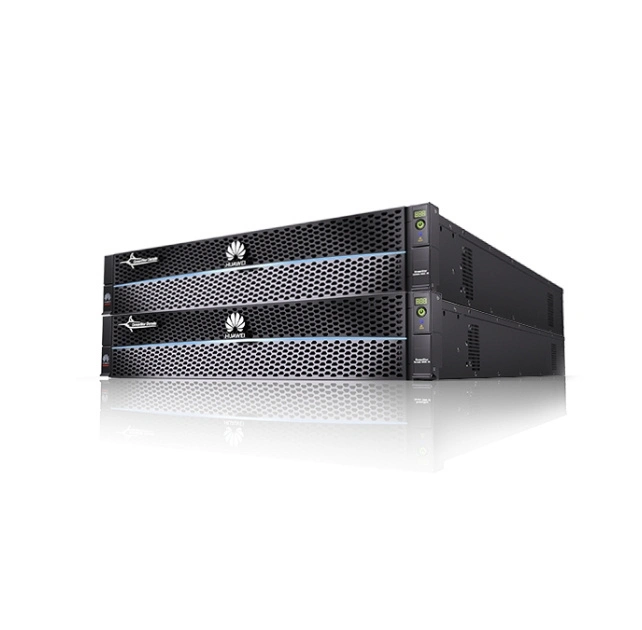

Next generation OceanStor Dorado 5000 V6 Mid-range All-Flash Data NAS Storage
Model No.: OceanStor Dorado 5000 V6
Size: 2U， About 27kg
SSD capacity
NVMe: 1.92TB -30.72TB (including encrypted/capacity optimized); SAS：960GB–15.36TB
Main features: Ultimate performance, ultra-high reliability, strong scalability, AI intelligence, and integrated architecture
Application scenarios: Core database cluster, AI training and inference, ultra large scale virtualization/cloud platform, VDI/cloud desktop, financial/medical/government core, large enterprise IT core
Warranty: 1 years
MOQ: 1 pieces
Application scenarios
Core Financial Transactions: Supports core banking systems, securities trading, and payment clearing; microsecond-level latency ensures transaction performance, and 99.99999% reliability guarantees fund security.
Large Enterprise Core Databases: Hosts OLTP databases such as Oracle, MySQL, and SQL Server, supporting ultra-large-scale concurrent access.
AI and Big Data: Meets the high bandwidth and low latency requirements of AI training, data analysis, and machine learning, accelerating model training and data processing.
Massive Data Lake: Unifies the storage of structured, unstructured, and semi-structured data, supporting petabyte-level data storage and analysis.
Telecommunications/Healthcare/Government: Meets the 24/7 high availability and data security requirements of critical businesses such as telecommunications billing, medical imaging, and government data.
Core selling points
1. SmartMatrix 4.0 global interconnection, ultimate reliability
2. Kunpeng+DPU+AI hardware acceleration, dual peak performance and intelligence
3. 16 controls+3200 disks, super large scale expansion
4. Full scenario data protection, security compliance
5. AI intelligent operation and maintenance, minimalist and efficient
6. Green energy saving, optimal TCO
Parameters
| parameter item | Specifications |
| Product Model | OceanStor Dorado 5000 V6 (including 5300/5500/5600 sub models) |
| form | 2U rack mounted, SmartMatrix 4.0 global interconnection AA architecture |
| controller | Dual control start, maximum 16 controls; Single control: Kunpeng 920 64 core+DPU+AI acceleration |
| System cache | 256GB – 4TB (dual control starting from 256GB, expandable with control) |
| Maximum number of SSDs | 3200 pieces (NVMe+SAS SSD) |
| SSD capacity | NVMe: 1.92TB -30.72TB (including encrypted/capacity optimized); SAS: 960GB – 15.36TB |
| front-end interface | 8/16/32/64Gbps FC/FC‑NVMe、10/25/40/100Gbps Ethernet、25/100Gbps NVMe‑o‑RoCE/NFS‑o‑RDMA |
| Backend/Interconnection | 100G RDMA global interconnection SAS 3.0 |
| Maximum performance | 10 million IOPS, 0.05ms stable latency |
| RAID level | RAID 5/6/10/TP/Erasure Coding (tolerant of 3+disk failures) |
| Data reduction | SmartDedupe+SmartCompression+Deletion, 5:1 Typical Reduction Ratio |
| reliability | Level 5 reliability, 16 control full redundancy, cabinet level fault tolerance, 7 9s (99.99999%) reliability |
| protocol support | Block (FC/iSCI/NVMe oF), file (NFS/CIFS/RDMA), object fusion |
| Software features | HyperSnap/Clone/CDP、HyperReplication、HyperMetro、SmartQoS、 Ransomware detection, AI operation and maintenance |
| management | DeviceManager、CLI、SNMP、 Cloud management, RESTful API, AI conversational operation and maintenance |
| power consumption | Typical around 500W, with a 30% increase in energy efficiency |
| Size | 2U， About 27kg |
| Operating Temperature | 5℃–40℃ |
