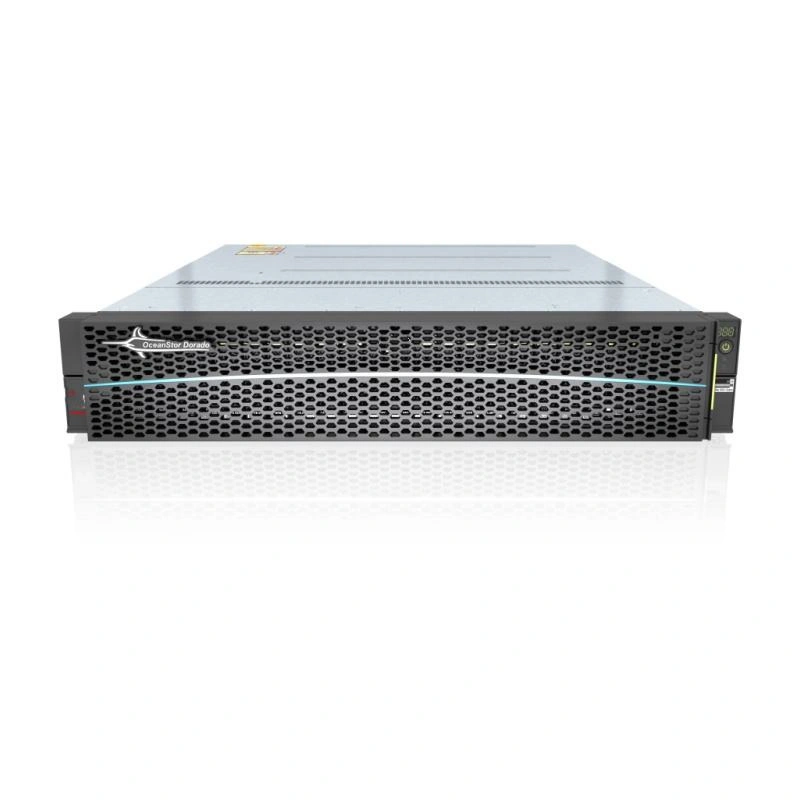

OceanStor Dorado 2000 V6 Networking All-Flash Data NAS Storage
Model No.: OceanStor Dorado 2000 V6
Size: 22U, About 25kg
Controller: Dual control start, maximum 8 controls; Single control: Kunpeng 920 24 core @ 2.6GHz
Feature: High performance, high reliability, easy operation and maintenance, low TCO, compatible with virtualization
Place of use: Small and medium-sized enterprise IT core base, database acceleration, VDI/cloud desktop, mixed load, edge/branch
Warranty: 1 years
MOQ: 1 pieces
Application scenarios
Core Databases for SMEs: Hosts OLTP databases such as MySQL, SQL Server, and PostgreSQL, ensuring low latency and transaction performance.
Virtualization/Cloud Platforms: Provides high-performance storage for VMware, Hyper-V, and KVM, supporting concurrent small-to-medium-scale virtual machines/containers.
Edge Nodes/Branch Rooms: Adaptable to enterprise branches, retail stores, and industrial sites; 2U size saves space; stable operation in wide temperature environments.
Mixed Business Loads: Unifies the hosting of mixed business operations such as office systems, file sharing, video surveillance, and backup archiving, simplifying network and maintenance.
Healthcare/Education/Government: Meets the high availability and data security requirements of critical businesses such as medical imaging, educational resources, and government data.
Main feature
Parameters
| parameter item | Specifications |
| Product Model | OceanStor Dorado 2000 V6 |
| form | 2U rack mounted, fully symmetrical AA architecture |
| controller | Dual control start, maximum 8 controls; Single control: Kunpeng 920 24 core @ 2.6GHz |
| System cache | 128GB – 512GB (dual control starting from 128GB) |
| Maximum number of SSDs | 400 pieces (SAS SSD) |
| SSD capacity | 960GB/1.92TB/3.84TB/7.68TB/15.36TB SAS-SSD |
| front-end interface | 8/16/32Gbps FC、1/10/25Gbps Ethernet、SmartIO（8/10/16/25/32Gbps） |
| Backend/Extension | Mini SAS HD, SAS 3.0 expansion box |
| Maximum performance | 4 million IOPS, 0.3ms stable latency |
| RAID level | RAID 5/6/10/TP (supports simultaneous failure of 3 disks) |
| Data reduction | SmartDedupe+SmartCompression， 3: 1. Typical reduction ratio |
| reliability | Controller fully redundant RAID-TP、 Global hot backup, fast refactoring, SSD wear balance |
| Software features | HyperSnap/Clone/CDP、HyperReplication、HyperMetro、SmartQoS、SmartThin、 encryption |
| management | DeviceManager、CLI、SNMP、 Cloud management RESTful API |
| power consumption | Typical power consumption is around 400W, with a 15% increase in energy efficiency and a 30% reduction in power consumption |
| Size | 2U， About 25kg |
| Operating Temperature | 5℃–40℃ |
