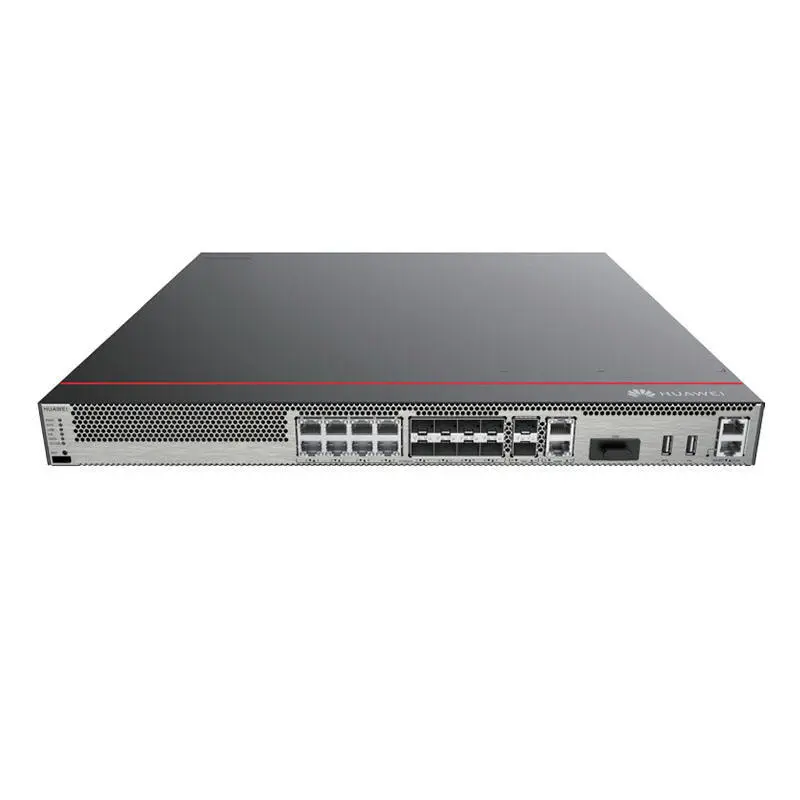

● Model No.: USG6715F
● Size: 442mm × 420mm × 43.6mm
● Interface configuration: 2×Combo GE (electro-optical multiplexer) + 8×FE (electrical port)
● Main features: Integrates routing, switching, security, and wireless functions.
● Application scenarios: Small and medium-sized enterprises, enterprise branches, and operator outlets
● Warranty: 1 years
● MOQ: 1 pieces
Core selling points
1. **Full-Service Convergence (Multi-functional):** Integrates routing, switching, firewall, IPS, AV, URL filtering, VPN, 3G/WiFi, and internet behavior management.
Supports three deployment modes: routing, transparent, and hybrid, seamlessly integrating with existing networks.
2. **High-Performance Security Processing:** Dedicated NP hardware acceleration for strong small packet forwarding performance and low latency.
Hardware encryption engine ensures no performance degradation for IPSec/SSL VPN.
Defends against DDoS attacks such as SYN Flood, UDP Flood, and port scanning.
3. **Rich Interfaces and Flexible Networking:** High-density GE/FE + multiple expansion slots, with a maximum interface density of 16×FE + 4×GE.
Supports 3G/4G wireless backup, ADSL, E1, and other WAN access.
Complete OSPF/RIP/BGP dynamic routing and VRRP/BFD high-reliability mechanisms.
Application scenarios
Telecom Operators: Provides security protection for the network edge and data centers of telecom operators, enabling real-time threat handling at the network edge.
SMEs and Branch Offices: Suitable for internet exits of SMEs, and edge security gateways for branch offices and data centers of large enterprises.
Unified Security Management for Multiple Branches: Enables unified configuration, management, and maintenance of multiple devices through the SecoManager controller, building a secure network across geographical regions.
Parameters
| parameter category | Specification Details |
| device form factor | 1U standard rack mounted |
| Fixed port | 2 x Combo GE (optoelectronic multiplexing)+8 x FE (electrical port) |
| expansion slot | 4 x MIC (Multi functional Card)+2 x FIC (High Speed Card) |
| extended interface | FE/GE/E1/CE1/ADSL2+/3G/WiFi/ATM, etc |
| Firewall throughput | 400Mbps~1Gbps (different sub models) |
| Maximum concurrent connection | 500000 to 2 million |
| New connection speed | 3,000~10,000 CPS |
| VPN performance | IPSec:100Mbps~300Mbps; Supports IPSec/SSL/L2TP/GRE |
| Memory/Storage | 256MB~1GB DDR; Built in Flash |
| power supply | Single/dual AC (100~240V), supports hot swapping |
| Size | 420 × 255 × 44.45mm; approximately 4kg |
| management style | Console、Web、CLI、SNMP、SecoManager |
