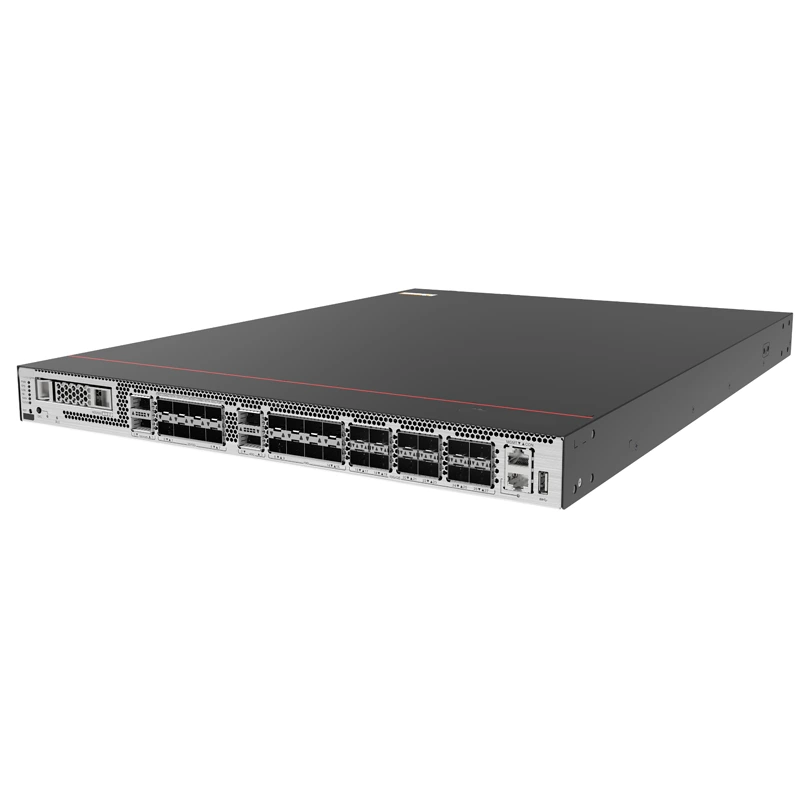

Security Firewall USG6715F Next-Generation Enterprise Firewall with 16×25GE port

Core selling points

The USG6715F features two 16-core 2.0 GHz high-performance CPUs (32 cores total) and 64GB of RAM, delivering a total throughput of up to 160 Gbit/s and an IPSec VPN throughput of 45 Gbit/s, with a maximum concurrent connection capacity of 50 million. Its built-in NP, pattern matching, and encryption/decryption coprocessor engines effectively improve small packet forwarding performance and reduce forwarding latency, providing ample performance for enabling advanced security features such as intrusion prevention and antivirus.

The USG6715F offers a rich variety of interface types, including two 100GE QSFP28 interfaces, two 40GE QSFP+ interfaces, eight 25GE SFP28 interfaces, and twenty 10GE SFP+ interfaces. This is a key difference between it and other models in the series, such as the USG6710F. It offers industry-leading port density in a compact 1U chassis, meeting the stringent requirements of large data centers and carrier backbone networks for ultra-high bandwidth.

Large Data Center Egress: Large data centers or cloud service providers can use this device as a core firewall. It has 100GE interfaces, enabling it to centralize traffic from multiple core switches or server clusters, providing high-performance security protection for north-south data transmission.

Carrier Backbone/Metropolitan Area Network Edge: Carriers have high requirements for network security compliance, performance, and reliability, and this device meets these requirements. Placing it at the edge of a carrier backbone or metropolitan area network can establish secure VPN encrypted channels for cross-regional network connections and provide unified management of security policies.

Mega-Enterprise and Campus Network Core: Mega-enterprise headquarters or large campuses can use this device as a core firewall. It can handle tens of thousands of simultaneous users and ensure the security of high-bandwidth services such as video conferencing and large data transmission.

ISP/IDC Service Providers: Hosted data centers or internet service providers can use this device as a core security gateway, providing high-performance, scalable security services to multiple customers.
