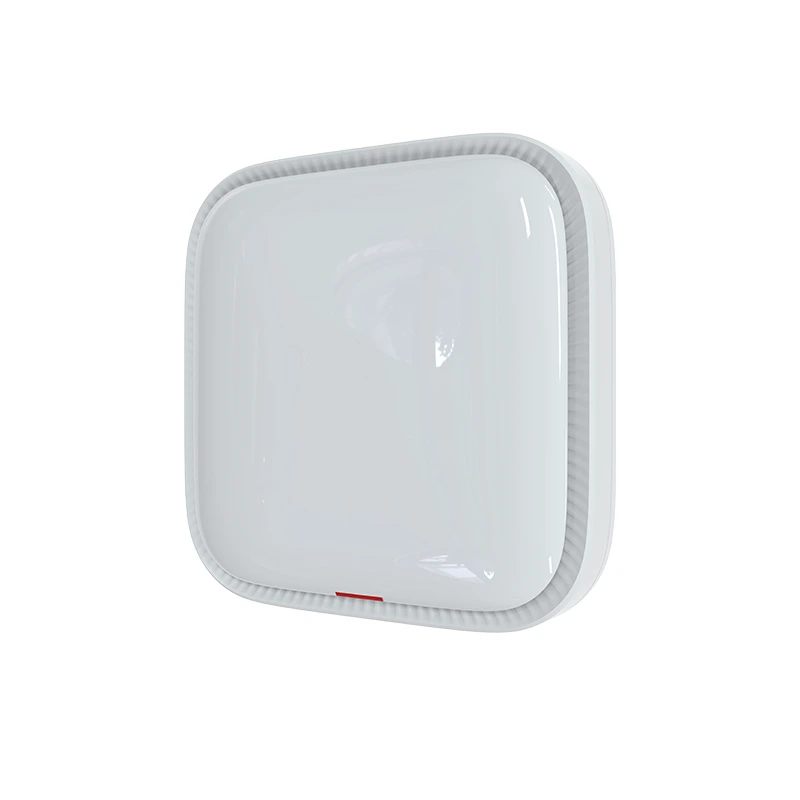

Wireless Access Point AirEngine 8760-X1-PRO 4+12 dual bands Indoor Access Point Settled Wifi Ap
● Model No.: AirEngine 8760-X1-PRO
● Size:61 mm x 220 mm x 220 mm
● Port details: 11ax indoor,Dedicated 3rd Radio,4+12 dual bands,smart antenna,USB,IoT Slot,BLE
● Place of Origin: Guangdong, China
● Interface and power supply: Dual RF ≤ 1024 users, triple RF ≤ 1152 users (actual affected by environment and bandwidth model); Working temperature -10 ℃~+50 ℃
● Warranty: 1years
● MOQ: 1 pieces
Application scenarios
1. High density office/conference rooms for large enterprises: This is their most core application scenario. In large office buildings, headquarters bases, video conference rooms, and other scenarios, there are hundreds or thousands of users accessing simultaneously. 16 spatial streams (16T16R) and 10.75Gbps machine speed can ensure a smooth experience under high-density access. The dynamic smart antenna automatically suppresses interference, and the signal moves with the user, covering no blind spots.
2. Sports venues/exhibition centers/large shopping malls: Equipped with dynamic zoom smart antennas that can switch dynamically between omnidirectional and high-density modes, automatically adapting to terminal tidal issues and ensuring the experience of thousands of users accessing simultaneously.
3. Smart Campus/Higher Education/General Education: In scenarios such as university libraries, large classrooms, and sports halls, it can support high bandwidth services such as 4K video teaching, virtual simulation experiments, and online exams. It can support up to 1152 concurrent users (in tri RF mode), meeting the intensive access needs of students.
4. AR/VR/4K high-definition video and other high traffic services: With a throughput of 10.75Gbps, it provides a fiber like network experience for AR/VR, 4K high-definition video and other high traffic services, ensuring smooth and seamless business operations.
5. Key industries such as government/finance/healthcare: Built in independent RF scanning module, real-time detection of interference, illegal devices, etc., combined with CampusInsight to achieve big data optimization, ensuring network security and stability
Core functional characteristics
1. Intelligent air interface optimization: dynamic zoom antenna (beam tracking)+SmartRadio (DFA dynamic channel+TPC power control); 802.11k/v/r/BSS Coloring ultra fast roaming (millisecond level switching); Airtime fair scheduling ensures low latency for high priority services
2. Security and authentication: WPA3, 802.1X, MAC, Portal, certificate authentication; Wireless threat detection, illegal AP location, encrypted traffic analysis; Unified security policy linkage with iMaster NCE Campus
3. SDR RF flexible switching: three mode configuration on demand - dual RF is preferred for high bandwidth (5G 12 × 12); High density access selects three radio frequencies to split 5G; enables independent scanning of radio frequencies in high interference environments, dedicated detection and optimization, without occupying business radio frequency resources
4. Unified operation and maintenance: supports eSight, iMaster NCE Campus visual network management, one click fault diagnosis, AI root cause analysis, AP/user/traffic KPI monitoring
Detailed description
| Item | Specification |
|---|---|
| Installation Type |
|
| Dimensions without packaging (H x W x D) [mm(in.)] | 61 mm x 220 mm x 220 mm (2.40 in. x 8.66 in. x 8.66 in.) |
| Weight without packaging [kg(lb)] | 1.85 kg (4.08 lb) |
| Storage | NAND Flash 512 MB; NOR Flash 16 MB |
| Console port | BLE console |
| Maximum power consumption [W] | 55.0 (excluding USB and IoT cards) |
| Maximum heat dissipation [BTU/hour] | 187.6 (without USB or IoT card) |
| Power supply mode |
|
| Rated input voltage [V] | 48 V |
| Input voltage range [V] |
DC: 43.2 V to 57.6 V PoE: 802.3bt/at x 2 (When PoE power supply is used: If the power supply types of the two ports are different, the power supply in compliance with a later standard is used; if the power supply types of the two ports are the same, power supply backup is achieved.) |
| Service port surge protection |
PoE port: Differential mode (48 V-RTN): 0.5 kV (1.2/50 us, 42 ohms), criterion B Common mode (8 wires to ground): 6 kV (1.2/50 us, 42 ohms), criterion B |
| PoE OUT | Not supported |
| Maximum number of physical ports on the entire device |
10GE (RJ45) x 2, 10M/100M/1000M/2.5GE/5GE/10GE auto-sensing 10GE optical port (SFP+), GE/10GE auto-sensing |
| Long-term operating temperature [°C(°F)] | –10°C to +50°C (14°F to 122°F) (From 1800 m to 5000 m [5905.51 ft. to 16404.20 ft.], the maximum ambient temperature decreases by 1°C [1.8°F] for every 300 m [984.25 ft.] increase in altitude.) |
| Storage temperature [°C(°F)] | –40°C to +70°C (–40°F to +158°F) |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH, non-condensing |
| Long-term operating altitude [m(ft.)] | –60 m to +5000 m (–196.85 ft to +16404.20 ft) |
| Atmospheric pressure [kPa] | 53kPa - 106kPa ETSI 300 019-2-3 |
| Ground | Grounding |
| USB | USB 2.0 |
| IoT slot | IoT card |
| BLE | BLE5.2 |
| Radio number | 2/3 |
| Operating frequency band |
|
| MIMO spatial streams |
Triple-radio mode:
Dual-radio mode:
|
| Wi-Fi standard |
2.4 GHz: 802.11b/g/n/ax 5 GHz: 802.11a/n/ac/ac Wave 2/ax |
| Radio interface | Built-in smart antennas |
| Antenna gain |
2.4 GHz: 4 dBi 5 GHz: 5.5 dBi BLE: 4 dBi |
| Maximum transmit power |
2.4 GHz: 26 dBm 5 GHz: 31 dBm (Note: This is the total MIMO radio power, the same as: 2.4 GHz: 20 dBm/chain 5 GHz: 20 dBm/chain) BLE: < 10 dBm |
| Singal radio transmit power [dBm] |
2.4G: -10 dBm to 20 dBm/chain 5G: -10 dBm to 20 dBm/chain |
| MTBF [year] | 59.4 year |
| MTTR [hour] | 0.5 hour |
| Frequency stability [ppm] | +/-20 |
| 802.3bt power supply description |
When the AP is powered by 802.3bt class 8, no function is restricted. If dual 802.3bt class 6 power supplies are used, Wi-Fi:
Wired network port: No function is restricted. Other ports: Both one USB port and two IoT card slots are available. If the USB port or IoT card slots are used, the number of spatial streams, transmit power, and bandwidth may be affected. For details, contact your product manager. If single 802.3bt class 6 power supplies are used, Wi-Fi:
Wired network port: Two 10GE electrical ports and the SFP+ optical port work as combo ports. When one of them is working, the other two are unavailable. Other ports: Both one USB port and two IoT card slots are available. If the USB port or IoT card slots are used, the number of spatial streams, transmit power, and bandwidth may be affected. For details, contact your product manager. |
| 802.3at power supply description |
If dual 802.3at power supplies are used, Wi-Fi: If no USB port or IoT card slot is used, the radio power is self-adapted.
If the USB port or IoT card slots are used, the number of spatial streams, transmit power, and bandwidth may be affected. For details, contact your product manager. Wired ports: The rate of both 10GE electrical ports is reduced to GE or lower, and the SFP+ optical port is unavailable. Other ports: The 2.5 W USB and IoT card is mutually exclusive. That is, when one of them is working, the other is unavailable. The IoT card takes precedence. If the USB port or IoT card slots are used, the number of spatial streams, transmit power, and bandwidth may be affected. For details, contact your product manager. If single 802.3at power supply is used, Wi-Fi: If no USB port or IoT card slot is used, the radio power is self-adapted.
If the USB port or IoT card slots are used, the number of spatial streams, transmit power, and bandwidth may be affected. For details, contact your product manager. Wired ports: The rate of both 10GE electrical ports is reduced to 1 Gbit/s or lower, and work with the SFP+ optical port as combo ports. When one of them is working, the other two are unavailable. Other ports: The 2.5 W USB and IoT card is mutually exclusive. That is, when one of them is working, the other is unavailable. The IoT card takes precedence. If the USB port or IoT card slots are used, Wi-Fi can work only in 2.4 GHz (2x2) + 5 GHz (2x2) mode. For details, contact your product manager. |
| DC power supply description | No function is limited. |
