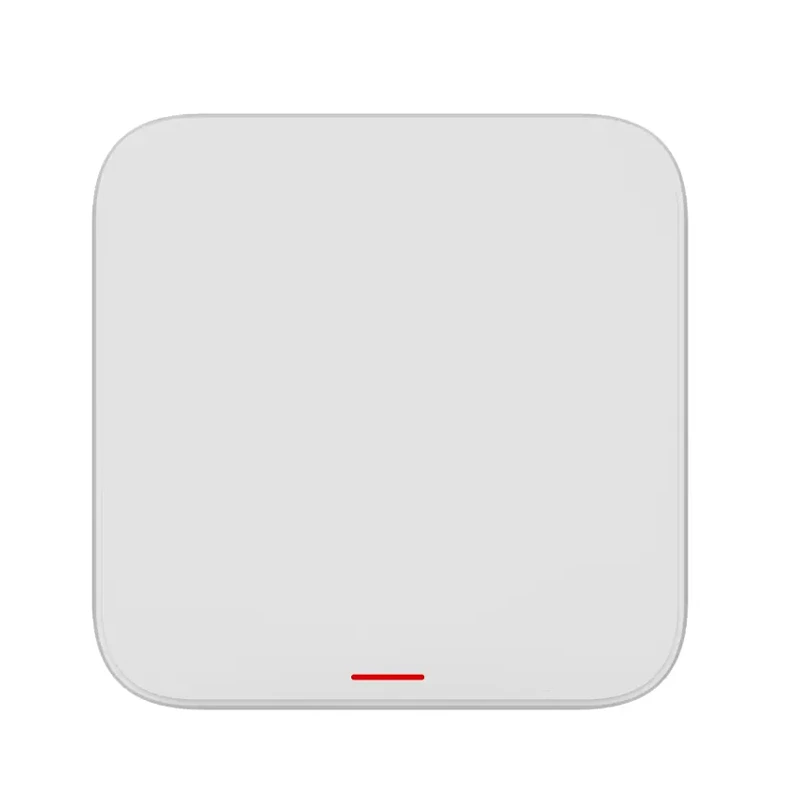

Wireless Access Point AirEngine 8761-X110GE+GE Wi-Fi 6 (802.11ax) Access Point (AP) 1
Wireless Access Point AirEngine 8761-X110GE+GE Wi-Fi 6 (802.11ax) Access Point (AP) 2
Wireless Access Point AirEngine 8761-X110GE+GE Wi-Fi 6 (802.11ax) Access Point (AP) 3
Wireless Access Point AirEngine 8761-X110GE+GE Wi-Fi 6 (802.11ax) Access Point (AP) 4
Wireless Access Point AirEngine 8761-X110GE+GE Wi-Fi 6 (802.11ax) Access Point (AP) 5
Wireless Access Point AirEngine 8761-X110GE+GE Wi-Fi 6 (802.11ax) Access Point (AP) 1
Wireless Access Point AirEngine 8761-X110GE+GE Wi-Fi 6 (802.11ax) Access Point (AP) 2
Wireless Access Point AirEngine 8761-X110GE+GE Wi-Fi 6 (802.11ax) Access Point (AP) 3
Wireless Access Point AirEngine 8761-X110GE+GE Wi-Fi 6 (802.11ax) Access Point (AP) 4
Wireless Access Point AirEngine 8761-X110GE+GE Wi-Fi 6 (802.11ax) Access Point (AP) 5

Wireless Access Point AirEngine 8761-X110GE+GE Wi-Fi 6 (802.11ax) Access Point (AP)

Huawei AirEngine 8761-X1 is an indoor dual band Wi Fi 6 (802.11ax) flagship AP, adopting 2.4G 4 × 4+5G 8 × 8 MIMO architecture, with 12 spatial streams and an air interface speed of 5.95Gbps. It comes standard with 10GE uplink and is designed for large and medium-sized enterprise high-density office, cloud desktop, 4K video conferencing and other high bandwidth scenarios, balancing performance and deployment flexibility

 Model No.: AirEngine 8761-X1

 Size:57 mm x 220 mm x 220 mm

 Port details11ax, indoor, 2.4G 4x4 + 5G 8x8 dual bands, smart antenna, 10GE+GE, USB, BLE

 Place of Origin: Guangdong, China

 positioningThe main focus of high-density and high bandwidth scenarios in enterprise parks is between the 5760 series and 8760-X1-PRO, with sufficient performance and more controllable costs.

 Warranty: 1years

 MOQ: 1 pieces

5.0
design customization

    oops...!

    no product data.

    Go to homepage

    Application scenarios

    1. High density office/conference rooms for medium and large enterprises: This is its most core application scenario. In large office buildings, headquarters bases, video conference rooms, and other scenarios, there are hundreds or thousands of users accessing simultaneously. 12 spatial streams (2.4G 4x4:4+5G 8x8:8) and 5.95Gbps machine speed ensure a smooth experience under high-density access. Built in smart antenna automatically suppresses interference, increasing coverage radius by 20% and signal strength by 100%, ensuring signal coverage without blind spots.

    2. Smart Campus/General Education/Higher Education: In scenarios such as university libraries, large classrooms, and sports halls, it can support high bandwidth services such as 4K video teaching, multimedia, and desktop cloud applications. It can support up to 1024 concurrent users, meeting the intensive access needs of students.

    3. Large shopping malls/exhibition centers: Built in smart antennas automatically adjust coverage direction and signal strength based on intelligent switching algorithms, adapting to changes in application environments and providing precise and stable coverage with the movement of terminals. 10GE upstream port solves the bottleneck of upstream bandwidth.

    4. AR/VR/HD video and other high traffic services: 5.95Gbps throughput provides a fiber like network experience for AR/VR, 4K HD video and other high traffic services, ensuring smooth and seamless business operations.

    5. Key industries such as government, finance, and healthcare: Support WIDS/WIPS attack detection to monitor, identify, prevent, and counteract illegal devices. Support multiple authentication and encryption methods such as WPA3 and PPSK to ensure wireless network security

    1 (104)
    2 (91)

    Core functional characteristics

    1. Intelligent air interface optimization with built-in dual frequency common interface intelligent antenna, automatically suppresses interference, increases coverage radius by about 20%, and significantly improves signal strength at the same location; Support SmartRadio (dynamic channel/power), 802.11k/v/r millisecond roaming, and joint scheduling of OFDMA/MU-MIMO to ensure low latency and high throughput in high-density scenarios.

    2. Security and operations support WPA3, 802.1X, Portal, MAC authentication, and wireless threat detection; Compatible with iMaster NCE Campus/eSight unified management, supporting cloud management and Bluetooth serial port operation and maintenance, with one click fault diagnosis.

    3. Flexible expansion of USB interface can extend IoT protocols such as ZigBee and RFID, adapting to smart parks and IoT scenarios; 10GE uplink eliminates bandwidth bottlenecks and balances current and future business needs.

    Detailed description

    Item Specification
    Installation Type
    • Wall
    • Ceiling (Solid Wall/Gypsum Board/Flat-Edge T-Rail)
    Dimensions without packaging (H x W x D) [mm(in.)] 57 mm x 220 mm x 220 mm (2.24 in. x 8.66 in. x 8.66 in.)
    Weight without packaging [kg(lb)] 1.8 kg(lb)
    Storage NAND Flash 512 MB
    Console port BLE console
    Maximum power consumption [W] 23.5 W (excluding USB)
    Maximum heat dissipation [BTU/hour] 80 BTU/hour
    Power supply mode
    • PoE
    • DC power adapter
    Rated input voltage [V] 48 V
    Input voltage range [V]

    DC: 43.2–57.6 V

    PoE: 802.3at

    Service port surge protection

    PoE port:

    Differential mode (48 V-RTN): 0.5 kV (1.2/50 us, 42 ohms), criterion B

    Common mode (8 wires to ground): 6 kV (1.2/50 us, 42 ohms), criterion B

    PoE OUT Not supported
    Maximum number of physical ports on the entire device

    10GE (RJ45) x 1, 100M/1000M/2.5GE/5GE/10GE auto-sensing

    GE (RJ45) x 1, 10M/100M/1000M auto-sensing

    Long-term operating temperature [°C(°F)] –10°C to +50°C (14°F to 122°F) (From 1800 m to 5000 m [5905.51 ft. to 16404.20 ft.], the maximum ambient temperature decreases by 1°C [1.8°F] for every 300 m [984.25 ft.] increase in altitude.)
    Storage temperature [°C(°F)] –40°C to +70°C (–40°F to +158°F)
    Long-term operating relative humidity [RH] 5% RH to 95% RH
    Long-term operating altitude [m(ft.)] –60 m to +5000 m (–196.85 ft to +16404.20 ft)
    Atmospheric pressure [kPa] 53kPa - 106kPa ETSI 300 019-2-3
    Ground Grounding
    USB USB 2.0, supporting 2.5 W or 5 W power supply.
    IoT slot Not supported
    BLE BLE5.2
    Radio number 2
    Operating frequency band
    • 2.4GHz
    • 5GHz
    MIMO spatial streams

    Radio 0 (2.4 GHz): 4x4

    Radio 1 (5 GHz): 8x8

    Wi-Fi standard

    2.4 GHz: 802.11b/g/n/ax

    5 GHz: 802.11a/n/ac/ac Wave 2/ax

    Radio interface Built-in smart antennas
    Antenna gain

    Maximum gain:

    2.4 GHz: 4 dBi

    5 GHz: 6 dBi

    BLE: 5 dBi

    Combined gain:

    2.4 GHz: 2 dBi

    5 GHz: 3 dBi

    Beamwidth of the built-in antenna [degrees] N/A
    Maximum transmit power

    2.4 GHz: 24 dBm

    5 GHz: 27 dBm

    (Note: This is the total MIMO radio power, the same as:

    2.4 GHz: 18 dBm/chain

    5 GHz: 18 dBm/chain)

    BLE: < 10 dBm

    Singal radio transmit power [dBm]

    2.4G: -10 dBm to 18 dBm/chain

    5G: -10 dBm to 18 dBm/chain

    MTBF [year] 74 year
    MTTR [hour] 0.5 hour
    Frequency stability [ppm] +/-20
    802.3bt power supply description The maximum output power of the USB port is 2.5 W. Other functions are not restricted.
    802.3at power supply description

    The maximum output power of the USB port is 2.5 W. The USB port does not support 5 W output.

    • When the USB port is not used, other functions are not affected.
    • When the USB port provides 2.5 W output power, the maximum transmit power of the 2.4 GHz and 5 GHz radios decreases by 1 dBm, and other functions are not affected.
    DC power supply description The maximum output power of the USB port is 2.5 W. Other functions are not restricted.
