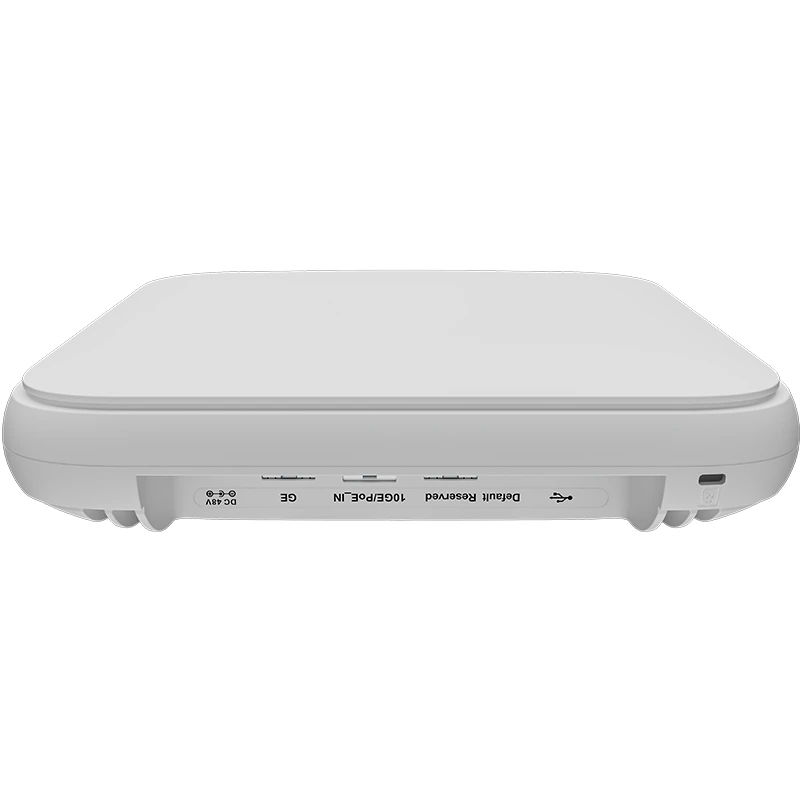

Wireless Access Point AirEngine 8771-X1T 11be indoor Enterprise-Class Wi-Fi 7 Ap Access Point
● Model No.: AirEngine 8771-X1T
● Size:50 mm x 220 mm x 220 mm
● Port details: (11be indoor,4+4+4 Triple bands,Scan radio ,Dynamic-zoom smart antenna,USB,BLE)
● Place of Origin: Guangdong, China
● Interface and power supply: 2 x 10GE electrical port+1 x 10GE optical port (300m PoE++); Supports 802.3bt PoE power supply (dual PoE in hot standby) and DC 48V (± 10%) dual redundancy; Built in Bluetooth 5.2, with USB reserved for IoT expansion.
● Warranty: 1years
● MOQ: 1 pieces
Application scenarios
1. Innovative applications of metaverse/XR/AR/VR: This is its most core application scenario. The machine has a speed of up to 18.67Gbps and a latency of as low as 2ms, which can support innovative businesses such as XR remote collaboration, XR remote healthcare, XR interactive teaching, industrial AR inspection, etc. that require extremely strict bandwidth and latency.
2. High density access scenarios (sports venues/conference centers/airports/large shopping malls): Built in dynamic zoom smart antenna, which can dynamically switch between omnidirectional and high-density modes. In high-density mode, it can improve the overall network performance and ensure the experience of thousands of users accessing simultaneously. In aviation scenarios, it can provide passengers with a super gigabit high-speed internet experience for terminals and logistics parks.
3. Future smart teaching/smart healthcare: In universities and large classrooms, it can support high bandwidth services such as 4K/8K video teaching and virtual simulation experiments. In remote medical scenarios, low latency characteristics can ensure the real-time and reliability of XR remote consultations and surgical demonstrations.
4. Intelligent Manufacturing/Industrial AOI: In factory workshops, it can be used for industrial scenarios such as machine vision quality inspection (AOI), AR assisted assembly, and mobile robots, providing a fiber like wireless experience and replacing traditional wired networks.
5. High quality office/conference room: Three RF design (2.4G/5G/6G) supports a 50% increase in concurrent users, combined with dynamic smart antennas, to ensure a smooth experience in high-density office areas and video conference rooms
Core functional characteristics
1. Dynamic zoom antenna and air interface optimization: The built-in smart antenna can dynamically adjust the beam direction, improving edge speed and anti-interference ability; Support SmartRadio, DFA channel allocation, TPC power control; 802.11k/v/r/BSS Coloring provides fast roaming with latency as low as 2ms; Airtime ensures fair scheduling and guarantees high priority services.
2. Multi factor security and authentication: WPA3, 802.1X, MAC, Portal, certificate authentication; Wireless threat detection, illegal AP location, encrypted traffic analysis; Support the issuance of unified security policies for iMaster NCE Campus.
3. Flexible deployment and redundancy: direct/side mounted AC, cross layer networking, NAT traversal; Dual PoE in hot standby, RF card redundancy; Supports 160MHz continuous networking and 320MHz ultra wide bandwidth, meeting the bandwidth requirements of Wi Fi 7 terminals.
4. Visual operation and maintenance: eSight/iMaster NCE Campus monitoring, supporting AP/user/traffic KPI visualization, one click fault diagnosis, and AI root cause analysis.
Detailed description
| Item | Specification |
|---|---|
| Installation Type |
|
| Dimensions without packaging (H x W x D) [mm(in.)] | 50 mm x 220 mm x 220 mm (1.97 in. x 8.66 in. x 8.66 in.) |
| Weight without packaging [kg(lb)] | 1.4 kg (3.09 lb) |
| Storage | NAND Flash 512 MB |
| Console port | BLE console |
| Eth Management port | N/A |
| Maximum power consumption [W] | 44.4 (excluding USB) |
| Maximum heat dissipation [BTU/hour] | 151.5 BTU/hour |
| Power supply mode |
|
| Rated input voltage [V] |
DC: 48 V PoE: 802.3bt/at |
| Input voltage range [V] |
DC: 43.2–57.6 V PoE: 802.3bt/at x 3, supporting hybrid cables When multiple ports are used for receive PoE power: If the power supply classes are different, the port with the highest power class is used. If the power supply classes are the same, power supply backup can be implemented. |
| Service port surge protection |
PoE port: Differential mode (48 V-RTN): 0.5 kV (1.2/50 us, 42 ohms), criterion B Common mode (8 wires to ground): 4 kV (1.2/50 us, 42 ohms), criterion B |
| PoE OUT | Not supported |
| Maximum number of physical ports on the entire device |
10GE (RJ45) x 2, 100M/1000M/2.5GE/5GE/10GE auto-sensing 10GE (SFP+) x 1, GE/2.5GE/10GE auto-sensing |
| Long-term operating temperature [°C(°F)] | –10°C to +50°C (14°F to 122°F) (From 1800 m to 5000 m [5905.51 ft. to 16404.20 ft.], the maximum ambient temperature decreases by 1°C [1.8°F] for every 300 m [984.25 ft.] increase in altitude.) |
| Storage temperature [°C(°F)] | –40°C to +70°C (–40°F to +158°F) |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH, non-condensing |
| Long-term operating altitude [m(ft.)] | –60 m to +5000 m (–196.85 ft to +16404.20 ft) |
| Atmospheric pressure [kPa] | 53kPa - 106kPa ETSI 300 019-2-3 |
| Ground | Grounding |
| USB | USB 2.0, supporting 2.5 W or 9 W power supply. |
| IoT slot | Not supported |
| BLE | BLE5.2 |
| Radio number | 4 (including the independent scanning radio) |
| Operating frequency band |
|
| MIMO spatial streams |
Quad-radio 6G mode:
Quad-radio dual-5G mode:
|
| Wi-Fi standard |
2.4 GHz: 802.11b/g/n/ax/be 5 GHz: 802.11a/n/ac/ac Wave 2/ax/be 6 GHz: 802.11a/ax/be |
| Radio interface | Built-in Dynamic-Zoom Smart Antennas |
| Antenna gain |
Peak gain: 2.4 GHz: 4 dBi 5 GHz: 5 dBi 6 GHz: 5 dBi Independent scanning radio: 4 dBi BLE: 3 dBi Combined gain: 2.4 GHz: 2 dBi 5 GHz: 3 dBi 6 GHz: 3 dBi Independent scanning radio: 4 dBi BLE: 3 dBi |
| Maximum transmit power |
MIMO combined power, excluding antenna gains 2.4 GHz: 26 dBm 5 GHz: 25 dBm 6 GHz: 25 dBm BLE: 10 dBm |
| Singal radio transmit power [dBm] |
2.4G: –10 dBm to +20 dBm/chain 5G: –10 dBm to +19 dBm/chain 6G: –10 dBm to +19 dBm/chain |
| MTBF [year] | 53.2 year |
| MTTR [hour] | 2 hour |
| Frequency stability [ppm] | +/-20 |
| 802.3bt power supply description |
If the power class is 802.3bt Class 7 or Class 8, no function is restricted, and the USB port supports a maximum of 9 W output. (If the PSE supports 90 W PoE but does not support LLDP, the power supply mode must be set to 802.3bt Class 8.) If the power class is 802.3bt Class 6, the USB port supports a maximum of 2.5 W output, and other functions are not restricted. |
| 802.3at power supply description |
Wi-Fi service: 2.4 GHz (2x2) + 5 GHz (4x4) + 6 GHz (4x4) + independent scanning radio Wired network ports: 10GE0/10GE1/SFP+. Only one of them is reserved, among which the optical port is preferentially used. If the optical port is not used, electrical ports are reserved based on the PoE supply sequence, and the rate is lowered to 5 Gbit/s. Other ports: The USB port supports a maximum of 2.5 W output. If the USB port is used, the Wi-Fi service supports a maximum of 2.4 GHz (2x2) + 5 GHz (4x4) + 6 GHz (2x2) + independent scanning radios. |
| 802.3af power supply description | Not supported |
| DC power supply description | No function is restricted. The USB port supports a maximum of 9 W output. |
