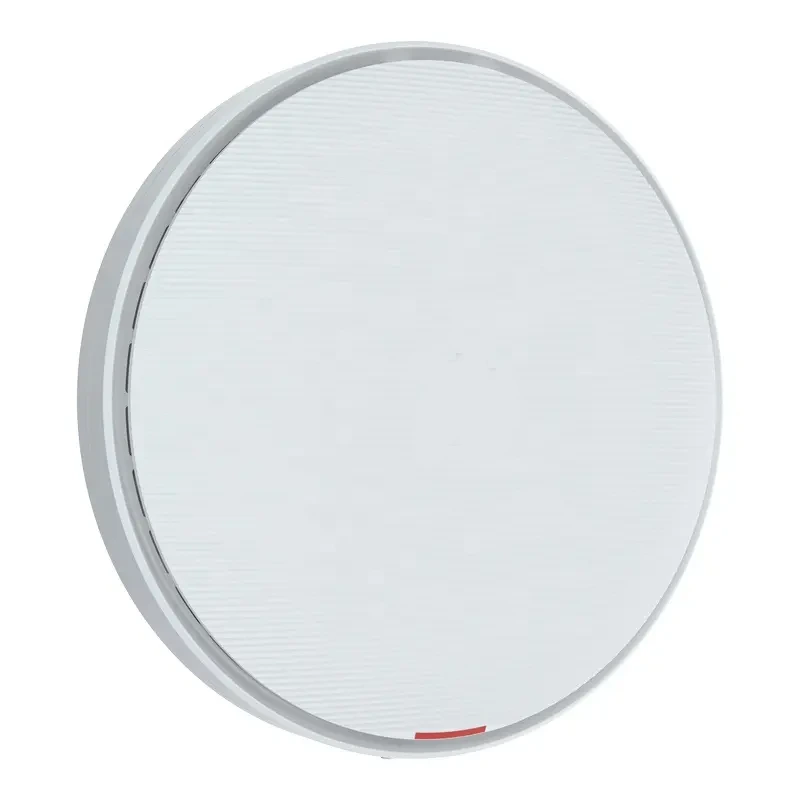

Wireless AirEngine 5760-51 Indoor Access Point with 1×5GE Ethernet port
● Model No.: AirEngine 5760-51
● Port details: 1 x 5GE Ethernet port (PoE input) + 1 x GE Ethernet port
● Application scenarios: Corporate offices, retail, manufacturing, coffee shops
● Feature: Software-defined radio (dual/triple radio switching), 5.37Gbps data rate, 5GE uplink, built-in smart antenna, IoT expansion.
● Warranty: 1years
● MOQ: 1 pieces
Application scenarios
Large and medium-sized enterprise offices: Ensuring a smooth experience for wireless screen projection and video conferencing in executive offices and large conference rooms.
High-density venues/conference centers: Utilizing tri-RF modes and smart antennas to meet the network demands of thousands of simultaneous users during exhibitions and press conferences.
Smart education/e-classrooms: Meeting the high concurrency and low latency requirements of e-textbooks and interactive classrooms.
Retail/manufacturing environments: Ensuring stable and reliable network performance even in high-interference environments in stores, factory workshops, and other settings through independent RF scanning capabilities.
Key selling points
Software-defined RF, flexible scenario switching: Supports flexible adjustment of RF operating modes via software. It can freely switch between dual-RF and tri-RF modes, increasing concurrent capacity by up to 50%, flexibly adapting to the demands of different scenarios such as high bandwidth or high-density access.
Exclusive smart antenna, seamless coverage: Built-in Huawei's exclusive dual-band common-port smart antenna, a 5G innovation, allows the signal to actively follow the user's movement. Compared to traditional antennas, it effectively suppresses interference, increasing signal strength by 100% and coverage radius by 20%, providing users with a stable, seamless wireless experience.
Independent RF scanning, worry-free in high-interference scenarios: The device has a built-in independent scanning RF, which can continuously monitor air interface quality and locate interference sources without affecting services. Combined with RTU upgrades, it is particularly suitable for deployment in high-interference scenarios.
High-speed 5GE uplink eliminates bottlenecks: Equipped with multiple 5GE gigabit Ethernet ports, supporting 2.5GE/5GE rate adaptation, it completely eliminates uplink transmission bottlenecks for high-bandwidth services (such as VR/AR, 8K video), fully unleashing the performance potential of Wi-Fi 6.
Detailed description
| parameter item | Specification Description |
| Product Model | AirEngine 5760-51 |
| Applicable scenarios | Enterprise offices, retail stores, manufacturing factories, high-density venues, etc |
| wireless protocol | Wi-Fi 6 (802.11ax)， Fully compatible with 802.11a/b/g/n/ac |
| Antenna type | Built in smart antenna (dual band common interface technology, signal moves with the user) |
| RF mode | Support software defined radio frequency (SDR) and flexible switching between dual frequency/tri frequency modes |
| Space flow and velocity | Basic ability: 2.4GHz 2x2+5GHz 4x4 (overall speed 5.37 Gbps) |
| After RTU upgrade: 2.4GHz 4x4+5GHz 4x4 (overall speed 5.95 Gbps) | |
| interface | 1 x 5GE electrical port+1 x GE electrical port |
| power supply method | PoE power supply (802.3bt/at) or DC (48V) |
| Maximum Power Consumption | 28.8 W (excluding USB and IoT cards) |
| Maximum number of users | ≤ 1024 (dual RF mode)/≤ 1152 (triple RF mode) |
| Physical dimensions (diameter x height) | Φ220 mm × 50 mm |
| weight | 1.15 kg |
| Operating Temperature | -10℃ ～ +50℃ |
| Expansion of the Internet of Things | Built in dual IoT slots+USB interface, supporting Bluetooth 5.2, ZigBee, RFID, etc |
| MTBF | 69.7 years |
