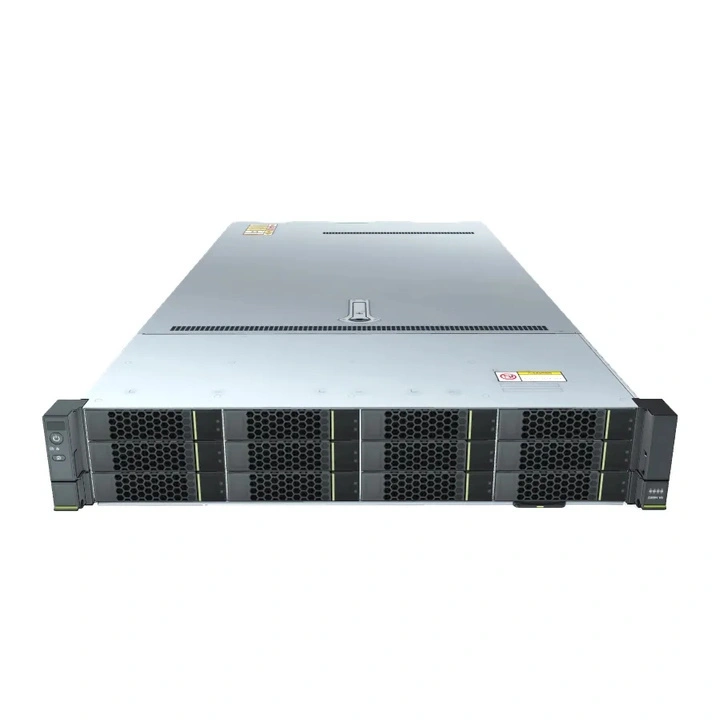

XFusion FusionServer 2288H V6 Enterprise Level Cloud Computer 2U Rack Server
● Model No.: FusionServer 2288H V6
● Maximum memory: 12TB DDR4
● Processor: 1-2 third-generation Intel Xeon Scalable processors
● Main features: High scalability, large capacity storage, and powerful heterogeneous computing power, 14 PCIe 4.0 slots+multi form high-density hard drive configuration
● Application scenarios: Cloud computing, virtualization, database clustering, big data analytics, AI training/inference, and other core workloads for medium and large enterprises and data centers
● Warranty: 1 years
● MOQ: 1 pieces
Application scenarios
Enterprise Core Databases: Hosts OLTP/OLAP systems such as Oracle, SQL Server, and MySQL, ensuring transaction stability with high concurrency and low latency.
Cloud Computing and Virtualization: Serves as a node in OpenStack, VMware, and KVM clusters, enabling large-scale virtual machine/container deployments and improving resource utilization.
Big Data and Data Analytics: Supports Hadoop, Spark, ClickHouse, and other technologies for massive data processing and real-time analysis.
AI Inference and Edge Hub: Utilizes GPU cards for model inference and video analytics; serves as a computing hub for edge nodes, deploying edge applications.
Critical Enterprise Applications: Supports core business systems such as ERP, CRM, and OA, ensuring high reliability and scalability for smooth business operations.
Core selling points
1. Super scalability and heterogeneous computing power: 14 PCIe 4.0 slots, supporting multiple GPU/accelerator card combinations to meet AI inference HPC、 The demand for heterogeneous computing power such as database acceleration; OCP 3.0 network card flexibly adapts to high-speed networks.
2. High density and large capacity storage: up to 45 2.5-inch hard drives or 34 NVMe SSDs, dual M.2 system disks+hard RAID, balancing capacity and system reliability, suitable for distributed storage and big data platforms.
3. Intelligent operation and high reliability: FDM intelligent fault diagnosis+DEMT intelligent power management; Fully redundant power supply/fan, hot swappable components, RAID cache protection; IBMC+FusionDirector enables automated deployment and monitoring, reducing operational costs.
4. Green and energy-saving: Platinum/titanium power supply (conversion efficiency>96%), intelligent cooling strategy, effectively reducing data center PUE.
5. Flexible configuration: 16/32 DIMM memory versions are available, with multiple hard drive backplanes and power solutions to adapt to different budgets and load scenarios.
Parameters
| Specification item | parameter description |
| Product Model | FusionServer 2288H V6 |
| product form | 2U rack server |
| processor | 1/2 of third-generation Intel ® Xeon ® Scalable processor (Ice Lake), up to 270W |
| memory | 16/32 DDR4 memory slots, up to 3200MT/s; Supports up to 16 Intel devices ® Aoteng ™ Persistent Memory 200 Series |
| storage | Front end hard drive: supports multiple combinations, such as 8-31 2.5-inch or 12-20 3.5-inch hard drives, with a maximum of 45 2.5-inch hard drives available |
| NVMe: Supports 4/8/16/24 NVMe SSDs, up to 34 full NVMe SSDs | |
| Built in storage: supports 2 M.2 SSDs | |
| RAID support | Optional configuration supports RAID 0/1/10/5/50/6/60, etc., and supports Cache supercapacitor protection |
| PCIe Expansion | Supports up to 14 PCIe 4.0 expansion slots |
| network | Supports OCP 3.0 network cards and provides flexible network expansion capabilities |
| GPU support | Supports up to 4 300W full height, full length, and dual width GPU acceleration cards |
| management | IBMC: Provides out of band management functions such as remote monitoring, diagnosis, and configuration, and supports standard interfaces such as Redfish and SNMP |
| FusionDirector (optional): Provides intelligent management throughout the entire lifecycle | |
| Power and Fan | Power supply: 2 redundant hot swappable power supplies can be configured, supporting 1+1 redundancy and multiple power options (900W-3000W) |
| Fan: 4 hot swappable counter rotating fans, supporting N+1 redundancy | |
| Operating Temperature | 5 ° C to 45 ° C (compliant with ASHRAE A1/A2/A3/A4 standards) |
| Dimensions (height x width x depth) | 86.1mm x 447mm x 790mm (3.5-inch hard drive chassis) |
