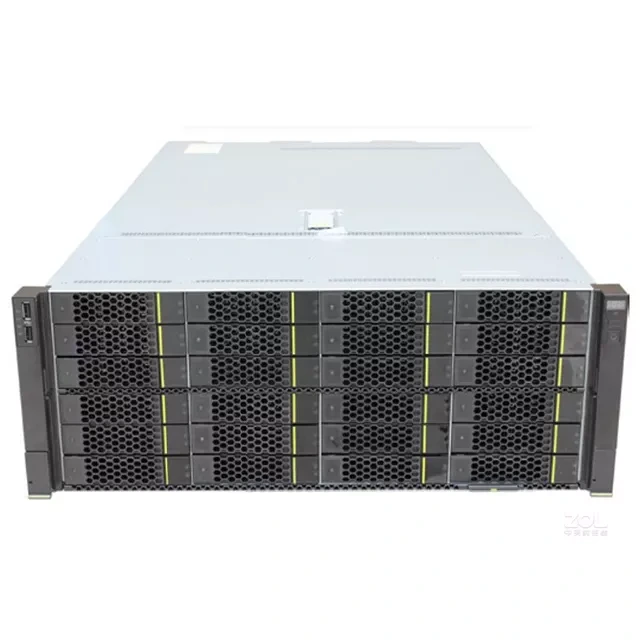

XFusion FusionServer 5288 V6 Enterprise 4U Rack Server with 32* DDR4

XFusion FusionServer 5288 V6 V7 2*CPU 32*DDR4 4U Enterprise Rack Server
The FusionServer 5288 V6 is a 4U 2-way rack server designed for high-capacity storage, video analytics, big data, and warm/cold data archiving. It features ultra-large local storage, strong scalability, high reliability, and intelligent management, making it suitable for high-density storage and computing acceleration scenarios.

● Model No.: FusionServer 5288 V6

● Maximum memory: 32×DDR4 DIMM

● Processor: 1/2 third-generation Intel Xeon Scalable processors (8300/6300/5300/4300 series), up to 270W

● Main features: Large local storage, strong scalability, high reliability, and intelligent management

● Application scenarios: Enterprise data centers, security video surveillance, big data, warm and cold data archiving, distributed storage

● Warranty: 1 years

● MOQ: 1 pieces

5.0
design customization

    oops...!

    no product data.

    Go to homepage
    H4e00a8ed8a9849e5938132a9af9c492eL

    Core selling points

    1. **Ultra-High Local Storage Density**

    4U form factor supports 44 x 3.5-inch HDDs + 4 x NVMe SSDs, with a maximum local capacity of **1PB+** per unit, meeting the needs of warm and cold data archiving, video storage, and distributed storage.


    Flexible disk configurations: 36/44 x 3.5", 24 x 3.5" + rear drive bays, and other combinations to adapt to different business needs.


    2. **Powerful Computing and Acceleration Capabilities**

    Two 3rd generation Xeon processors, up to 40 cores/CPU, UPI 11.2GT/s, suitable for high-computing workloads such as big data, databases, and virtualization.


    Supports 8 half-height, half-length GPUs, providing 640-channel FHD video analytics capability, suitable for security, AI inference, and video transcoding scenarios.


    3. **Flexible Expansion and High Reliability**

    11 x PCIe 4.0 + 2 x OCP 3.0 hot-swappable network cards, ensuring bottleneck-free expansion.


    Redundant power supplies (1+1), redundant fans (N+1), RAID cache protection, and hot-swappable components ensure stable operation 24/7.

    Application scenarios

    1. High-capacity storage / Warm and cold data archiving


    2. Security video analytics and storage


    3. Big data and distributed computing


    4. Enterprise data centers and virtualization


    5. Broadcasting / Media assets / Content distribution

    Ha7bc2dd175c846c7a66f5c61f3929904r

    Parameters

    parameter category Specification Details
    product form 4U rack mounted
    processor 1/2 third-generation Intel Xeon Scalable Processor (8300/6300/5300/4300 series), up to 270W
    chipset Intel C621A
    memory 32 x DDR4 DIMM, up to 3200MT/s; Maximum 12TB; supports 16 Aoteng persistent memory 200 series
    Local storage (maximum) 44×3.5" SAS/SATA HDD + 4×NVMe SSD; Support hot swapping
    Flash storage 2 x M.2 SSD (hot swappable, hardware RAID)
    RAID Supports RAID 0/1/5/50/6/60; Cache supercapacitor protection; Support RAID migration and disk roaming
    PCIe Expansion 11 x PCIe 4.0 (1 x RAID dedicated+2 x OCP 3.0 dedicated+8 x standard)
    network 2 x Hot swappable OCP 3.0 network card (flexible optional)
    fan 4 x hot swappable counter rotating fans, N+1 redundancy
    power supply 2 x hot swappable redundancy (1+1); Optional 900W/1500W/2000W AC Platinum/Titanium
    management IBMC (dedicated GE management interface); Support Redfish/SNMP/IPMI2.0; HTML5/VNC KVM; Optional FusionDirector
    Size 175 × 447 × 790 mm; approximately 35kg (fully equipped)
    operating system Windows Server, RHEL, SUSE, VMware SQLite, openEuler, Ubuntu, etc
    safety TPM 2.0、 Safe startup, lid opening detection, power on/administrator password
