03032MFL LE1D2S04SX1C 4-Port 10GBASE-X and 24-Port 100/1000BASE-X and 8-Port 10/100/1000BASE-T Combo Interface Card for h w

 LE1D2S04SX1C-4-Port 10GBASE-X and 24-Port 100/1000BASE-X and 8-Port 10/100/1000BASE-T Combo Interface Card (X1C, RJ45/SFP/SFP+)



Version Mapping

Table 1 Switch chassis and software versions matching the card

Card Name	S9300 Chassis	S9300E Chassis
LE1D2S04SX1C	Supported in V200R011C10 and later versions	Supported in V200R011C10 to V200R013C00

Introduction

The LE1D2S04SX1C can be installed in:

• Slots 01 to 03 in an S9303 chassis.
• Slots 01 to 06 in an S9306 chassis.
• Slots 01 to 10 in an S9310 chassis.
• Slots 01 to 12 in an S9312 chassis.
• Slots 01 to 03 in an S9303E chassis.
• Slots 01 to 06 in an S9306E chassis.
• Slots 01 to 12 in an S9312E chassis.

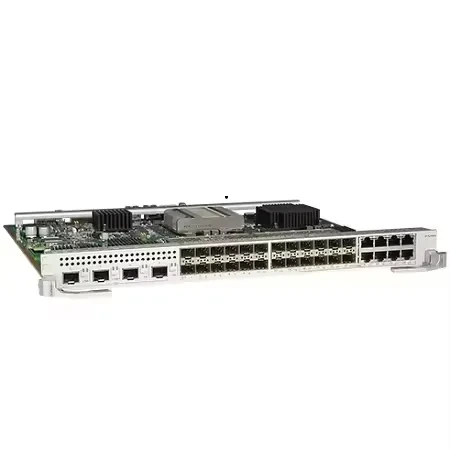

Figure 1 Appearance of the LE1D2S04SX1C

Functions

The LE1D2S04SX1C provides the following functions:

• Communicates with the MPU and works under the control of the MPU.
• Searches for routes and destination addresses of data packets for forwarding.
• Forwards data packets.

Table 2 Functions of the LE1D2S04SX1C

Function	Description
Basic functions	Provides four 10G Ethernet optical ports, sixteen 100/1000M Ethernet optical ports, and eight 10/100/1000M combo ports for data access and switching.
Distributed forwarding	Performs concurrent data forwarding using a distributed data plane.
Software feature	LAN/WAN switchover
Hot swapping	The LE1D2S04SX1C is hot swappable.



Specifications

Table 3 Specifications of the LE1D2S04SX1C

Item	Description
Physical specifications	Dimensions (H x W x D): 35.1 mm x 397.2 mm x 430.4 mm (1.38 in. x 15.64 in. x 16.95 in.) Weight: 2.88 kg (6.35 lb) Maximum power consumption: 130 W
