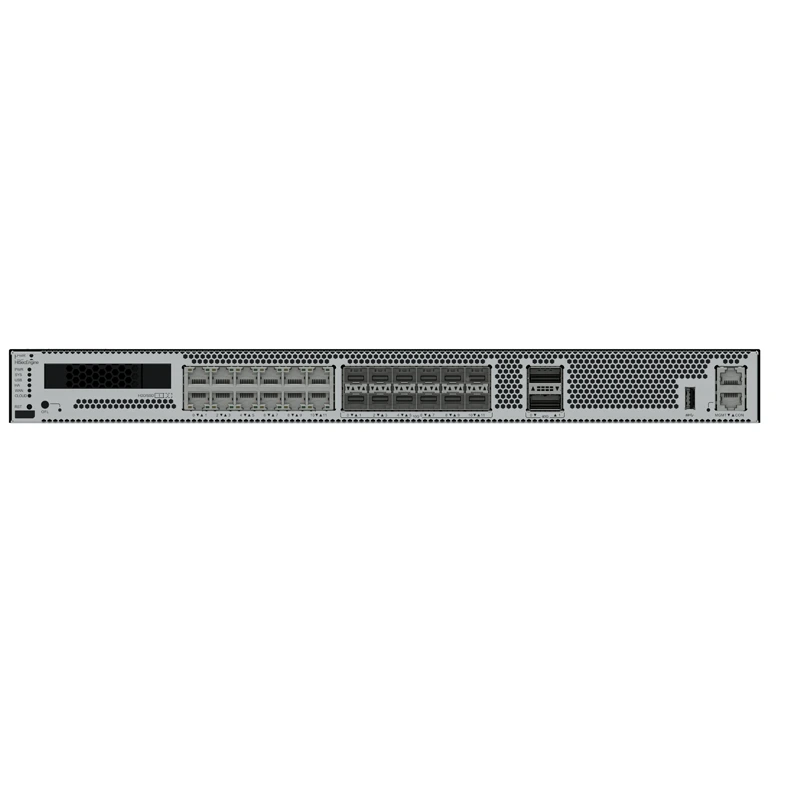

1U AI Firewall USG6650E Enterprise Security Firewall with 2×40GE QSFP+ ports 1

1U AI Firewall USG6650E Enterprise Security Firewall with 2×40GE QSFP+ ports 2

1U AI Firewall USG6650E Enterprise Security Firewall with 2×40GE QSFP+ ports 3

1U AI Firewall USG6650E Enterprise Security Firewall with 2×40GE QSFP+ ports 4

1U AI Firewall USG6650E Enterprise Security Firewall with 2×40GE QSFP+ ports

USG6650E-AC 02351YRY 12*GE RJ45 + 12*10GE SFP+ + 2*40GE QSFP+ Enterprise Security Ai Firewall

The HiSecEngine USG6650E is a 1U box-type AI firewall from Huawei's USG6600E series, designed for large corporate headquarters, high-end data center core egress, and multi-service high-density hybrid networking scenarios. As the high-end flagship model in the series, its 40Gbps firewall performance, coupled with a full-scenario interface combination of 2×40GE QSFP+ + 12×10GE SFP+ + 12×GE RJ45, can support ultra-large-scale networks with 7,000–10,000+ terminals and 40G high-speed backbone services, providing end-to-end intelligent security protection.

● Model No.: USG6650E

● Size: 442×420×43.6mm

● Interface configuration: 2×40GE (QSFP+) + 12×10GE (SFP+) + 12×GE (RJ45) + 1×USB3.0

● Main features: With 40Gbps firewall performance, coupled with a full-scenario interface combination of 2×40GE QSFP+ + 12×10GE SFP+ + 12×GE RJ45, it can support ultra-large-scale networks with 7,000–10,000+ terminals.

● Application scenarios: Large group headquarters, core exit of high-end data centers, and multi-service high-density hybrid networking scenarios

● Warranty: 1 years

● MOQ: 1 pieces

Inquiry

Write a Review

Application scenarios

Large enterprise and campus network core

Medium-sized data center perimeter

Government, finance, education and other industry backbone networks

ISP/IDC service providers

Core selling points

1. Full-scenario interfaces, the preferred choice for hybrid networking

2. AI-powered intelligent defense, a zero-trust security foundation

3. Hardware-level full-service acceleration

4. Ultra-large-scale virtualization and high reliability

5. Cloud-edge collaboration for simplified operation and maintenance

Parameters

parameter category	Detailed Specifications
Equipment form	1U rack mounted
Firewall performance	Throughput of 40Gbps (1518 bytes); 35Gbps (64 bytes)
comprehensive performance	Full threat protection (FW+SA+IPS+AV) 11Gbps
Concurrent/New Connection	Maximum concurrency of 12 million; 400000 new creations per second
interface configuration	2×40GE (QSFP+) + 12×10GE (SFP+) + 12×GE (RJ45) + 1×USB3.0
VPN capability	IPSec throughput of 15Gbps; SSL VPN throughput 5Gbps
SSL VPN users	Default 100 users, maximum 5000 users
hardware configuration	Multi core high-performance processor; 32GB DDR4 memory
virtualization	500 virtual firewalls (VSYS)
Storage Expansion	Optional 2.5-inch SSD (240GB)/HDD (1TB), hot swappable
power supply	Standard dual AC power supply (100~240V), supports dual DC
power consumption	Maximum 600W
Size/Weight	442×420×44mm；7.6kg
load capacity	7000~10000 users
Operating temperature and humidity	0~45 ℃ (without hard drive); 5~40 ℃ (including hard drive); 5%~95% non condensing
