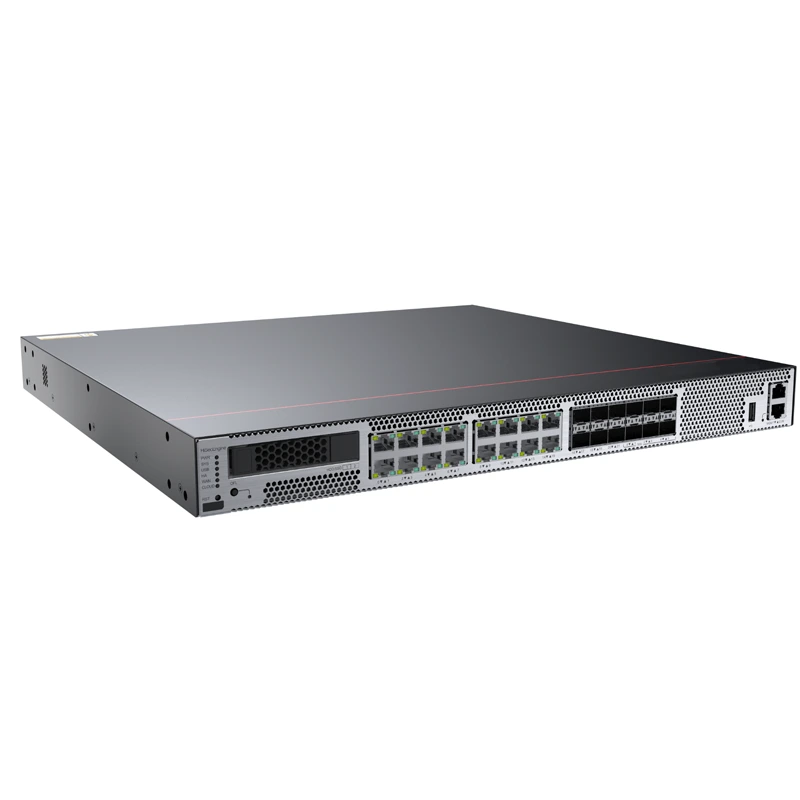

● Model No.: USG6635E
● Size: 442×420×43.6mm
● Interface configuration: 16×GE (RJ45) + 12×10GE (SFP+) + 2×40GE (QSFP+)
● Main features: With 16 gigabit Ethernet ports, it is more suitable for hybrid networking scenarios that require high-density gigabit access + 10 gigabit/40G uplink.
● Application scenarios: Large enterprise/group headquarters, large data center egress, multi-service security gateway
● Warranty: 1 years
● MOQ: 1 pieces
Application scenarios
Large-scale enterprises/campus core exits: massive terminal access, 10 Gigabit uplink, remote SSL VPN office
Data center hybrid networking: gigabit access in server areas + 40G interconnection across data centers, secure isolation of east-west traffic
Multi-branch headquarters convergence: large-scale IPSec VPN tunnels, centralized security policy control
Finance/Government/Energy: compliance with information security standards, stable 24/7 operation of critical businesses
Core selling points
Featuring a unique 16GE electrical + 12×10GE optical + 2×40GE combination, it balances gigabit terminal access with 40G high-speed uplink, eliminating the need for additional expansion cards.
Compared to the pure optical port USG6630E, it saves on gigabit optical module costs, offering greater deployment flexibility.
Equipped with the Galaxy AI Engine, it achieves a 95%+ encrypted traffic threat detection rate, providing precise defense against APTs and ransomware.
Hardware-accelerated architecture ensures no degradation under full-service concurrency, with forwarding latency as low as 15μs.
Dual power supply and dual-fan redundancy support HRP hot standby, achieving 99.999% availability.
Fully supports SM2/SM3/SM4 national cryptographic algorithms, meeting Level 3 security protection and security assessment requirements.
Parameters
| parameter category | Detailed Specifications |
| Equipment form | 1U rack mounted |
| Firewall throughput | 30Gbps (1518 bytes); 30Gbps (64 bytes) |
| comprehensive performance | FW+SA+IPS 13Gbps; FW+SA+IPS+AV 12Gbps |
| Concurrent/New Connection | Concurrent connections of 12 million; New connection 400000/s |
| interface configuration | 16×GE (RJ45) + 12×10GE (SFP+) + 2×40GE (QSFP+) |
| VPN capability | IPSec throughput of 20Gbps; SSL VPN 100 users (standard, expandable up to 2000) |
| hardware configuration | Multi core processors; 32GB DDR4 memory |
| virtualization | 500 virtual firewalls (VSYS) |
| Storage Expansion | Optional 2.5-inch SSD (240GB)/HDD (1TB), hot swappable |
| power supply | Dual AC power supply (100~240V) |
| power consumption | Typical 136.1W; maximum 180W |
| Size/Weight | 442×420×43.6mm;7.6kg |
| load capacity | 4500-7000 users |
