CR5D0MPUD170 03054206 Ne40e Series Main Processing Unit D2(including 2g Memory And 2g Usb) For H W
5.0
Samples:
$1000.0/piece | Min. order : 1 piece
Shipping:
Support Sea freight
Place of Origin:
China
Payments:
L/C,D/A,D/P,T/T,Western Union,MoneyGram,OA
Lead Time:
1-10(pieces):3(days),11-50(pieces):7(days),51-100(pieces):15(days),>100(pieces):To be negotiated(days)
Customization:
Customized logo (Min. Order: 10000 sets),Customized packaging (Min. Order: 10000 sets),Graphic customization (Min. Order: 10000 sets)
Brand Name:
-
Model Number:
CR5D0MPUD170
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Flash memory
16 MB
SDRAM
2 GB
CPU
Single-core 1.2GHZ
Typical heat dissipation
103.82 BTU/hour
Typical power consumption
32 W
Short-term operating temperature
-5°C to 55°C (23°F to 131°F)
Dimensions without packaging (H x W x D)
40.1 mm x 199.2 mm x 535.6 mm
Long-term operating temperature
0°C to 45°C (32°F to 113°F)
Weight without packaging
1.7 kg (3.75 lb)
Part Number
03054206
Use
other
Place of Origin
Guangdong, China
Type
Main Processing Unit
Product Description
CR5D0MPUD170 (Main Processing Unit D2(Including 2G Memory and 2G USB))
Overview
Table 1 Basic information about the CR5D0MPUD170
| Item | Details |
|---|---|
| Description | Main Processing Unit D2(Including 2G Memory and 2G USB) |
| Part Number | 03054206 |
| Model | CR5D0MPUD170 |
| Card type | MPU |
| Silkscreen | MPU |
Appearance

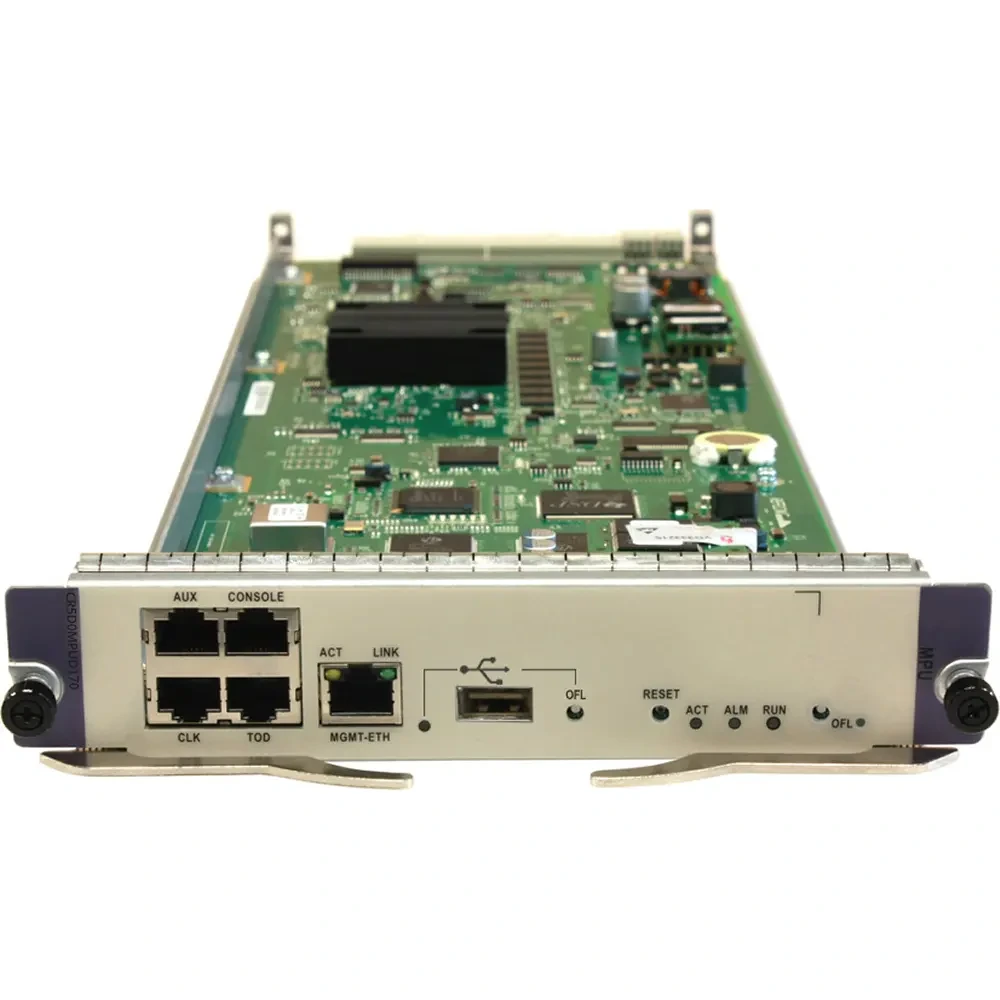

Figure 1 Appearance of the CR5D0MPUD170
Table 2 Technical specifications
| Item | Details |
|---|---|
| Dimensions without packaging (H x W x D) [mm(in.)] | 40.1 mm x 199.2 mm x 535.6 mm (1.58 in. x 7.84 in. x 21.09 in.) |
| Weight without packaging [kg(lb)] | 1.7 kg (3.75 lb) |
| Typical power consumption [W] | 32 W |
| Typical heat dissipation [BTU/hour] | 103.82 BTU/hour |
| Long-term operating temperature [°C(°F)] | 0°C to 45°C (32°F to 113°F) |
| Short-term operating temperature [°C(°F)] | -5°C to 55°C (23°F to 131°F) |
| CPU | Single-core 1.2GHZ |
| SDRAM | 2 GB |
| Flash memory | 16 MB |
| Storage | eUSB: 2 GB |
