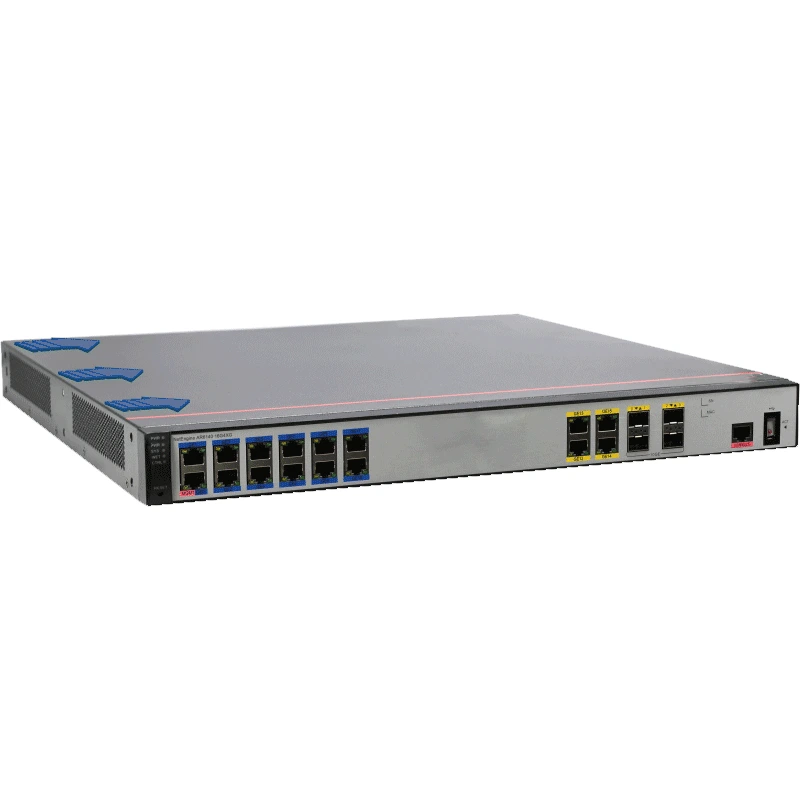

Enterprise Access Routers AR6140-16G4XG with 4*GE WAN, 4*SFP+, 12*GE LAN
● Model No.: AR6140-16G4XG
● Size: 225 mm x 550 mm x 530 mm
● Expansion capability: A4 x SIC slots (supporting 5G/4G, E1/T1, POS, GE optical/electrical modules, etc.)
● Place of Origin: Guangdong, China
● Core strengths: 16 × GE+4 × 10GE optical, 4 × SIC expansion, 16 core ARM, high forwarding, strong IPSec, dual power redundancy, routing/switching/security/SD-WAN integration.
● Warranty: 1years
● MOQ: 1 pieces
Application scenarios
1. Export gateway for small and medium-sized enterprises/branch offices: This is its most core application scenario. In small and medium-sized enterprise headquarters or large enterprise branches with 50-200 employees, it can be used as a network exit router to connect 2 GE optical fibers (through 2 GE electrical ports and 2 GE optical ports). Its 2 Gbps NAT forwarding performance can support daily internet, email, lightweight video conferencing, and other traffic for all employees.
2. Edge nodes for SD-WAN networking: With built-in SD-WAN functionality, they can serve as branch nodes (Spokes) for enterprise SD-WAN networks, enabling intelligent connections with headquarters or other branches. Support intelligent routing based on application and link quality, ensuring that critical applications such as ERP and video conferencing are always transmitted on the optimal link.
3. Multi service integration access node: integrates routing, switching VPN、 Integrating multiple functions such as security and voice. It can expand 5G/LTE, E1/T1, voice, firewall and other business cards through 4 SIC slots to meet the diversified development needs of enterprises in the future.
4. IPsec VPN gateway: Provides 2 Gbps IPsec VPN performance, can establish encrypted tunnels through hardware acceleration, connect remote branches or employees on business trips, and ensure data transmission security.
5. Small campus aggregation node: In small campuses, it can serve as an aggregation router, connecting the core upwards through GE or 10GE (with expansion module required), and aggregating multiple access switches downwards. Its 160 Gbps switching capacity is sufficient to carry medium-sized traffic aggregation
Core functional characteristics
- 1. Routing and Switching
- Supports IPv4/IPv6 dual stack, static routing RIP、OSPF、BGP、IS‑IS
- Support MPLS, L3VPN, VPLS, QinQ, VLAN, port aggregation, and stacking
- Support NAT, PAT, port mapping, traffic control (QoS), ACL access control
- 2. VPN and Security
- Supports various VPNs such as IPSec, GRE, L2TP, SSL VPN, EVPN, etc
- Built in firewall, URL filtering, Intrusion Prevention (IPS), AAA authentication, URPF attack prevention
- Support management of plane security, SSH, SNPv3, NETCONF/YANG encryption management
- 3. High reliability and operation and maintenance
- Support high reliability features such as VRRP, BFD, FRR, NSR, GR, etc
- Support ZTP zero configuration, USB opening, iMaster NCE centralized control
- Support multiple operation and maintenance methods such as Web, CLI, SNMP, NETCONF, etc
- 4. Multi WAN and SD-WAN
- Support multi WAN load balancing, intelligent routing, link backup, 5G/4G backup
- Fully supports Huawei SD-WAN solutions, including intelligent traffic scheduling, application recognition, and SLA guarantee
- Compatible with cloud platforms (Huawei Cloud, AWS, Azure, etc.), supporting cloud edge collaboration
Detailed description
| Item | Specification |
|---|---|
| Installation type | Rack |
| Chassis height [U] | 1 U |
| Dimensions without packaging (H x W x D) [mm(in.)] |
|
| Dimensions with packaging (H x W x D) [mm(in.)] | 225 mm x 550 mm x 530 mm (8.86 in. x 21.65 in. x 20.87 in.) |
| Weight with packaging [kg(lb)] | 7.85 kg (17.27 lb) |
| Weight without packaging [kg(lb)] | 5.35 kg (11.79 lb) |
| CPU | 1.85 GHz, 16 Cores |
| Memory | 4 GB |
| NAND Flash | 1 GB |
| Console port | RJ45 |
| RTC | Supported |
| LAN ports | 12 x GE electrical |
| WAN ports | 4 x 10GE SFP+, 4 x GE electrical |
| Number of service board slots | 4 |
| MIC slots (default/maximum) | 0/0 |
| SIC slots (default/maximum) | 4/4 |
| WSIC slots (default/maximum) | 0/2 |
| XSIC slots (default/maximum) | 0/0 |
| Redundant MPUs | Not supported |
| RPS input | Not supported |
| PoE | Not supported |
| IP rating | IP20 |
| MTBF [years] | 51.78 years |
| MTTR [hours] | 2 hours |
| Availability | 0.9999955910 |
| Typical power consumption [W] | 50 W |
| Maximum power consumption [W] | 60 W |
| Power supply mode | Pluggable AC |
| Number of power modules | 2 |
| Rated input voltage [V] | 100 V to 240 V, 50 Hz/60 Hz |
| Input voltage range [V] | 90 V to 264 V, 47 Hz to 63 Hz |
| Maximum input current [A] | 3 A |
| Maximum output power [W] | 150 W |
| Redundant power supply | Support double AC power supply (1 : 1 backup) |
| Types of fans | Built-in |
| Number of fan modules | 3 |
| Heat dissipation mode | Air cooling |
| Airflow | Left-to-right airflow |
| Noise at normal temperature (acoustic power) [dB(A)] | 57.6 dB(A) |
| Long-term operating temperature [°C(°F)] |
0°C to 45°C (32°F to 113°F) NOTE:
When the altitude is 1800–5000 m (5906–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH, non-condensing |
| Long-term operating altitude [m(ft.)] | < 5000 m (16404.2 ft.) |
| Storage temperature [°C(°F)] | -40°C to +70°C (-40°F to +158°F) |
| Overtemperature alarm | Supported |
