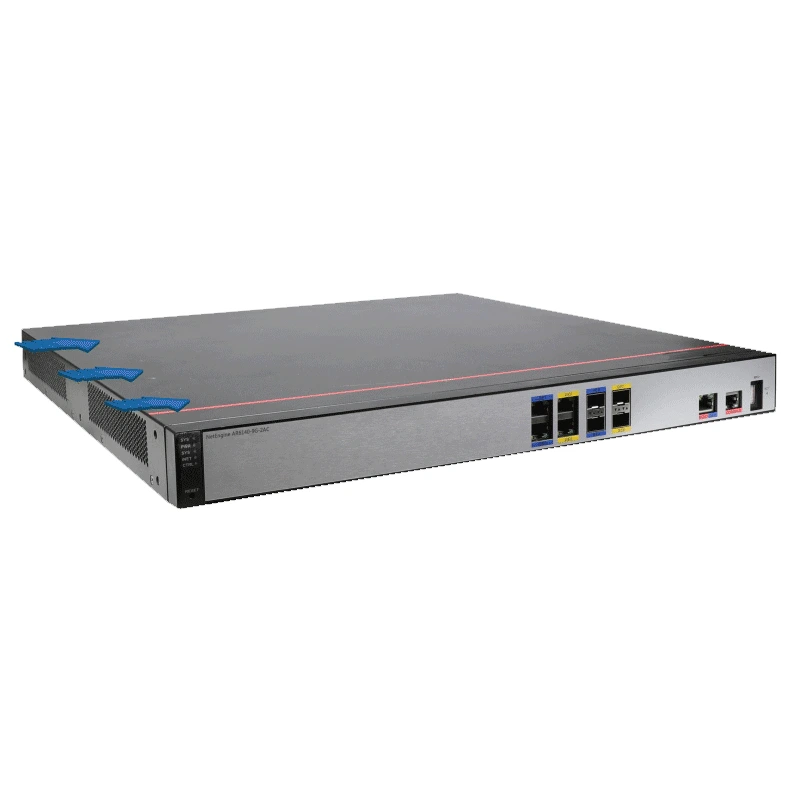

Enterprise Industrial Network Access Router AR6140-9G-2AC With 5*GE RJ45, 4*GE SFP
● Model No.: AR6140-9G-2AC
● Size: 175 mm x 550 mm x 710 mm
● port characteristics: All ports can be flexibly switched to WAN/LAN ports, supporting multiple WAN stacking
● Place of Origin: Guangdong, China
● Core strengths: 9 × GE full gigabit, dual AC built-in redundancy, flexible port switching, secure integration of routing and switching, low power consumption and high reliability.
● Warranty: 1years
● MOQ: 1 pieces
Application scenarios
1. Export gateway for small and medium-sized enterprises/branch offices: This is its most core application scenario. In small and medium-sized enterprise headquarters or large enterprise branches with 50-200 employees, it can be used as a network exit router to connect 2 GE optical fibers (through 2 GE electrical ports and 2 GE optical ports). Its 2 Gbps NAT forwarding performance can support daily internet, email, lightweight video conferencing, and other traffic for all employees.
2. Edge nodes for SD-WAN networking: With built-in SD-WAN functionality, they can serve as branch nodes (Spokes) for enterprise SD-WAN networks, enabling intelligent connections with headquarters or other branches. Support intelligent routing based on application and link quality, ensuring that critical applications such as ERP and video conferencing are always transmitted on the optimal link.
3. Multi service integration access node: integrates routing, switching VPN、 Integrating multiple functions such as security and voice. It can expand 5G/LTE, E1/T1, voice, firewall and other business cards through 4 SIC slots to meet the diversified development needs of enterprises in the future.
4. IPsec VPN gateway: Provides 2 Gbps IPsec VPN performance, can establish encrypted tunnels through hardware acceleration, connect remote branches or employees on business trips, and ensure data transmission security.
5. Small campus aggregation node: In small campuses, it can serve as an aggregation router, connecting the core upwards through GE or 10GE (with expansion module required), and aggregating multiple access switches downwards. Its 160 Gbps switching capacity is sufficient to carry medium-sized traffic aggregation
Core functional characteristics
- 1. Routing and Switching
- Supports IPv4/IPv6 dual stack, static routing RIP、OSPF、BGP、IS-IS
- Support MPLS, L3VPN, VPLS, QinQ, VLAN, and port aggregation
- Support NAT, PAT, port mapping, traffic control (QoS), ACL access control
- 2. VPN and Security
- Support multiple VPN technologies such as IPSec, GRE, L2TP, SSL VPN, etc
- Built in basic firewall, URL filtering, AAA authentication, URPF attack prevention
- Support management of plane security, SSH, and SNMPv3 encryption management
- 3. High reliability and operation and maintenance
- Support VRRP gateway redundancy, BFD fast fault detection, FRR fast rerouting
- Support ZTP zero configuration deployment and USB quick start
- Support web management, CLI command line, SNMP, NETCONF/YANG remote operation and maintenance
- 4. Multi WAN and SD-WAN
- Support multi WAN port load balancing, intelligent routing, and link backup
- Compatible with Huawei iMaster NCE control and supports basic SD-WAN features (requires license)
Detailed description
| Item | Specification |
|---|---|
| Installation type | Rack |
| Chassis height [U] | 1 U |
| Dimensions without packaging (H x W x D) [mm(in.)] |
|
| Dimensions with packaging (H x W x D) [mm(in.)] | 175 mm x 550 mm x 710 mm (6.89 in. x 21.65 in. x 27.95 in.) |
| Weight with packaging [kg(lb)] | 7.6 kg (16.72 lb) |
| Weight without packaging [kg(lb)] | 5.05 kg (12.1 lb) |
| CPU | 1.4 GHz, 4 Cores |
| Memory | 2 GB |
| NAND Flash | 1 GB |
| Console port | RJ45 |
| RTC | Supported |
| LAN ports | 2 x GE SFP, 3 x GE electrical |
| WAN ports | 2 x GE SFP, 2 x GE electrical |
| Number of service board slots | 4 |
| MIC slots (default/maximum) | 0/0 |
| SIC slots (default/maximum) | 4/4 |
| WSIC slots (default/maximum) | 0/2 |
| XSIC slots (default/maximum) | 0/0 |
| Redundant MPUs | Not supported |
| RPS input | Not supported |
| PoE | Not supported |
| IP rating | IP20 |
| MTBF [years] | 55.27 years |
| MTTR [hours] | 2 hours |
| Availability | 0.9999958690 |
| Typical power consumption [W] | 26 W |
| Maximum power consumption [W] | 32 W |
| Power supply mode | AC built-in |
| Number of power modules | 2 |
| Rated input voltage [V] | 100 V to 240 V, 50 Hz/60 Hz |
| Input voltage range [V] | 90 V to 264 V, 47 Hz to 63 Hz |
| Maximum input current [A] | 2 A |
| Maximum output power [W] |
60 W/70 W To view the available maximum output power, run the display power command. |
| Redundant power supply | Dual power supplies in 1:1 backup mode |
| Types of fans | Built-in |
| Number of fan modules | 2 |
| Heat dissipation mode | Air cooling |
| Airflow | Left-to-right airflow |
| Noise at normal temperature (acoustic power) [dB(A)] | 54 dB(A) |
| Long-term operating temperature [°C(°F)] |
0°C to 45°C (32°F to 113°F) NOTE:
When the altitude is 1800–5000 m (5906–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH, non-condensing |
| Long-term operating altitude [m(ft.)] | < 5000 m (16404.2 ft.) |
| Storage temperature [°C(°F)] | -40°C to +70°C (-40°F to +158°F) |
| Overtemperature alarm | Supported |
