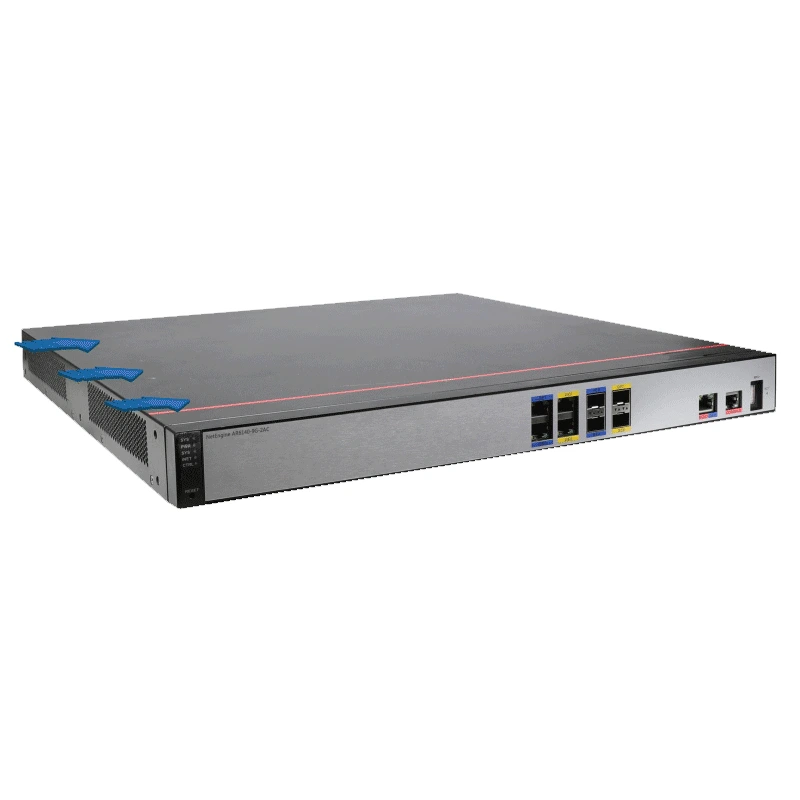

Enterprise Routers AR6140E-9G-2AC 02353UYT with 5*Ge RJ45, 4*Ge SFP
● Model No.: AR6140E-9G-2AC
● Size: 175 mm x 550 mm x 710 mm
● Product positioning: Enterprise headquarters/large branch export, park core, dedicated CPE, SD-WAN gateway, multi business integration gateway
● Place of Origin: Guangdong, China
● Warranty: 1years
● MOQ: 1 pieces
Application scenarios
1. Export gateway for medium-sized enterprise headquarters: This is its most core application scenario. As an export router for the headquarters of medium-sized enterprises (300-500 people), it connects multiple Internet links (such as two gigabit optical fibers) to provide Internet access for all users inside the enterprise. Its 2Gbps NAT forwarding performance is sufficient to support daily internet, email, video conferencing, and other traffic for all employees.
2. Large enterprise branch aggregation/export: In large enterprises with multiple branches, AR6140E-9G-2AC can be deployed at regional headquarters or large branches as the export gateway for the branch. It connects to the enterprise headquarters through SD-WAN or IPsec VPN upwards and aggregates multiple access switches within the branch downwards.
3. SD-WAN networking core node: Built in SD-WAN functionality, it can serve as the core node (Hub) or important branch node (Spoke) of an enterprise SD-WAN network, enabling intelligent routing and optimized connections between branches and headquarters, as well as between branches. Supports 1.5Gbps SD-WAN IPSec performance and 800Mbps SD-WAN typical performance.
4. Multi service integration access: integrates routing, switching VPN、 Integrating multiple functions such as security and MPLS. It can expand 5G, voice, firewall and other business cards through 4 SIC slots to meet the diversified development needs of enterprises in the future.
5. Government/finance/healthcare industry branch access: In government branches, bank branches, large clinics/branches and other scenarios, it can serve as a secure and reliable access router, establishing encrypted channels with higher-level institutions through IPsec VPN to ensure data transmission security. Supports 2Gbps IPsec performance
Core functional characteristics
- 1.9 GE full gigabit ports (optical/electrical hybrid, LAN can switch to WAN), flexible networking
- 2. Dual AC built-in power supply, high reliability, no need for external power module
- 3. ARM64 4-core+hardware encryption engine, powerful performance in IPSec/SD-WAN
- 4.4 SIC expansion slots, supporting 5G/4G, POS, E1/T1, voice and other modules
- 5. SD-WAN, MPLS, EVPN, SRv6 full stack enterprise features
Detailed description
| Item | Specification |
|---|---|
| Installation type | Rack |
| Chassis height [U] | 1 U |
| Dimensions without packaging (H x W x D) [mm(in.)] |
|
| Dimensions with packaging (H x W x D) [mm(in.)] | 175 mm x 550 mm x 710 mm (6.89 in. x 21.65 in. x 27.95 in.) |
| Weight with packaging [kg(lb)] | 7.75 kg (17.09 lb) |
| Weight without packaging [kg(lb)] | 5.35 kg (11.79 lb) |
| CPU | 1.4 GHz, 4 Cores |
| Memory | 4 GB |
| NAND Flash | 1 GB |
| Console port | RJ45 |
| RTC | Supported |
| LAN ports | 2 x GE SFP, 3 x GE electrical |
| WAN ports | 2 x GE SFP, 2 x GE electrical |
| Number of service board slots | 4 |
| MIC slots (default/maximum) | 0/0 |
| SIC slots (default/maximum) | 4/4 |
| WSIC slots (default/maximum) | 0/2 |
| XSIC slots (default/maximum) | 0/0 |
| Redundant MPUs | Not supported |
| RPS input | Not supported |
| PoE | Not supported |
| IP rating | IP20 |
| MTBF [years] | 64.50 years |
| MTTR [hours] | 2 hours |
| Availability | 0.9999964601 |
| Typical power consumption [W] | 22 W |
| Maximum power consumption [W] | 28 W |
| Power supply mode | AC built-in |
| Number of power modules | 2 |
| Rated input voltage [V] | 100 V to 240 V, 50 Hz/60 Hz |
| Input voltage range [V] | 90 V to 264 V, 47 Hz to 63 Hz |
| Maximum input current [A] | 2 A |
| Maximum output power [W] | 70 W |
| Redundant power supply | Dual power supplies in 1:1 backup mode |
| Types of fans | Built-in |
| Number of fan modules | 2 |
| Heat dissipation mode | Air cooling |
| Airflow | Left-to-right airflow |
| Noise at normal temperature (acoustic power) [dB(A)] | 49.9 dB(A) |
| Long-term operating temperature [°C(°F)] |
0°C to 45°C (32°F to 113°F) NOTE:
When the altitude is 1800–5000 m (5906–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH, non-condensing |
| Long-term operating altitude [m(ft.)] | < 5000 m (16404.2 ft.) |
| Storage temperature [°C(°F)] | -40°C to +70°C (-40°F to +158°F) |
| Overtemperature alarm | Supported |
