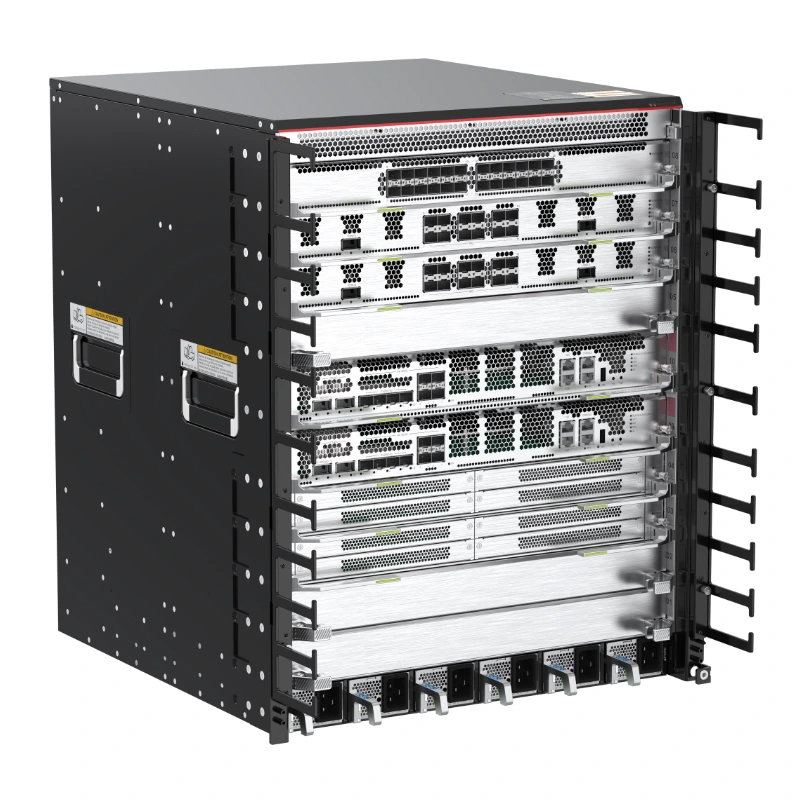

Enterprise Firewall USG12008-F Security AI Firewall with 400G ports
● Model No.: USG12008-F
● Size: 442×585.5×575mm
● Interface board support: Supports GE/10GE/40GE/100GE/400GE optical/electrical interface boards
● Main features: 2.4Tbps-level performance, distributed hardware acceleration, full component redundancy, and 100G/400G high-density interfaces.
● Application scenarios: Hyperscale data centers, core network operators, financial institutions, cloud service providers
● Warranty: 1 years
● MOQ: 1 pieces
Application scenarios
Hyperscale Data Center Boundary: Cloud service provider/IDC core egress, 400G interconnect, multi-tenant isolation, DDoS mitigation
Finance/Government Core Network: Headquarters/Ministry/Provincial Unit egress, Level 3 Information Security Protection, Security Domain Isolation, Encrypted Transmission
Carrier CGN/Backbone Network: Large-scale IPv4/IPv6 conversion, NAT for millions of users, log auditing
Cloud Security Resource Pool: VSYS multi-virtual system, providing independent firewalls, VPNs, and IPS services for multiple tenants
Large Enterprise/Campus Total Egress: Group Headquarters/Hyperscale Campus, 10 Gigabit Uplink, 160 Million Concurrency, Multi-Link Load Balancing
Core selling points
1. Superior Performance, Terabit-Level Protection
The entire machine boasts terabit-level processing capacity, supports all types of interface boards, and offers a maximum single-slot interface density of 18×100GE.
2. AI-Powered Intelligent Defense, Over 99% Detection Rate for Unknown Threats
Built-in AIE threat detection engine, achieving an accuracy rate of over 99% for unknown threat detection.
3. Carrier-Grade High Reliability
Supports dual-master 1+1 hot backup, dual-machine hot standby, NSR (Uninterrupted Routing), GR, and other reliability mechanisms.
4. Simplified Intelligent Operation and Maintenance
New Web UI with visualized threat presentation and support for multi-dimensional data drilling.
5. Rich Security Features
Integrates multiple security features including NAT, CGN, VPN (IPSec/SSL/GRE), and virtualization.
Supports L2TP VPN, IPSec VPN, GRE VPN, SSL VPN, etc.
Parameters
| parameter category | Detailed Specifications |
| Equipment form | 8 business slots, frame type, 13U rack |
| Overall machine performance | Firewall throughput of 800Gbps/2.4Tbps; IPS 100Gbps； SSL VPN 50Gbps |
| Concurrent connection | 160 million+; New connection 5 million/s |
| VPN capability | IPSec/SSL/GRE； Number of tunnels 200000+ |
| interface extension | Support GE/10GE/40GE/100GE/400GE optical/electrical interface boards |
| hardware architecture | Distributed multi-core+SPU security acceleration engine (hardware forwarding) |
| virtualization | Support VSYS multi virtual system (multi tenant) |
| reliability | Dual main control, dual power supply, dual fans, HRP primary/backup, NSR seamless switching |
| power supply | AC 220V / HVDC 240V / DC -48V； Double redundancy |
| Maximum Power Consumption | 2914W |
| Size/Weight | 442 × 585.5 × 575mm; empty configuration 39.8kg, full configuration 97.4kg |
| Operating temperature and humidity | -5℃ ~ +45℃； 5%~95% (non condensing) |
| management | Web/CLI/SSH/SNMP/cloud management; Built in Bluetooth local operation and maintenance |
