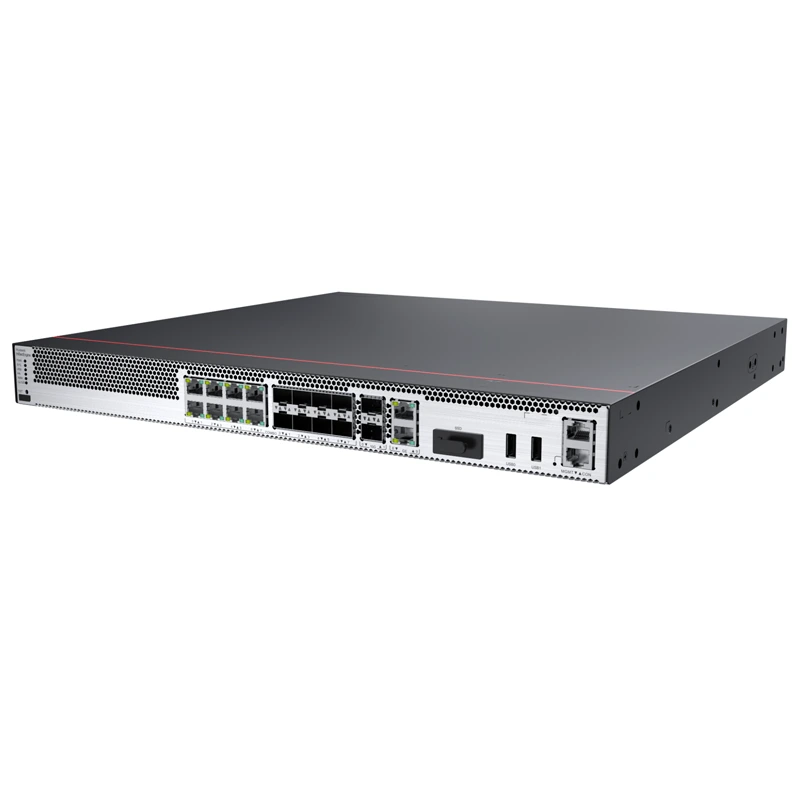

● Model No.: USG6525F
● Size: 442mm × 420mm × 43.6mm
● Interface configuration: 8×GE Combo (electrical/optical multiplexed) + 2×GE electrical + 2×10GE SFP+; 1×RJ45 Console; 2×USB 2.0
● Main features: It integrates NGFW, VPN, IPS, antivirus, URL filtering, and Anti-DDoS protection, and is equipped with an AI intelligent detection engine.
● Application scenarios: Small and medium-sized enterprises, industry branches, and commercial chains
● Warranty: 1 years
● MOQ: 1 pieces
Application scenarios
**Small and Medium-sized Enterprise Network Security Protection**
Acting as an enterprise egress firewall, it blocks external attacks (such as DDoS attacks and malware) while supporting remote work and branch office interconnection via VPN functionality.
**Education Industry Network Management**
Deployed at the campus network boundary, it enables deep inspection of egress traffic and control of internet access behavior (such as restricting game and video access), protecting student network security.
**Healthcare Industry Data Protection**
Safeguards patient data security, preventing data leakage or tampering; supports compliance requirements for information security standards, avoiding the risk of business downtime.
**Branch Office Interconnection**
Establishes secure tunnels via IPSec/SSL VPN, enabling encrypted data transmission between headquarters and branch offices, reducing WAN communication risks.
**Highly Sensitive Data Scenarios**
In finance, government, and other fields, combined with Huawei Qiankun Security Cloud services, it achieves edge-cloud collaborative defense to address advanced network threats (such as APT attacks).
Core selling points
1. AI-powered intelligent defense, accurate identification of unknown threats
2. Integrated security, protection across all scenarios
3. High-density interfaces, flexible networking
4. Simplified operation and maintenance, cost reduction and efficiency improvement
5. Highly reliable design, 24/7 business uptime
Parameters
| Parameter Category | Specification Details |
| Product Model | USG6525F |
| Product Form | 1U rack mounted |
| Firewall Performance | The overall throughput is 2Gbps; Maximum concurrent connections of 3 million; New connection 70000/s |
| Interface Configuration | 8 x GE Combo (electrical/optical reuse)+2 x GE electrical+2 x 10GE SFP+; 1×RJ45 Console; 2×USB 2.0 |
| Security Features | Status detection NAT、 Application recognition IPS、 Antivirus (CDE engine), URL filtering, APT defense Anti-DDoS |
| VPN Capabilities | IPSec VPN (high-performance); SSL VPN 300Mbps; Maximum SSL user 200 |
| Power Supply and Power Consumption | Dual AC power supply (100~240V); Maximum power consumption 242W |
| Dimensions / Weight | 442mm × 420mm × 43.6mm(1U); About 7.3kg |
| Environmental Adaptability | No hard drive: 0 ℃~45 ℃; Hard disk: 5 ℃~40 ℃; Humidity 5%~95% (no condensation) |
| Management Method | Web、CLI、SNMP、 Unified management of cloud management (Huawei Qiankun) and SecoManager |
| Reliability | Dual power redundancy, 6kV lightning protection, VRRP dual machine hot standby, link aggregation |
