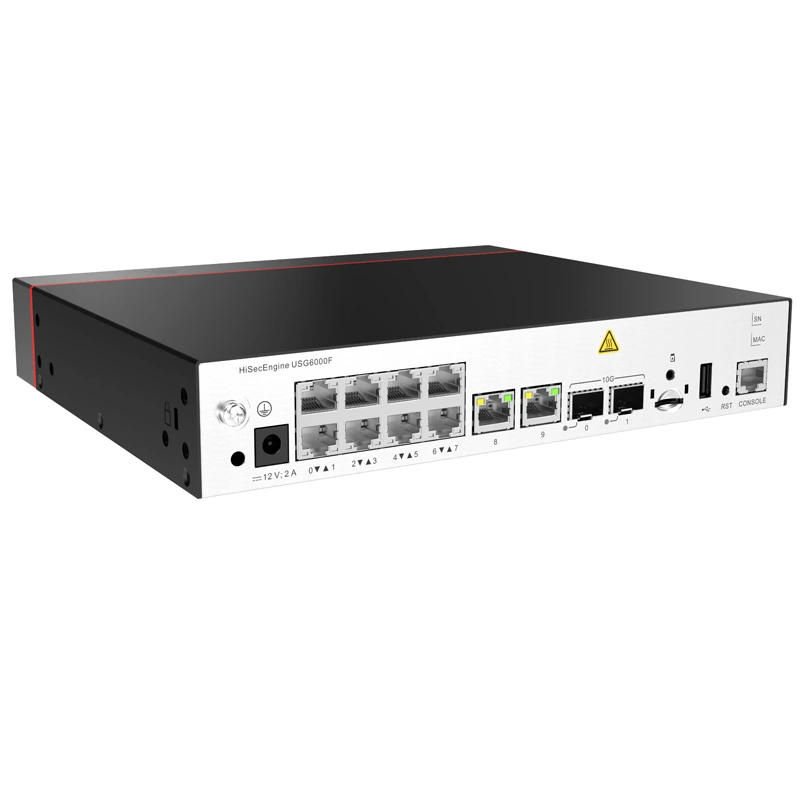

● Model No.: USG6530F
● Size: 442mm × 420mm × 43.6mm
● Interface configuration: 10×GE RJ45 Ethernet ports + 2×GE SFP optical ports; 1×RJ45 Console port; 1×USB 2.0 port.
● Main features: It integrates NGFW, VPN, IPS, antivirus, URL filtering, and Anti-DDoS protection, and is equipped with an AI intelligent detection engine.
● Application scenarios: Small and medium-sized enterprises, industry branches, and commercial chains
● Warranty: 1 years
● MOQ: 1 pieces
Application scenarios
Core for Small Businesses/Offices: Serving as the enterprise's internet gateway, a single device handles routing, security, and internet access management, reducing procurement and maintenance costs.
Industry Branches/Chain Stores: Widely used in financial institutions, convenience stores, chain restaurants, etc. The DL/DPL models support LTE uplink and can serve as wired line backup. The DPL's PoE port can directly power IP phones or cameras, solving all problems with a single network cable.
Remote/Mobile Offices: With built-in LTE and VPN functions, it can serve as a secure access gateway for temporary offices, quickly connecting to the enterprise intranet.
Core selling points
All-in-One Minimalist Design: A single device integrates routing, switching, and security capabilities, reducing CAPEX by 30%.
AI Intelligent Threat Defense: Built-in AIE threat detection engine and CDE virus detection engine, achieving up to 95% accuracy in detecting unknown threats.
Fine-grained Business Control: Supports identification of 6000+ applications, enabling access control and bandwidth management based on application functions.
Flexible VPN Networking: Supports multiple VPN technologies such as IPSec VPN, SSL VPN, and GRE, and supports Chinese national cryptographic algorithms (SM2/SM3/SM4).
Comprehensive Security Features: Integrates Intrusion Prevention System (IPS), Antivirus (AV), URL filtering, Anti-DDoS, and Data Loss Prevention (DLP) functions.
Parameters
| parameter category | Specification Details |
| Product Model | USG6530F (desktop type) |
| product form | 1U rack/desktop type |
| Firewall performance | The overall throughput of the machine is 4Gbps; Maximum concurrent connections of 4 million; New connection 100000/s |
| interface configuration | 10 x GE RJ45 electrical ports+2 x GE SFP optical ports; 1×RJ45 Console; 1×USB 2.0 |
| safety function | Status detection NAT、 Application recognition IPS、 Antivirus (CDE engine), URL filtering, APT defense Anti-DDoS |
| VPN capability | IPSec VPN (high-performance); SSL VPN 300Mbps; Maximum SSL user 200 |
| Power supply and power consumption | Single AC power supply (100~240V); Maximum power consumption 242W |
| Size/Weight | 250mm × 210mm × 43.6mm(1U); About 7.3kg |
| environmental adaptability | No hard drive: 0 ℃~45 ℃; Hard disk: 5 ℃~40 ℃; Humidity 5%~95% (no condensation) |
| management style | Web、CLI、SNMP、 Unified management of cloud management (Huawei Qiankun) and SecoManager |
| reliability | Dual power redundancy (optional), 6kV lightning protection, VRRP dual machine hot standby, link aggregation |
