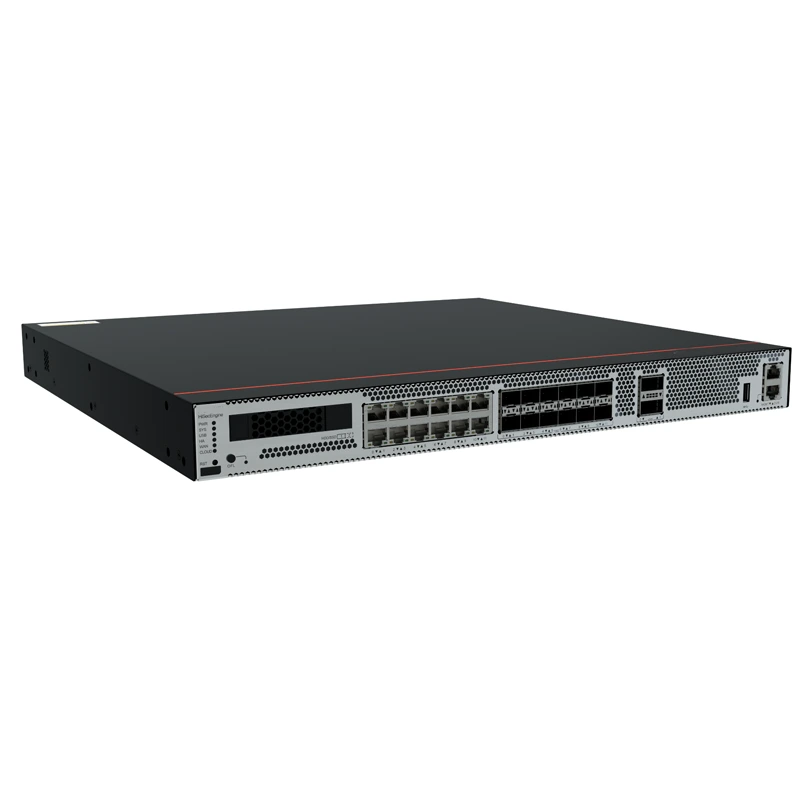

● Model No.: USG6630E
● Size: 442×420×43.6mm
● Interface configuration: 2 x 40GE QSFP+ + 12 x 10GE SFP+ + 12 x GE RJ45 + 1 x USB 3.0
● Main features: The firewall has a throughput of 30Gbps and comes standard with 4×40GE QSFP+ ultra-high-density interfaces.
● Application scenarios: Ultra-large group headquarters, core exit of large cloud data center, backbone network interconnection node
● Warranty: 1 years
● MOQ: 1 pieces
Application scenarios
Large Enterprise and Campus Network Core: Serving as the core firewall for large enterprise headquarters or large campuses, it leverages its 40GE interfaces to aggregate traffic from multiple core switches or aggregation devices, providing high-performance north-south security protection and bandwidth management.
Medium-Sized Data Center Edge: Located at the edge of small- to medium-sized data centers or large data centers, it acts as a data center firewall, providing high-performance north-south traffic protection to prevent external attacks and ensure the secure and stable operation of cloud services.
Government, Finance, Education, and Other Industry Backbone Networks: Meeting the stringent requirements of these industries for network security compliance, high performance, and high reliability, it provides secure VPN encrypted channels and unified security policy control for interconnecting branch offices across geographical regions.
ISP/IDC Service Providers: Serving as a customer-edge firewall for managed data centers or internet service providers, it provides high-performance, scalable security services to multiple customers.
Core selling points
1. 40G high-density ultra-high-speed interconnection
2. AI-powered intelligent threat defense (three-engine architecture)
3. Hardware-level full-service acceleration
4. Ultra-large-scale virtualization and high reliability
5. Cloud-edge collaborative simplified operation and maintenance
Parameters
| parameter item | Specification Description |
| Product Series | HiSecEngine USG6600E series |
| Device Type | AI Firewall/Next Generation Firewall |
| Product Model | USG6630E-AC (part code: 02352FQA) |
| Physical dimensions (W x D x H) | 442 mm x 420 mm x 44 mm (1U) |
| weight | About 7.6 kg |
| Fixed interface | 2 x 40GE QSFP+ + 12 x 10GE SFP+ + 12 x GE RJ45 + 1 x USB 3.0 |
| local storage | Optional 2.5-inch SATA hard drive (240GB SSD/1TB HDD) for log and report storage, supports hot swapping |
| Power Specifications | Standard dual power supply, supporting 1+1 redundancy; AC 100-240V,600W; DC -48--60V,350W |
| Working environment temperature | 0°C ~ 45°C |
| Working environment humidity | 5% RH to 95% RH (non condensing) |
