Brindamos a los clientes varios productos de comunicación a precios razonables y productos y servicios de alta calidad.

Controlador de acceso para mainframe AC6507S 02354GJM (10 puertos GE, 2 puertos SFP+ 10 GE, con adaptador CA/CC)

Marca:

muestras:

$2000.0/pieza | Mín. orden : 1 pieza

Envío:

Apoyo transporte marítimo

Lugar de origen:

Porcelana

Pagos:

L/C... D/A... D/P... T/T... Western Union... MoneyGram... OA

plazo de entrega:

1-10 (piezas): 3 (días), 11-100 (piezas): 7 (días), 101-500 (piezas): 15 (días),> 500 (piezas): para ser negociado (días)

Personalización:

Logotipo personalizado (Min. Pedido: 10000 juegos), embalaje personalizado (mín. Pedido: 10000 juegos), personalización gráfica (mín. Pedido: 10000 juegos)

Número de modelo:

AC6507S

consulta

Escribe una reseña

Dimensiones sin embalaje

43.6 mm x 250 mm x 210 mm

USB

1 x USB 2.0 (tipo de host A) Puerto

Puerto de consola

RJ45

Conjunto de chips

País de origen

porcelana

Almacenamiento

Nand flash 1GB

solicitud

Consumo máximo de energía [W]

23.58 W

Lugar de origen

Guangdong... China

Tipo

Módulo wifi

제품 설명

Basic information about the AC6507S

목	Details
설명	AC6507S mainframe (10GE ports, 210GE SFP+ ports, with the AC/DC adapter)
Part Number	02354GJM
모델	AC6507S
subseries	AC6000
First supported version	V200R021C00

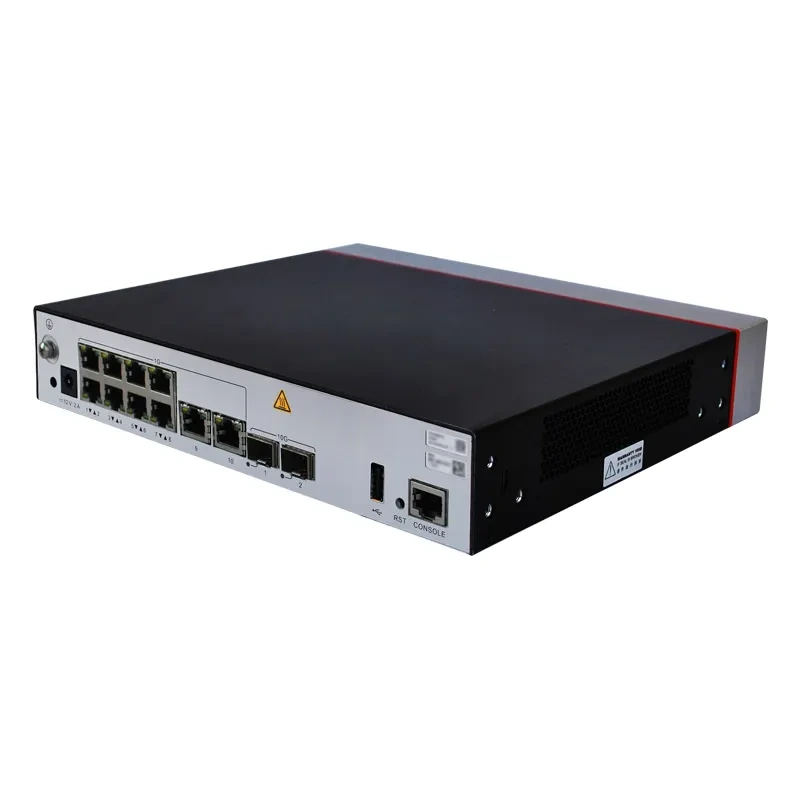

AC6507S 02354GJM mainframe (10*GE ports, 2*10GE SFP+ ports, with the AC/DC adapter) Access controller

1	GE	2	DC 12V
3	10GE	4	USB
5	CONSOLE	-	-

Ports on the AC6507S

Port	Connector Type	설명	Available Components
GE	RJ45	10 x 10/100/1000BASE-T Ethernet electrical ports	Network cable
10GE	SFP+	2 x 10GE SFP+ Ethernet optical ports	Optical module
DC 12V	DC connector	DC input connector	12 V DC power adapter
CONSOLE	RJ45	Console port	Console cable
USB	USB 2.0 Type A	USB port connecting to a USB flash drive or other storage device to extend the storage space.	USB storage device

기술 사양

목	사양
Installation Type	Rack Desk Wall
Dimensions without packaging (H x W x D) [mm(in.)]	Basic: 43.6 mm x 250 mm x 210 mm (1.72 in. x 9.84 in. x 8.27 in.) Maximum: 43.6 mm x 250 mm x 215 mm (1.72 in. x 9.84 in. x 8.46 in.)
Weight without packaging [kg(lb)]	1.9킬로그램
저장	Nand FLASH 1GB
Console port	RJ45
Maximum power consumption [W]	23.58 W
Maximum heat dissipation [BTU/hour]	80.45 BTU/hour
Power supply mode	DC adapter
Service port surge protection [kV]	6 kV in common mode
Types of fans	없음
Maximum number of physical ports on the entire device	2 x 10GE (SFP+) + 10 x GE (RJ45)
Long-term operating temperature [°C(°F)]	0°C에서 45°C (32°F에서 113°F) (If the altitude is in the range of 1800 m to 5000 m, the temperature decreases by 1°C or 1.8°F every time the altitude increases by 300 m.)
Storage temperature [°C(°F)]	–40°C에서 +까지70°C (–40°F에서 +까지158°F)
Long-term operating relative humidity [RH]	5% RH to 95% RH, non-condensing
Long-term operating altitude [m(ft.)]	–60 m to +5000 m (–196.85 ft to +16404.20 ft)
Atmospheric pressure [kPa]	53kPa - 106kPa ETSI 300 019-2-3
Ground	Ground
USB	1 x USB 2.0 (host type A) port
MTBF [year]	50 년도
MTTR [hour]	2 hour

왜 우리를 선택해야 하나요?

A)Stable and Wide Supply Chain Syst14

we have established a perfect supply chain system to provide a wide range of products with reliable quality and reasonable price.

B)Competitive Price

We ensure the most competitive price. Warm reminders here, telecommunications equipment configuration is quite different, the price shown on the website is only for reference. After configuration and quantity been confirmed, we will give the final most competitive discounted price.

C) Safe and Easy Payment Solutions

T/T, 신용카드 등 다양한 결제수단을 지원합니다.

D)Fast Delivery and Shipping

빠르고 전문적이며 신뢰할 수 있는 배송.

E)Complete and powerful pre-sales and after-sales service system

To provide customers with professional pre-sales service, as well as after-sales technical services

F)More Than 20 Years Industry Experience

we have been engaged in this industry more than 20 years, we have rich industry experience.

FAQ

Q: 주요 제품은 어떤가요?

A: 당사 제품 라인에는 스위치, 라우터, OLT, SDH가 포함됩니다. 네트워크 모듈, 인터페이스 카드, 보안 방화벽, 무선 AP 등

질문: 어떤 브랜드의 제품을 판매하시나요?

A:We are devoted to offering Huawei, ZTE, Cisco, H3C， HP, Dell, Lenovo, Ruijie and other network equipment brands

Q: 무료 샘플을 받을 수 있나요?

A: 죄송하지만 제공되지 않습니다. 하지만 비용을 지불하시면 이용하실 수 있습니다.

질문: 어떤 무역 용어를 사용하시나요?

답변: 당사는 EXW, FOB, CIF, CNF 또는 귀하의 요청에 따라 서비스를 제공합니다.

질문: 배송 시간은 어떻게 되나요?

A: 일반적으로 보증금을 받은 후 1~10일이 소요됩니다. 구체적인 배송 시간은 품목과 주문 수량에 따라 달라집니다.

질문: 귀사는 모든 제품을 테스트하시나요?

A: 네, 배송 전에 전문 엔지니어가 모든 기기를 테스트합니다.
