ES02VSTSA 03030QHL S7700 Series Cluster Switching System Service Unit for h w

ES02VSTSA-Cluster Switching System Service Unit



Version Mapping

Table 1 Switch chassis and software versions matching the card

Card Name	S7700 Chassis
ES02VSTSA	S7703 and S7703 PoE chassis: not supported S7706 and S7712 chassis: This card is supported in V200R001C00 and later versions, and is sold since July 1, 2013. S7706 PoE chassis: This card is supported in V200R013C00 and later versions.

Introduction

The ES02VSTSA provides four 16GE optical ports, which can only be used for cluster connection and cannot be used for data transmission and switching.

Multiple switches can be connected through ports on the ES02VSTSA cards to set up a switching domain and function as one logical device. You can manage all the switches in a switching domain on the master switch.

The ES02VSTSA can be installed in the subcard slot of ES0D00SRUA00, ES1D2SRUAC00 and ES0D00SRUB00. To configure the CSS service, install ES02VSTSA cards on both SRUs in a chassis.

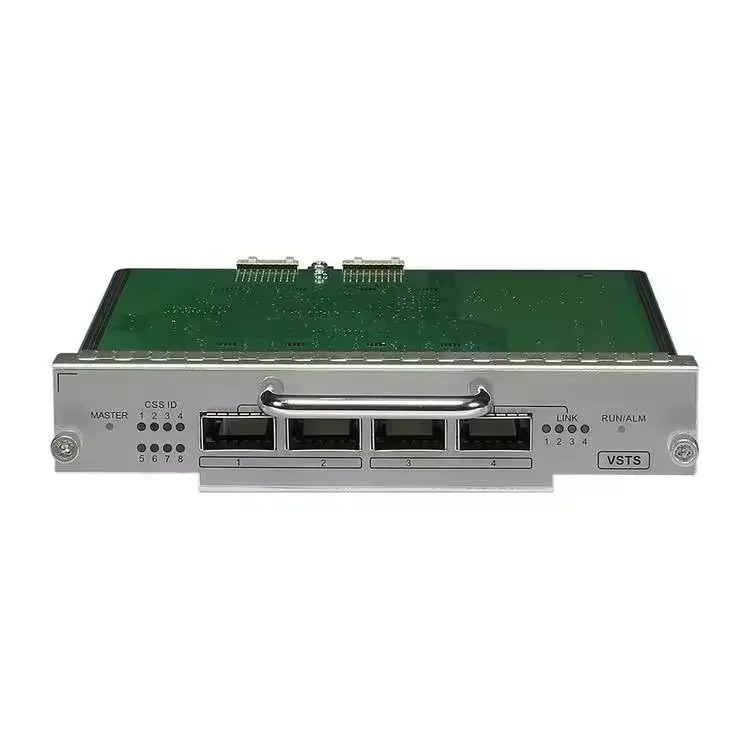

Figure 1 Appearance of the ES02VSTSA

Specifications

Table 2 Specifications of the ES02VSTSA

Item	Description
Physical specifications	Dimensions (H x W x D): 35.1 mm x 170.0 mm x 243.7 mm (1.38 in. x 6.69 in. x 9.59 in.) Weight: 1 kg (2.2 lb) Maximum power consumption: 12 W
