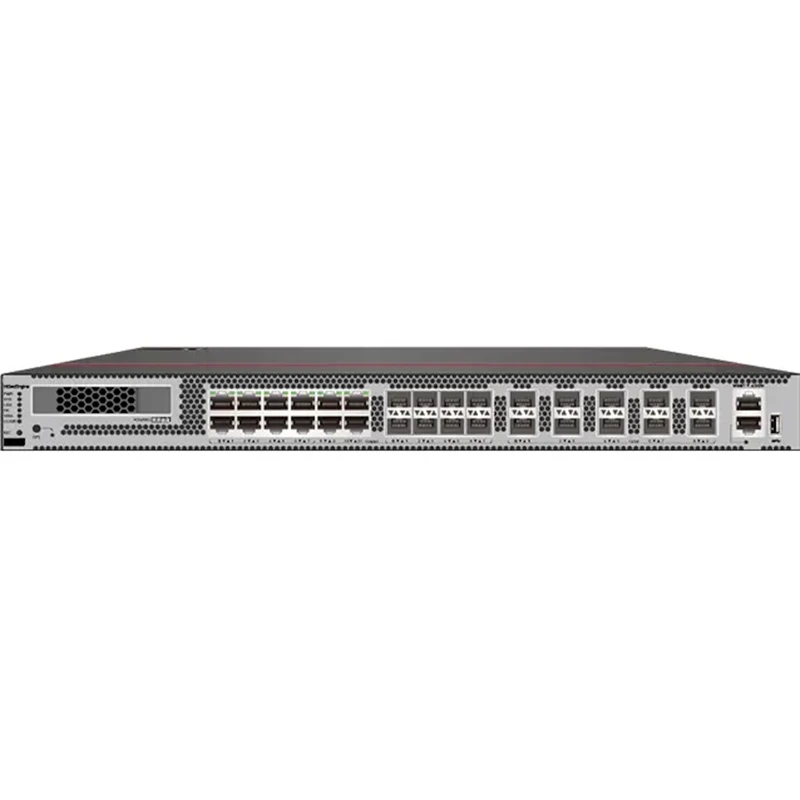

HiSecEngine USG6685F Security AI Firewall with 10×10GE ports
● Model No.: USG6685F
● Size: 442mm × 420mm × 43.6mm
● Interface configuration: 8*GE COMBO + 4*GE RJ45 + 10*10GE SFP+ ,2 AC POWER
● Main features: Multiple AI security features including Intrusion Prevention System (IPS), Antivirus (AV), and URL filtering.
● Application scenarios: Large enterprise core egress, data center security gateway, or carrier network edge protection
● Warranty: 1 years
● MOQ: 1 pieces
Application scenarios
Large Enterprises/Group Headquarters: Core egress firewall, multi-carrier 10 Gigabit backbone interconnection.
Large Data Center Boundaries: North-south traffic protection, secure isolation of server areas.
Multi-Branch Hubs: 20,000 IPSec tunnels, carrying network-wide VPN encryption and SD-WAN services.
Finance/Government/Carrier Services: High security level, Level 3 Information Security Compliance Standard, core backbone link protection.
Core selling points
22.5G Threat Throughput: Top-tier performance across the board, with no performance degradation even when all services are running, meeting the high-concurrency needs of data centers and backbone networks.
30G IPSec VPN: Supports ultra-large-scale branch/cloud interconnection, stably carrying 20,000 tunnels.
1U Compact Design: High-density ports (10×10GE + 8×GE + 4×GE), extremely high space utilization.
AI Engine: 95%+ detection rate for unknown threats, ransomware, and APTs.
Intelligent Policy Self-Learning: Automatically optimizes security policies, reducing operational complexity.
Cloud-Based Intelligence Linkage: Real-time defense against 0-day vulnerabilities and the latest virus variants.
Dual Power Supply, Hot-swappable Fans, Hardware Bypass: Guaranteed 99.999% availability.
VRRP/M-LAG/Cluster: Network-level redundancy, zero service interruption.
Parameters
| parameter category | Specification Details |
| model | HiSecEngine USG6685F |
| form | 1U rack mounted |
| fixed port | 10 × 10GE SFP+(10G optical) |
| 8 x GE COMBO (RJ45/SFP switchable) | |
| 4 x GE RJ45 (Gigabit) | |
| 1×Console, 1×MGMT, 1×USB3.0 | |
| expansion slot | No (fixed port design) |
| Firewall throughput | FW+SA: 26.5 Gbps |
| NGFW: 25 Gbps | |
| Threat Protection (IPS+AV): 22.5 Gbps | |
| VPN performance | IPsec VPN: 30 Gbps |
| Maximum IPsec tunnel: 20000 | |
| SSL VPN: 3 Gbps | |
| Maximum SSL users: 10000 | |
| Concurrent connection | 20 million |
| make new connection | 400000 CPS |
| security policy | 100000 pieces |
| Virtualization (VSYS) | 1024 pieces |
| Memory/Storage | 32GB DDR4 ECC/optional 2.5 "SATA SSD (240GB~3.84TB) hot swappable |
| power supply | Dual AC power supply (1+1 redundant) 100-240V AC |
| heat dissipation | 3+1 hot swappable intelligent fan |
| Size (W × D × H) | 442 × 420 × 43.6 mm (1U) |
| weight | ~7.3 kg |
| Maximum Power Consumption | 183W |
| working environment | 0℃ ~ +45℃ |
