LSS7G48SX6E0-48-Port 03033ATG S7700 Series Switch GE SFP Interface Card (X6E, SFP) for h w 1

LSS7G48SX6E0-48-Port 03033ATG S7700 Series Switch GE SFP Interface Card (X6E, SFP) for h w 2

LSS7G48SX6E0-48-Port 03033ATG S7700 Series Switch GE SFP Interface Card (X6E, SFP) for h w

Samples:

$1000.0/piece | Min. order : 1 piece

Shipping:

Support Sea freight

Place of Origin:

China

Payments:

L/C,D/A,D/P,T/T,Western Union,MoneyGram,OA

Lead Time:

1-10(pieces):3(days),11-100(pieces):7(days),101-500(pieces):15(days),>500(pieces):To be negotiated(days)

Customization:

Customized logo (Min. Order: 10000 sets),Customized packaging (Min. Order: 10000 sets),Graphic customization (Min. Order: 10000 sets)

Brand Name:

Model Number:

LSS7G48SX6E0

Inquiry

Write a Review

Dimensions (H x W x D)

35.1 mm x 397.2 mm x 430.4 mm

Weight

3.2 kg (7.05 lb)

Maximum power consumption

147 W

Part Number

03033ATG

Use

other

Place of Origin

Guangdong, China

Type

Interface Card

Product Description

LSS7G48SX6E0-48-Port GE SFP Interface Card (X6E, SFP)

Version Mapping

Table 1 Switch chassis and software versions matching the card

Card Name	S7700 Chassis
LSS7G48SX6E0	S7703 chassis: supported in V200R013C02 and later versions S7703 PoE, S7706, S7706 PoE, and S7712 chassis: supported in V200R019C00 and later versions

Card Name

S7700 Chassis

LSS7G48SX6E0

S7703 chassis: supported in V200R013C02 and later versions

S7703 PoE, S7706, S7706 PoE, and S7712 chassis: supported in V200R019C00 and later versions

Introduction

The LSS7G48SX6E0 provides high performance, large entry sizes, and a large buffer for data switching. This card is highly integrated and has a large port density.

The LSS7G48SX6E0 can be installed in:

Slots 01 to 03 in an S7703 or S7703 PoE chassis.
Slots 01 to 06 in an S7706 or S7706 PoE chassis.
Slots 01 to 12 in an S7712 chassis.

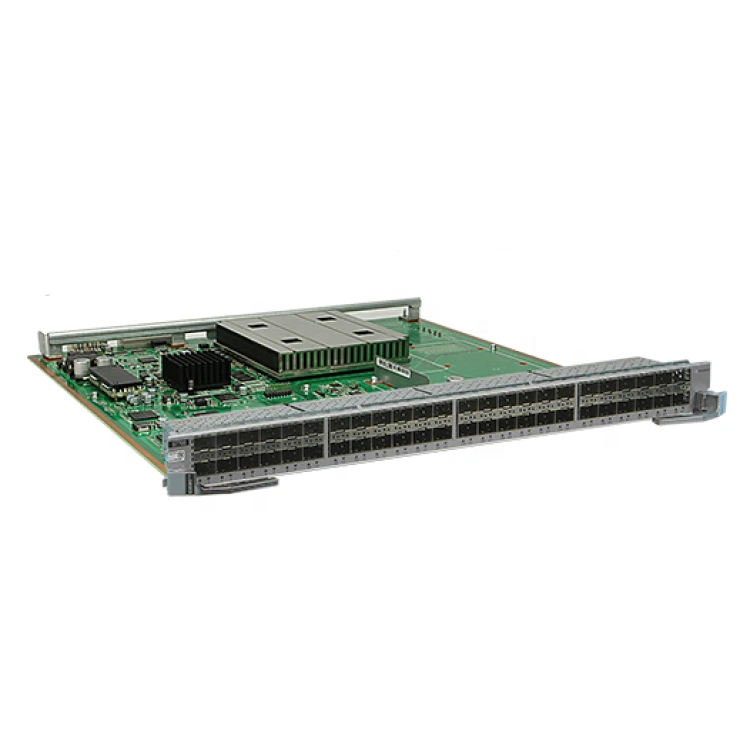

Figure 1 Appearance of the LSS7G48SX6E0

LSS7G48SX6E0-48-Port 03033ATG S7700 Series Switch GE SFP Interface Card (X6E, SFP) for h w

Functions

The LSS7G48SX6E0 provides the following functions:

Communicates with the MPU and works under the control of the MPU.
Searches for routes and destination addresses of data packets for forwarding.
Forwards data packets.

Table 2 Functions of the LSS7G48SX6E0

Function	Description
Basic functions	Provides forty-eight GE optical ports for data access and switching.
Distributed forwarding	Performs concurrent data forwarding using a distributed data plane.
Hot swapping	The LSS7G48SX6E0 is hot swappable.

Specifications

Table 3 Specifications of the LSS7G48SX6E0

Item	Description
Physical specifications	Dimensions (H x W x D): 35.1 mm x 397.2 mm x 430.4 mm (1.38 in. x 15.64 in. x 16.95 in.) Weight: 3.2 kg (7.05 lb) Maximum power consumption: 147 W

Item

Description

Physical specifications

Dimensions (H x W x D): 35.1 mm x 397.2 mm x 430.4 mm (1.38 in. x 15.64 in. x 16.95 in.)

Weight: 3.2 kg (7.05 lb)
Maximum power consumption: 147 W
