LSS7SRUHX100 03032YFH S7700 Series S7706/S7706 PoE/S7712 Main Control Unit H (X1) 1

LSS7SRUHX100 03032YFH S7700 Series S7706/S7706 PoE/S7712 Main Control Unit H (X1) 2

LSS7SRUHX100 03032YFH S7700 Series S7706/S7706 PoE/S7712 Main Control Unit H (X1)

Samples:

$1000.0/piece | Min. order : 1 piece

Shipping:

Support Sea freight

Place of Origin:

China

Payments:

L/C,D/A,D/P,T/T,Western Union,MoneyGram,OA

Lead Time:

1-10(pieces):3(days),11-100(pieces):7(days),101-500(pieces):15(days),>500(pieces):To be negotiated(days)

Customization:

Customized logo (Min. Order: 10000 sets),Customized packaging (Min. Order: 10000 sets),Graphic customization (Min. Order: 10000 sets)

Brand Name:

Model Number:

LSS7SRUHX100

Inquiry

Write a Review

Dimensions (H x W x D)

35.1 mm x 397.2 mm x 430.4 mm (1.38 in. x 15.64 in. x 16.95 in.)

Weight

3.43 kg (7.56 lb)

Certification

CCC

Maximum power consumption

126 W

Part Number

03032YFH

Use

other

Place of Origin

Guangdong, China

Type

Main Control

Product Description

LSS7SRUHX100-S7706/S7706 PoE/S7712 Main Control Unit H (X1)

Version Mapping

Table 1 Switch chassis and software versions matching the card

Card Name	S7700 Chassis
LSS7SRUHX100	S7703 and S7703 PoE chassis: not supported S7706, S7706 PoE, and S7712 chassis: supported in V200R019C10 and later versions

Card Name

S7700 Chassis

LSS7SRUHX100

S7703 and S7703 PoE chassis: not supported

S7706, S7706 PoE, and S7712 chassis: supported in V200R019C10 and later versions

Introduction

The LSS7SRUHX100 can be installed in:

Slots 07 and 08 in an S7706 or S7706 PoE chassis.
Slots 13 and 14 in an S7712 chassis.

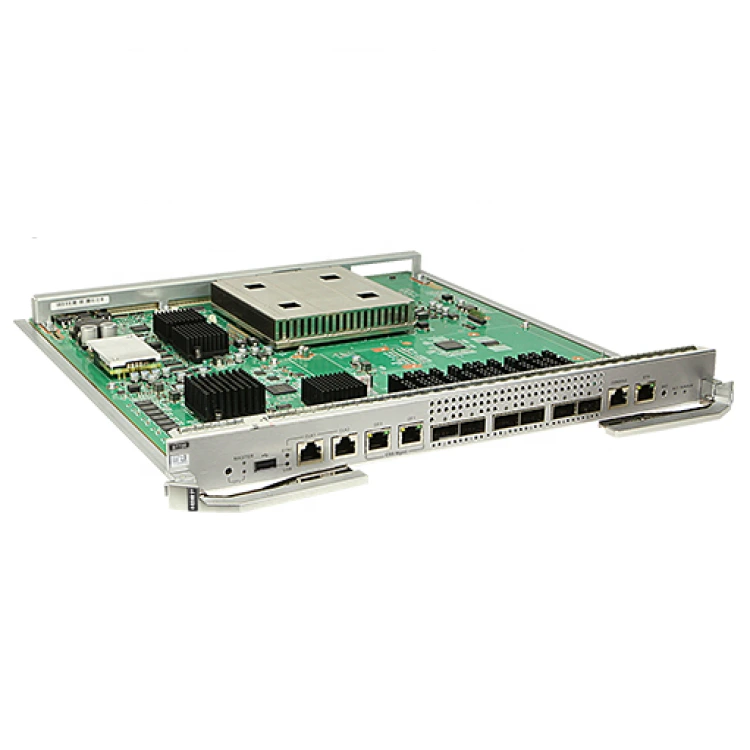

Figure 1 Appearance of the LSS7SRUHX100

LSS7SRUHX100 03032YFH S7700 Series S7706/S7706 PoE/S7712 Main Control Unit H (X1) for h w

Table 2 Functions of the LSS7SRUHX100

Function	Description
Basic functions	The LSS7SRUHX100 is the system control and management unit for the S7712, S7706, and S7706 PoE. It integrates the main control unit, switching unit, and system maintenance unit.
Distributed forwarding	Performs concurrent data forwarding using a distributed data plane.
Memory	4 GB
NOR Flash	64 MB
NAND Flash	2 GB The system configuration data, startup files, system software package, and system logs are saved in the NAND Flash by default.
OAM	The LSS7SRUHX100 provides enhanced services such as Operation, Administration and Maintenance (OAM) and Bidirectional Forwarding Detection (BFD). 802.1ag: identifies, detects, and sends continuity check (CC) packets. Multiprotocol Label Switching (MPLS OAM): identifies, detects, and sends MPLS OAM packets. OAM UNCFG_MEP.
Redundancy backup	Supported MPUs are mandatory for switches. You can configure one or two MPUs for each switch. The MPU can be installed in either MPU slot of a switch. An MPU consists of the control plane, management plane, and data forwarding plane. When two MPUs are installed, the two MPUs work in hot standby mode on the control and management planes and work in load balancing mode on the data forwarding plane. MPUs monitor each other. When the active MPU is faulty, the standby MPU is automatically switched to be the active MPU to ensure service continuity.
Hot swapping	Supported Before removing the active LSS7SRUHX100, perform an active/standby switchover.

Specifications

Table 3 Specifications of the LSS7SRUHX100

Item	Description
Physical specifications	Dimensions (H x W x D): 35.1 mm x 397.2 mm x 430.4 mm (1.38 in. x 15.64 in. x 16.95 in.) Weight: 3.43 kg (7.56 lb) Maximum power consumption: 126 W

Item

Description

Physical specifications

Dimensions (H x W x D): 35.1 mm x 397.2 mm x 430.4 mm (1.38 in. x 15.64 in. x 16.95 in.)

Weight: 3.43 kg (7.56 lb)
Maximum power consumption: 126 W
