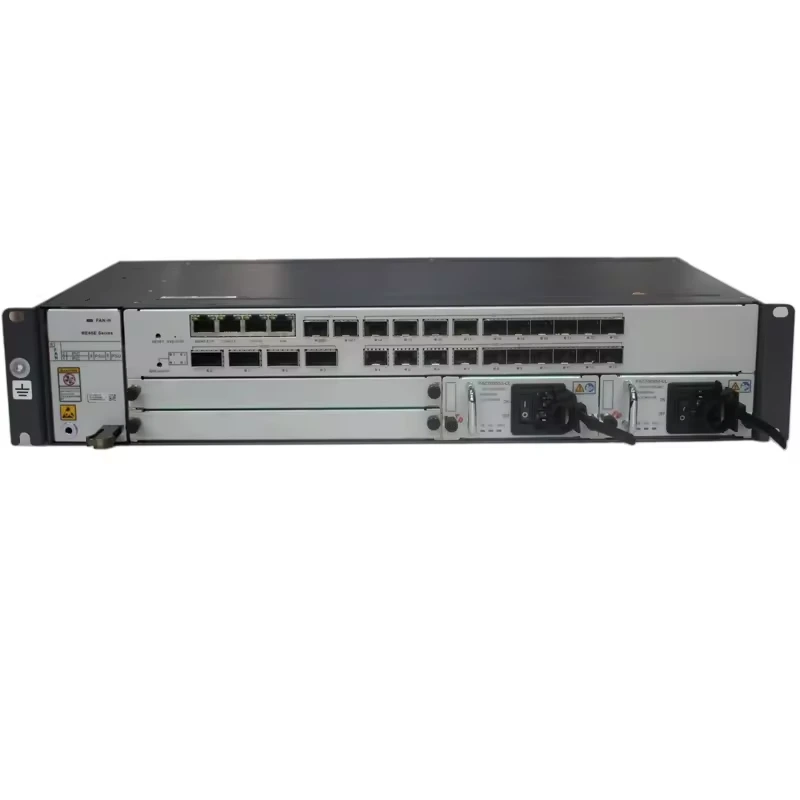

NE20E-S2E 02350BUN Ne20e Series Universal Service Routers
5.0
Samples:
$4000/piece | Min. order : 1 piece
Shipping:
Support Sea freight
Place of Origin:
China
Payments:
L/C,D/A,D/P,T/T,Western Union,MoneyGram,OA
Lead Time:
1-10(pieces):3(days),11-100(pieces):7(days),101-500(pieces):15(days),>500(pieces):To be negotiated(days)
Customization:
Customized logo (Min. Order: 10000 sets),Customized packaging (Min. Order: 10000 sets),Graphic customization (Min. Order: 10000 sets)
Brand Name:
hw
Model Number:
NE20E
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Weight
11 kg
Use
other
Place of Origin
Guangdong, China
Type
Router
Products Description
NetEngine 20E-S Series
The NetEngine 20E-S series is suitable for enterprise networks of various types and scales. Powered by H w’s proprietary Network Processing (NP) chips , and packed with innovative technologies — such as Internet Protocol (IP) hard pipe, IP Flow Performance Measurement (FPM), and Bidirectional Forwarding Detection (BFD) — NetEngine 20E-S routers provide high performance transmission, high-quality private line services, and accurate fault detection and location. With 99.999% reliability achieved through comprehensive hardware and software reliability technologies, a Software-Defined Networking (SDN) architecture enables balanced traffic distribution, improving network bandwidth utilization. And with an operating temperate spanning –40ºC to 65ºC, the NetEngine 20E-S series is designed to withstand even the harshest environments.
Details Images
Specification
|
Item
|
NE20E-S2E
|
NE20E-S2F
|
NE20E-S4
|
NE20E-S8
|
NE20E-S16
|
NE20E-S8A
|
NE20E-S16A
|
||||||
|
Switching Capacity
|
160 Gbit/s
|
320 Gbit/s
|
480 Gbit/s
|
960 Gbit/s
|
960 Gbit/s
|
2 Tbit/s
|
2 Tbit/s
|
||||||
|
Forwarding Performance
|
120 Mpps
|
160 Mpps
|
360 Mpps
|
360 Mpps
|
360 Mpps
|
452 Mpps
|
452 Mpps
|
||||||
|
Fixed Ports
|
2 x 10 GE (SFP+) and 24 x GE (SFP)
|
4 x 10 GE (SFP+) and 40 x GE (SFP)
|
-
|
-
|
-
|
-
|
-
|
||||||
|
Number of Slots
|
2 PICs
|
2 PICs
|
2 MPUs ;
1 NSP; 4 PICs |
2 MPUs;
2 NSPs; 8 PICs |
2 MPUs;
2 NSPs; 16 PICs |
2 MPUs;
2 NSPs; 8 PICs |
2 MPUs;
2 NSPs; 16 PICs |
||||||
|
Dimensions (H x W x D)
|
89 mm x 442 mm x 220 mm (2U)
|
89 mm x 442 mm x 220 mm (2U)
|
132 mm x 442 mm x 220 mm (DC, 3U) ;
175 mm x 442 mm x 220 mm (AC, 4U) |
222 mm x 442 mm x 220 mm (DC, 5U) ;
264 mm x 442 mm x 220 mm (AC, 6U) |
353 mm x 442 mm x 220 mm (8U)
|
222 mm x 442 mm x 220 mm (DC, 5U) ;
264 mm x 442 mm x 220 mm (AC, 6U) |
353 mm x 442 mm x 220 mm (8U)
|
||||||
|
Power Consumption
(in full configuration) |
195W (DC)
219W (AC) |
309W (DC)
335W (AC) |
398W (DC)
456W (AC) |
645W (DC)
703W (AC) |
696W (DC)
740W (AC) |
645W (DC)
703W (AC) |
708W (DC)
752W (AC) |
||||||
|
Weight (in full configuration)
|
9.3 kg (DC)
10.3 kg (AC) |
9.4 kg (DC)
10.4 kg (AC) |
13.7 kg (DC)
18.1 kg (AC) |
22.3 kg (DC)
27.0 kg (AC) |
34.0 kg (DC)
36.0 kg (AC) |
22.3 kg (DC)
27.0 kg (AC) |
34.0 kg (DC)
36.0 kg (AC) |
||||||
|
Interface Type
|
100G/40 GE, 10 GE, GE/FE, OC-3c/STM-1c POS, OC-12c/STM-4c POS, Channelized OC-3/STM-1 POS, and E1/CE1
|
|
|
|
|
|
|
||||||
|
Operating Temperature
|
-5°C to 65°C
|
-5°C to 65°C
|
–40°C to 65°C
|
–40°C to 65°C
|
–40°C to 65°C
|
–40°C to 65°C
|
–40°C to 65°C
|
||||||
